Front Wheels
Removal and Installation
See Figure 9-49.
!
WARNING
1. Park the mower safely. (See “Park Mower Safely” on
page 1-7.)

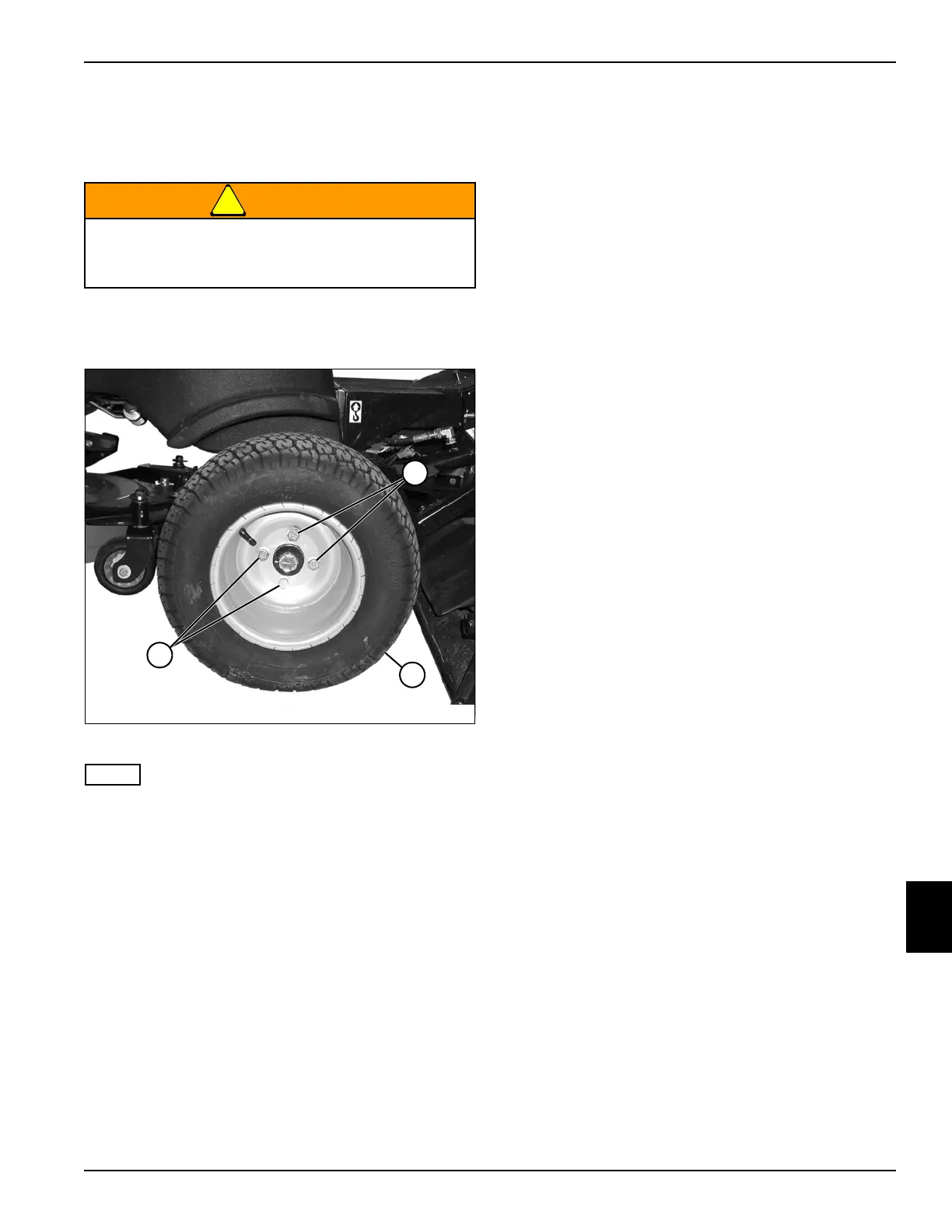

Figure 9-49
NOTE
If using a hydraulic jack, it may be necessary to remove
the rear mower unit to allow access to the left wheel.
(See “Rotary Cutting Unit” on page 8-25 or “Removal and
Installation” on page 8-36.)
2. Loosen but do not remove the four bolts (1).
3. Lift the mower using a suitable lifting device.
4. Remove four bolts (1) and wheel assembly (2).
Installation Notes
• Install the wheel assembly by reversing the order of
removal.
• Tighten bolts (1) to 85—95 lb-ft (115—128 N·m),
using an alternating pattern.
Prevent personal injury. Use properly rated lifting
devices. Always be sure load is balanced before
lifting.
TN1065
1
1
2
To Next Page
