Jacobsen AR-3 User Manual

4-86 4181384 First Edition
ELECTRICAL
4
Fuel Shutoff Solenoid
Removal and Installation

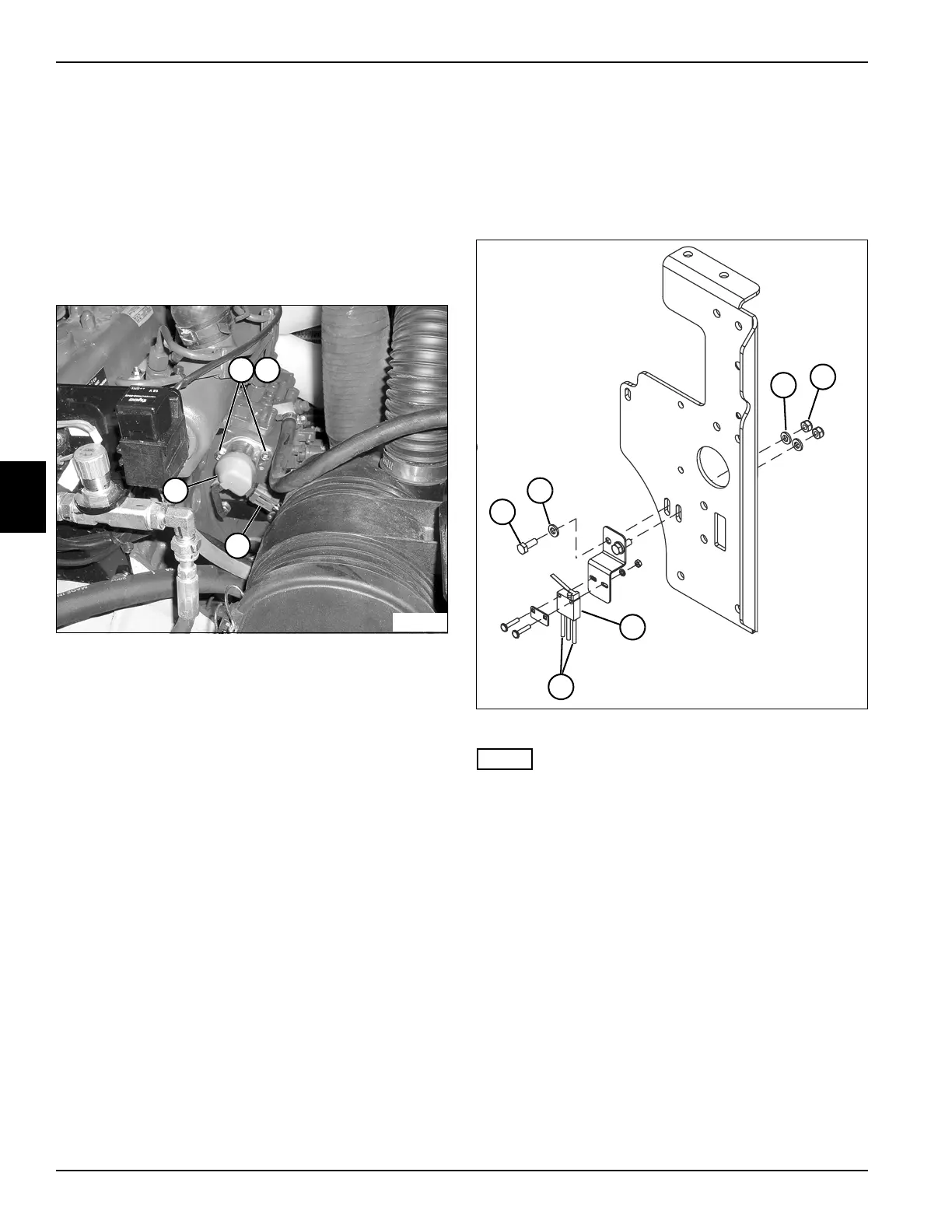

See Figure 4-84.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-7.)
2. Disconnect the battery negative (–) cables at the
battery.
3. Raise the hood.
Figure 4-84
4. Disconnect the wiring connector (3) from the fuel
shutoff solenoid (4).
5. Remove two screws (1) and washers (2).
Installation Note
Install the fuel shutoff solenoid by reversing order of
removal.
Backlap Switch
Removal and Installation
See Figure 4-85.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-7.)
Figure 4-85
NOTE
Label all wires before disconnecting to ensure correct
installation.
2. Disconnect wires (5) from switch terminals.
3. Remove two nuts (3) and screws (1), and four flat
washers (2), and remove backlap switch (4).
Installation Note
Install backlap switch by reversing order of removal.
TN1154
2
1
3
4
TN1209
2
1
3
4
2
5
