Jacobsen AR-3 User Manual

STEERING
4181384 First Edition 7-9
7
Steering Tower
Removal and Installation
See Figure 7-9.

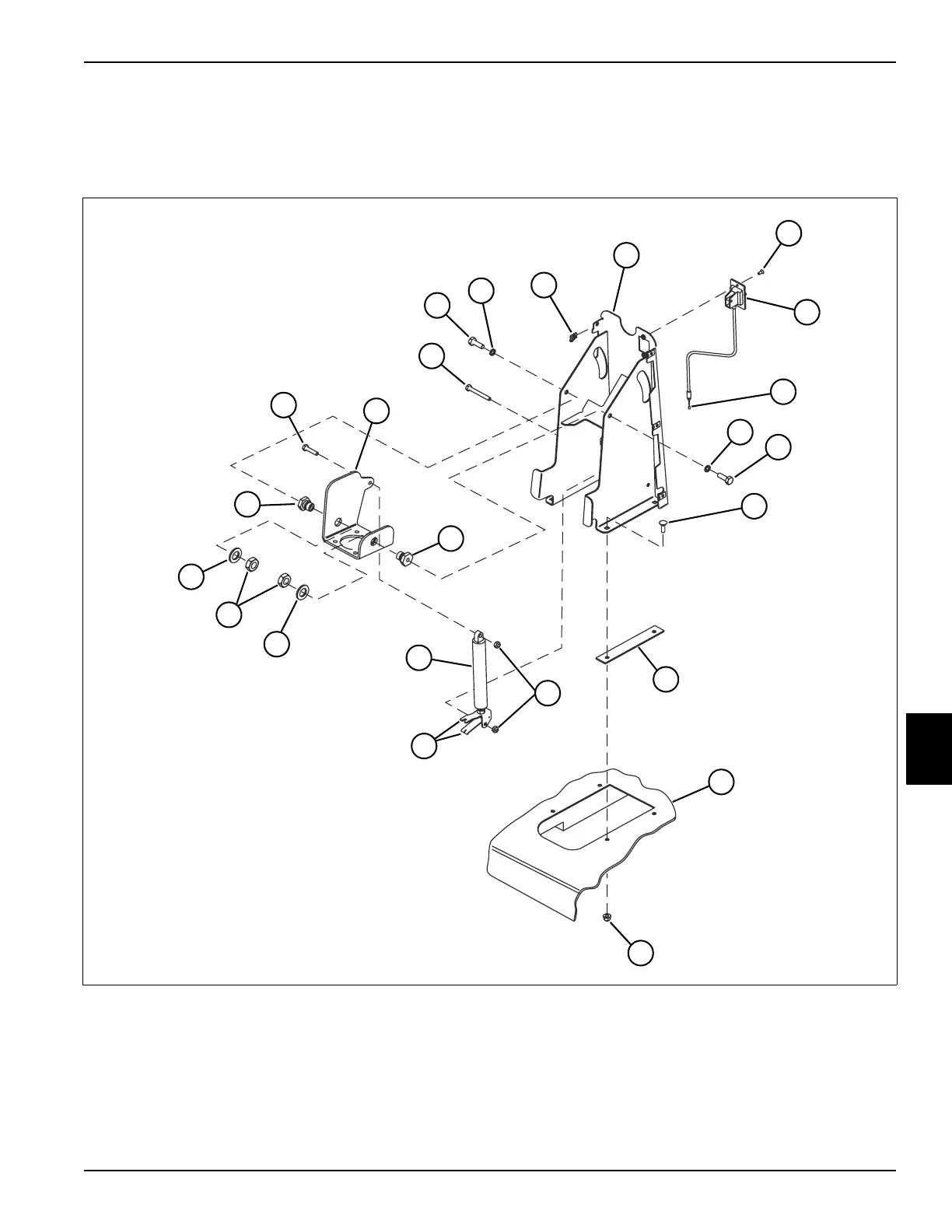

Figure 7-9
1 M8 x 35 Hex Bolt
2 Steering Unit Pivot Bracket
3 Steering Unit Pivot Bolt (2)
4 M8 x 65 Hex Bolt
5 M10 x 30 Hex Screw
6 M10 x 15.9 x 2.5 Lock Washer
7 M6 Speednut (6)
8 Steering Tower Weldment
9 M5 x 12 Countersunk Screw
10 Tilt Spring Actuator
11 Tilt Cable
12 M8 x 25 Carriage Bolt (4)
13 M8 Lock Nut
14 Steering Tower Pad (2)
15 Platform
16 M8 Flanged Lock Nut (4)
17 Release Brackets
18 Gas Spring
19 M20 x 37 x 3 Washer (2)
20 3/4-10 Thin Hex Nut (2)
1
TN1212
15
1
2
4
5
6
7
8
9
10
11
6
5
12
3
13
14
16
17
19
19
20
18
3
