Rev. 2.0
Maintenance Guide
2-1
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[2] HEAD UNIT

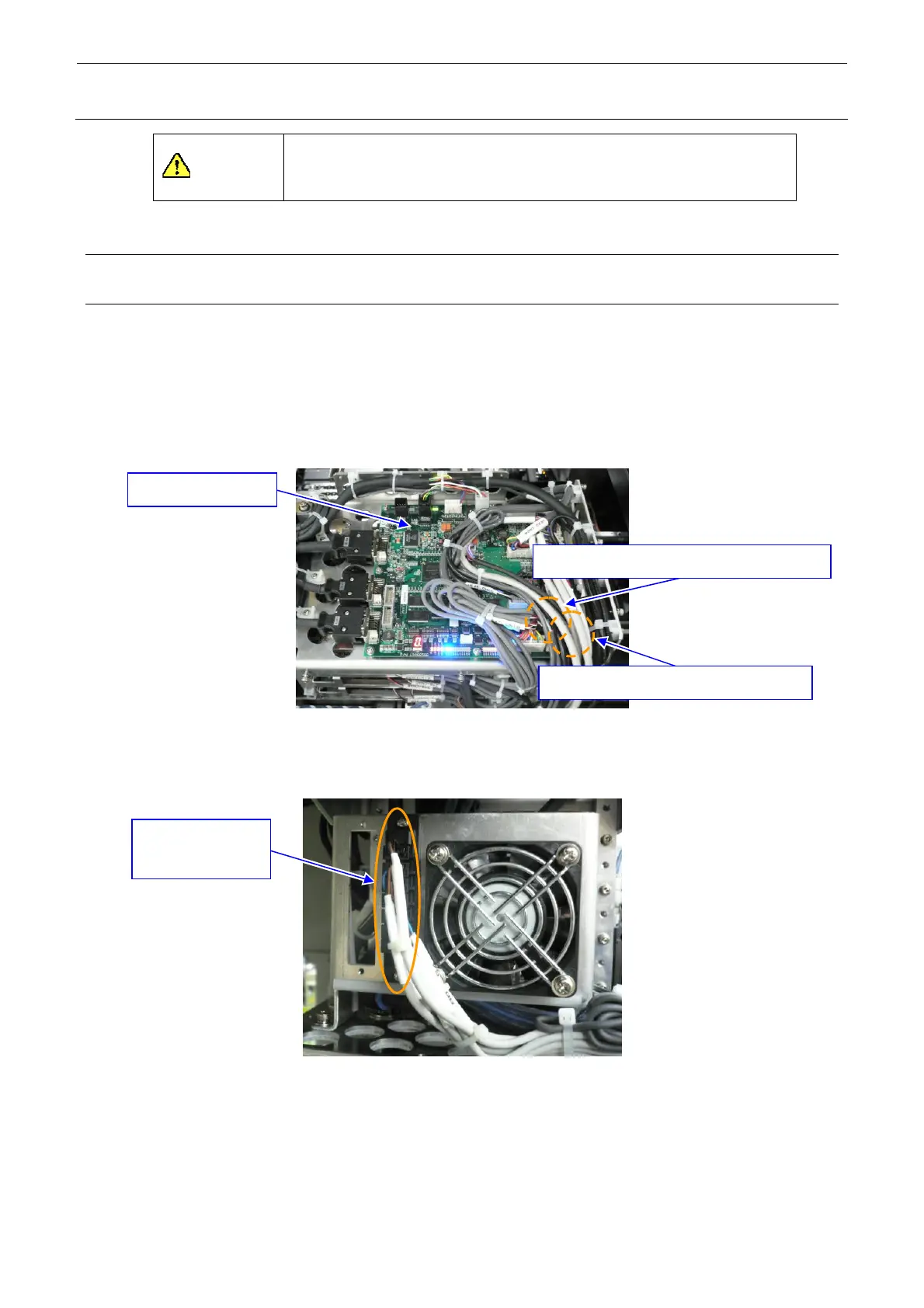

2-1. Replacing and Adjusting the Head
2-1-1. LNC60 Head
1) Turn OFF the compressed air to the machine main unit.
2) Detach the head top cover, head left cover, head right cover, and head cover.
3) Disconnect the solenoid valve cables (vacuum/CN25, blow/CN26) from the head main board.
(Figure 2-1-1)
4) Disconnect the vacuum sensor of the ejector relay cable assembly from the head top fan
assembly. (Figure 2-1-2)
Ejector relay
cable assembly
Solenoid valve cable (vacuum/CN25)
Solenoid valve cable (blow/CN26)
Head main board
To Next Page
