Rev. 2.0
Maintenance Guide
9-15
9-2-1. Replacing the Drive Cylinder (Mechanical Fixed Bank and Mechanical
Replacement Table)
1) Turn OFF the compressed air to the machine main unit.
2) For the optional replacement table, detach the replacement table from the main unit to take it
out from the machine. Turn ON the selector and press the left and right roller levers to move
up the lifter. After that, turn OFF the compressed air.)
3) Disconnect the left and right air tubes and connectors.
4) Remove the driver bracket support mounting screws.
In the mechanical fixed bank, these screws are mounted on the bottom surface of the bank
from the lower portion.
In the machine with the mechanical replacement table, these screws are mounted on the
bottom surface of the bank lifter from the upper portion.

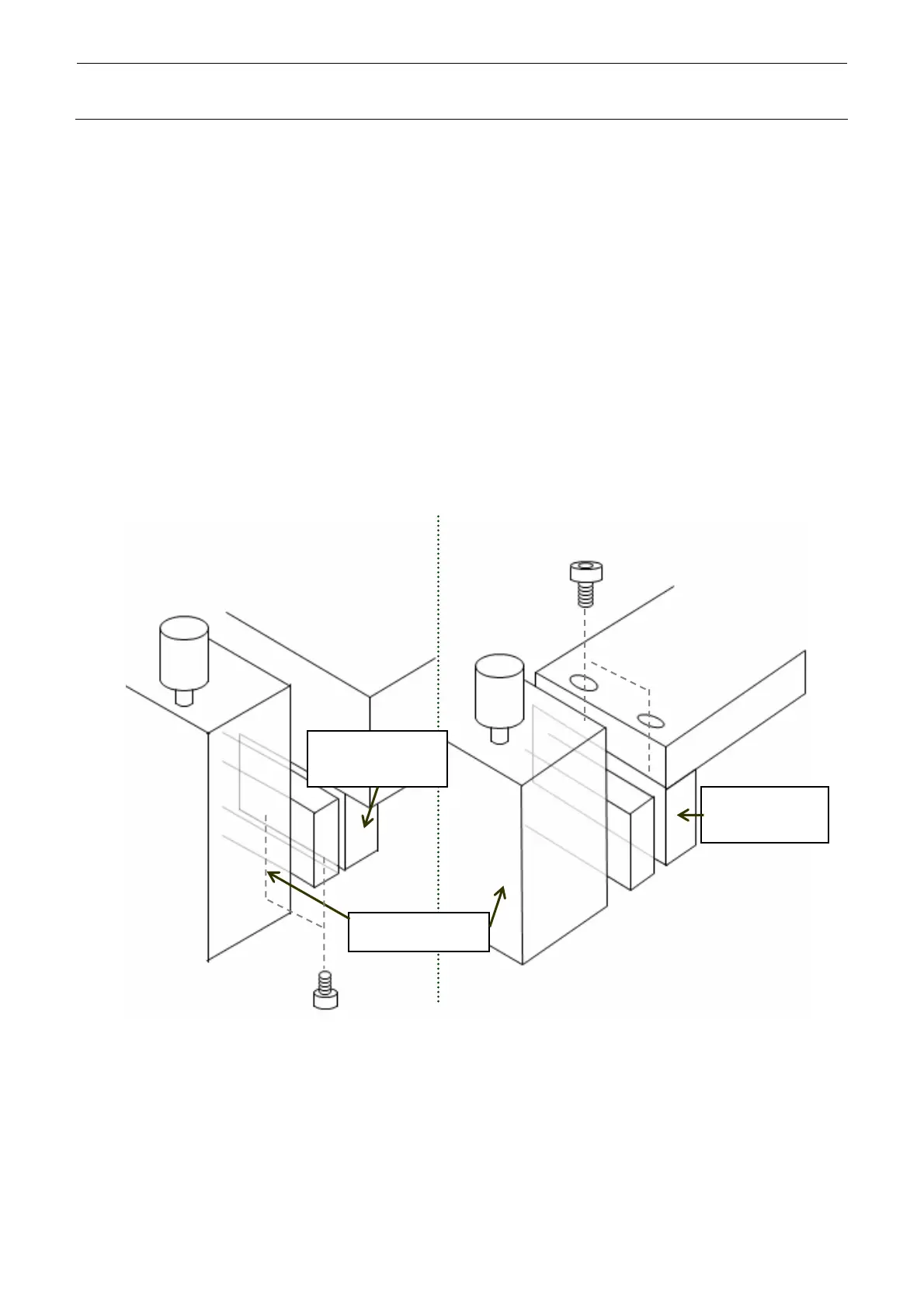

(Mechanical fixed bank) (Mechanical replacement table)
Bank lifter
Bank
Driver bracket
support C
Driver bracket
support A
Driver cylinder
To Next Page
