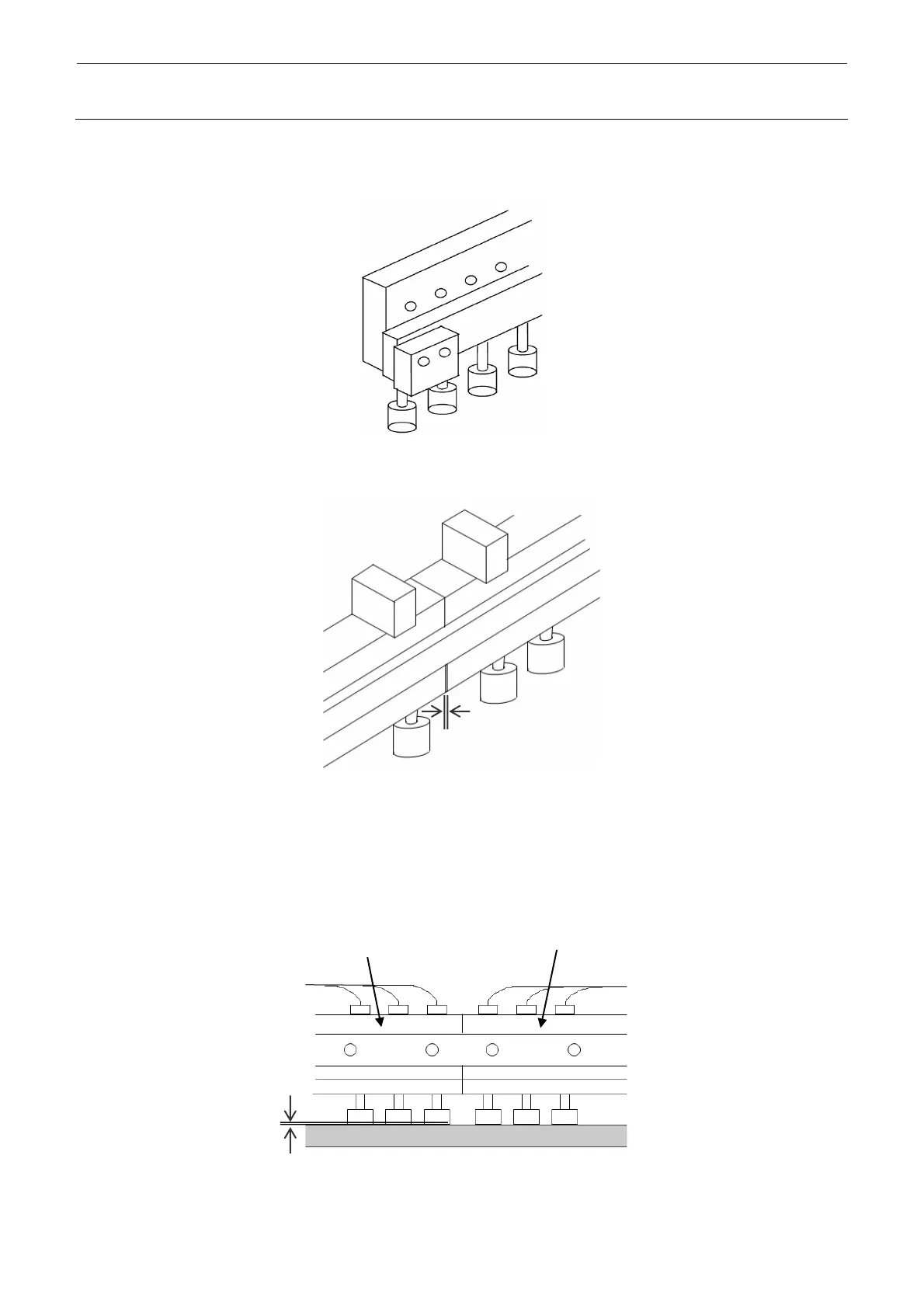

5) Replace the drive cylinders with new ones and put them upside down as shown Figure below.
<CAUTION> Carry out this work on the leveled table or the top surface of the bank.
6) Carefully mount the drive cylinders in the horizontal direction so that there is no gap between
them.
There shall be no gap.
7) Carefully mount the drive cylinders in the vertical direction by placing the driver support
against the rib of the main unit so that there is no gap between the top surface of the bank (or
work table) and the driver cylinder.
<CAUTION> Always replace the left and right drive cylinders one-by-one.
There shall be no gap.
Newly mounted
cylinder
Cylinder not replaced
8) Reassemble the components in the reverse order of disassembly.
