Rev. 2.0
Maintenance Guide
16-5
16-5.
Detaching the FPI (Fron
t) (XL Board Specifications)

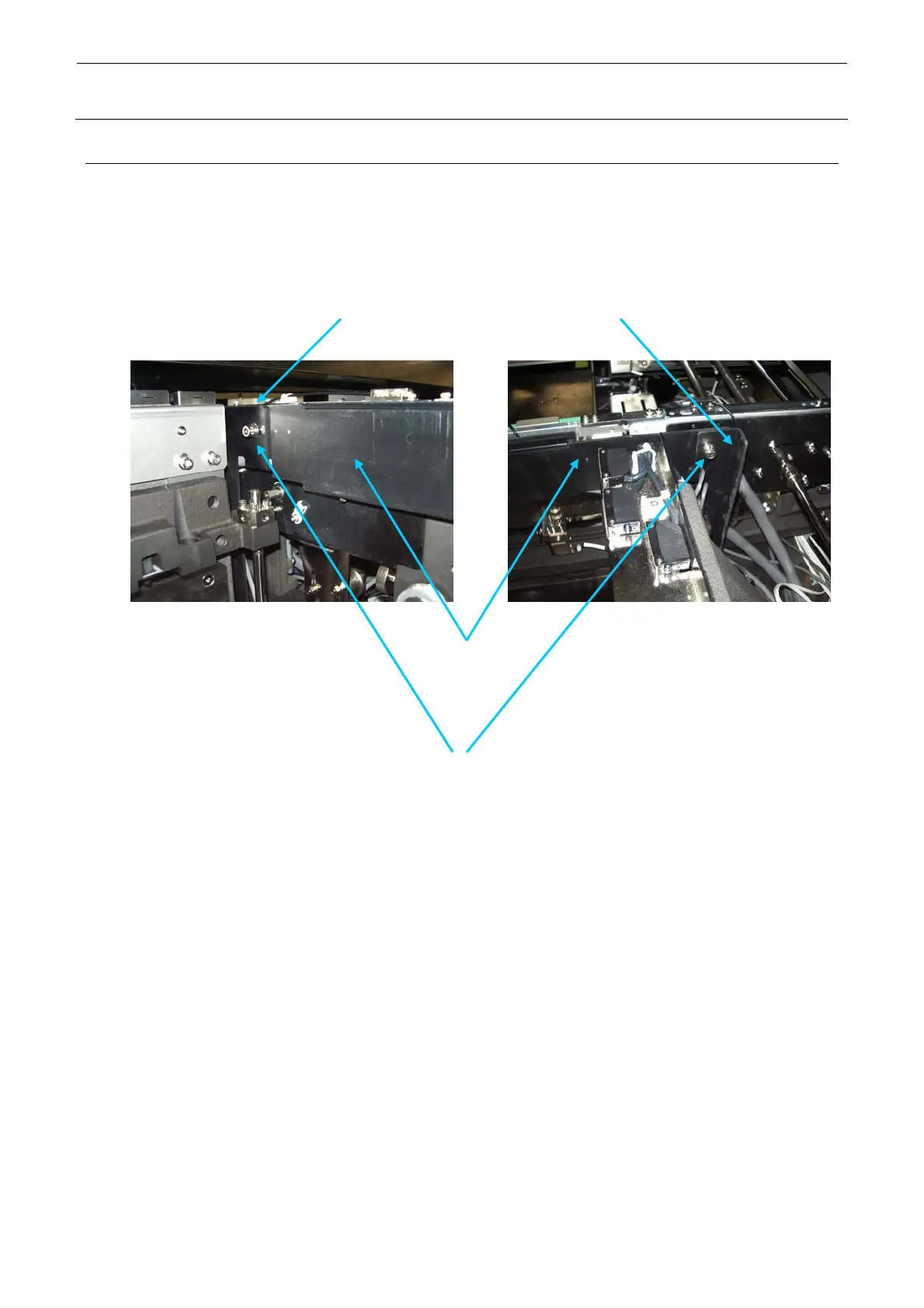

As shown in the Figure below, the FPI (front) is
secured t
o the mounting holes in the FPI side
brackets L and R with the SEMS cap bolts (M6
×
12) that are secured to the base frame.
To detach the FPI, remove two bolts and slide it upward.
FPI side bracket L
SEMS cap bolt
FPI assembly F
FPI side bracket R
Figure 16-5-1
