Rev. 2.0
Maintenance Guide
5-22
5-10. Replacing the T-PIN Sensor (Optional)
1) Remove the adjustment screw to detach the sensor bracket and replace the sensor.
When reassembling the components, adjust the position of the sensor bracket by loosening
the adjustment screw and moving the sensor bracket up and down so that the T-PIN sensor is
turned ON when the center ring pin is lowered by 1.5
0
-0.5
mm. (Dimension A in the Figure
below)
2) Carefully handle the cables.
SL6030692TN
SEMS cap bolt with washer
M3×6
40092576
T-PIN sensor assembly
調整ねじ
セン
T・
Adjustment screw
T-PIN sensor
Sensor bracket

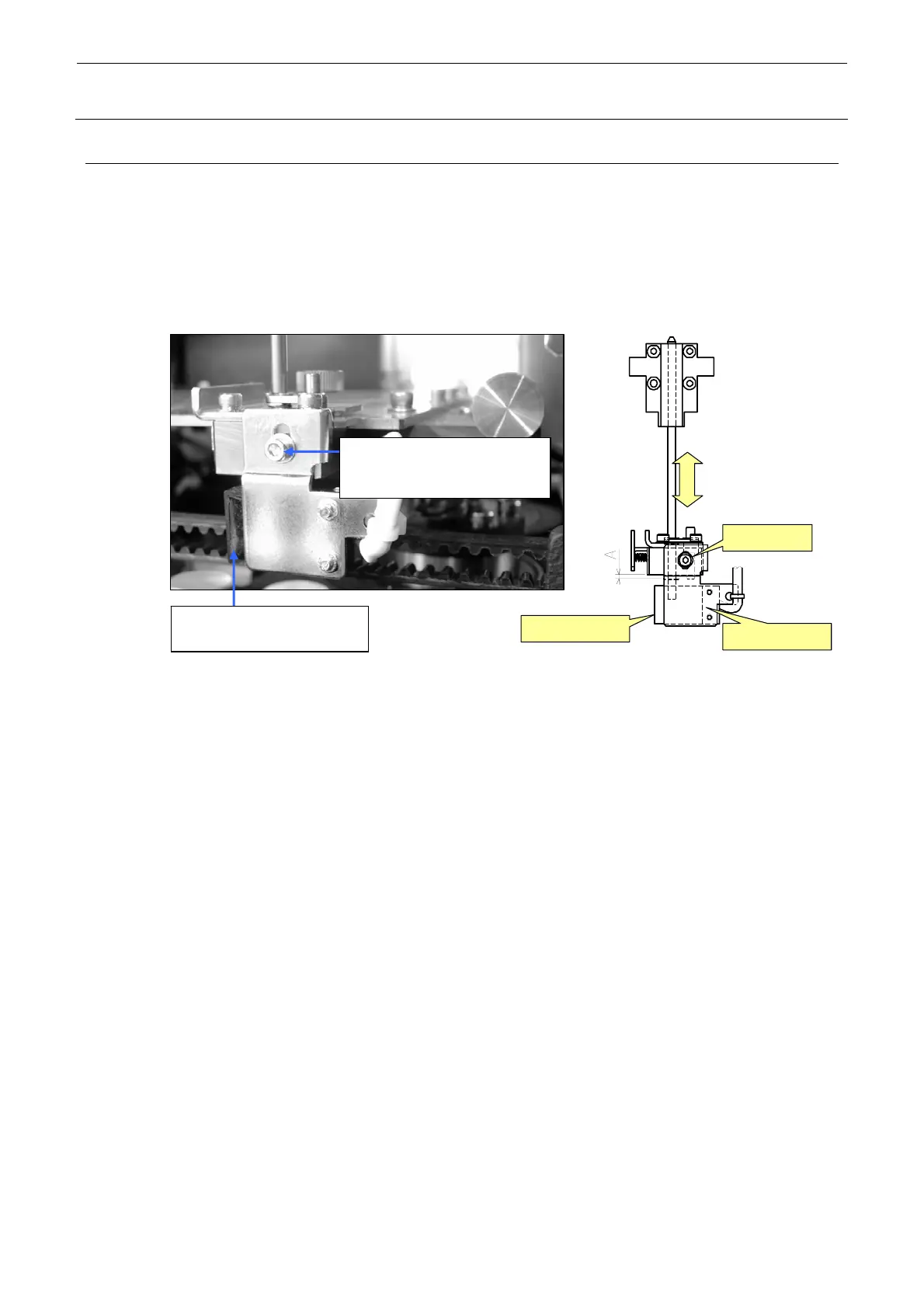

Figure 5-10-1 T-PIN Sensor
