Rev. 2.0

Maintenance Guide

16-4

16-4. Structure of Parts and Components inside FPI (Rear)

(M and L Board Specifications)

①

②

③,⑤,⑥

④

⑤

⑧

⑦

FRR

FRL

FLL

FLR

⑤,⑥

⑤

③,⑤,⑥

⑨

⑩

⑪

⑫

4ヶ所

4 locations

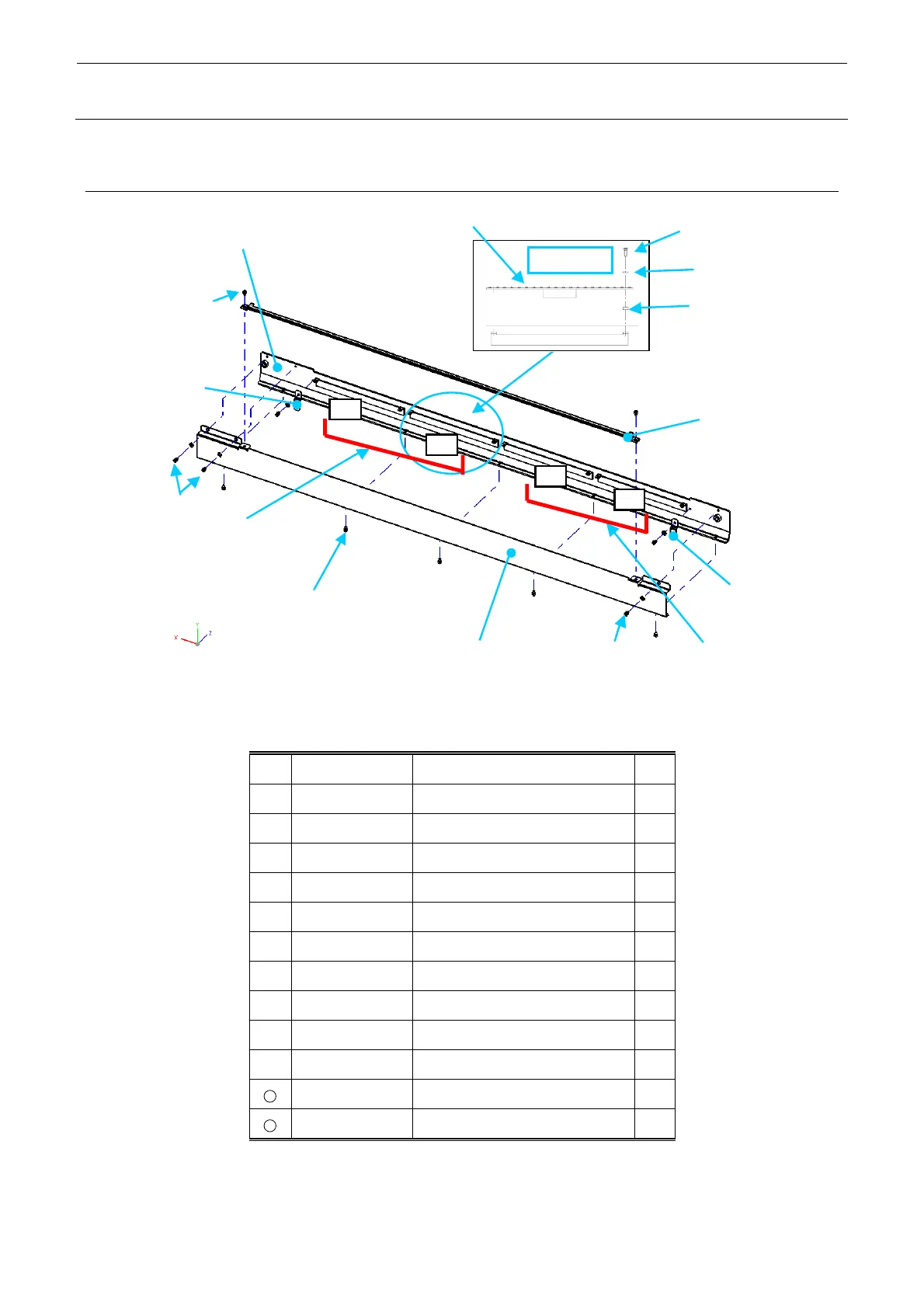

Figure 16-4-1

Part No. Part name Q’ty

40110740 FPI_BR_B 1

40110741 FPI_COVER_B 1

40094870 HARNESS_CLAMP_A 2

E60257290A0 FPI_COVER_U_20 assembly 1

SM6030402TN SCREW M3X4 13

WP0320501SC WASHER M3 6

40113655 FPI LED CABLE(RR)ASM 1

40113656 FPI LED CABLE(RL)ASM 1

E8626729000 FPI LED board 4

SM5030801SC SCREW M3X0.5 L=8 8

E4901760000 POLY SLIDER THRUST WASHER

E2143715000 TIMER SPACER A 8
