Rev. 2.0

Maintenance Guide

16-7

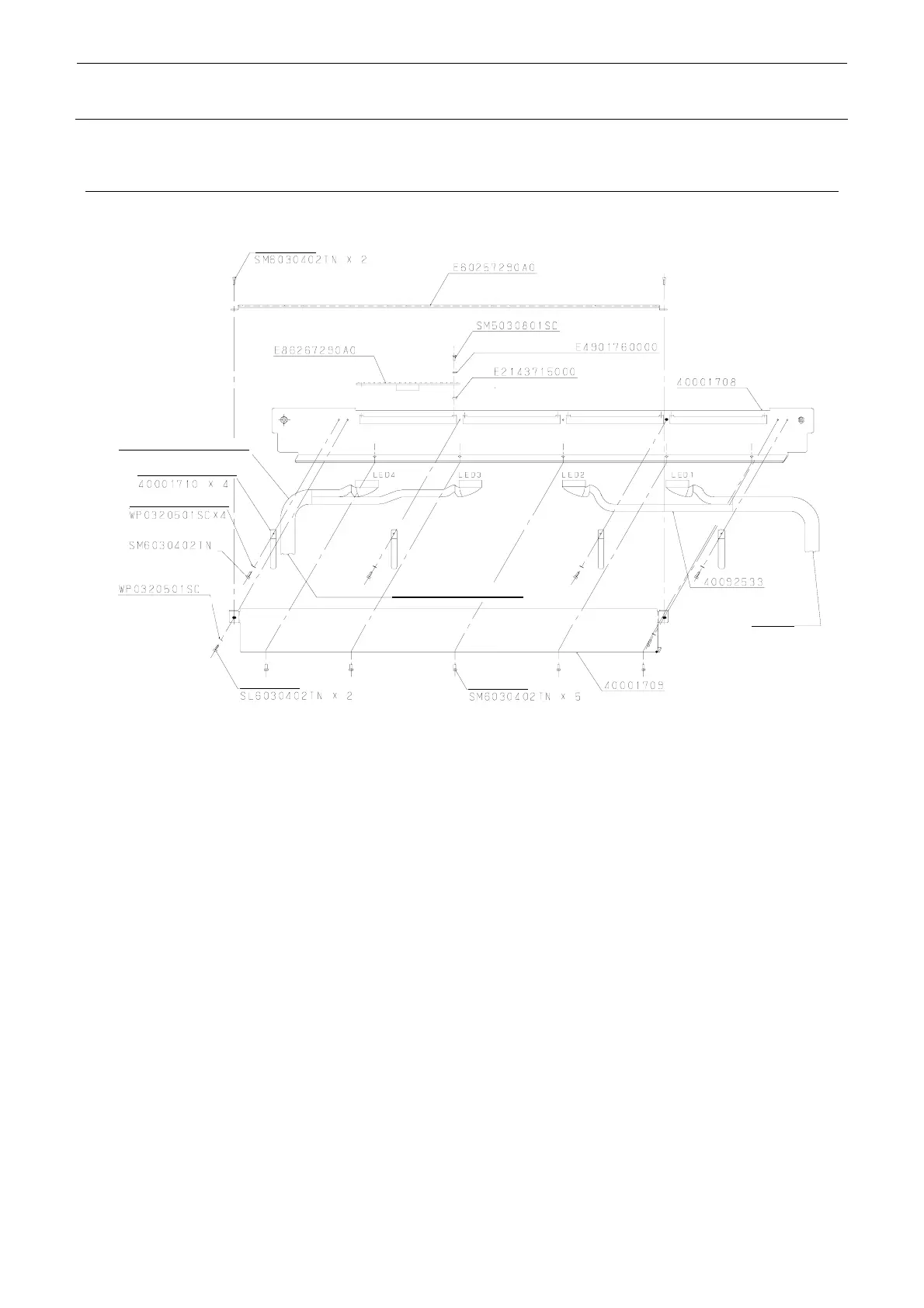

16-7. Structure of Parts and Components inside FPI (Front)

(XL Board Specifications)

40092534

FPI LED cable B assembly

Harness clamp

Plain washer

Fixing screw (× 4)

Plain washer (× 2)

Fixing screw

FPI LED board (× 4)

To FD16 (board connector)

FPI cover U, 20 sets

Fixing screw (

Plastic slider (

Spacer (

FPI bracket F

FPI LED cable FL

assembly

To FD15

(board connector)

Fixing screw

FPI cover B

Figure 16-7-1
