1-6-4. Removing the Y Veyor-Cable
1) Disconnect the binding of the connector bracket at the entrance of the Y-axis cableveyor
and the relay connector.

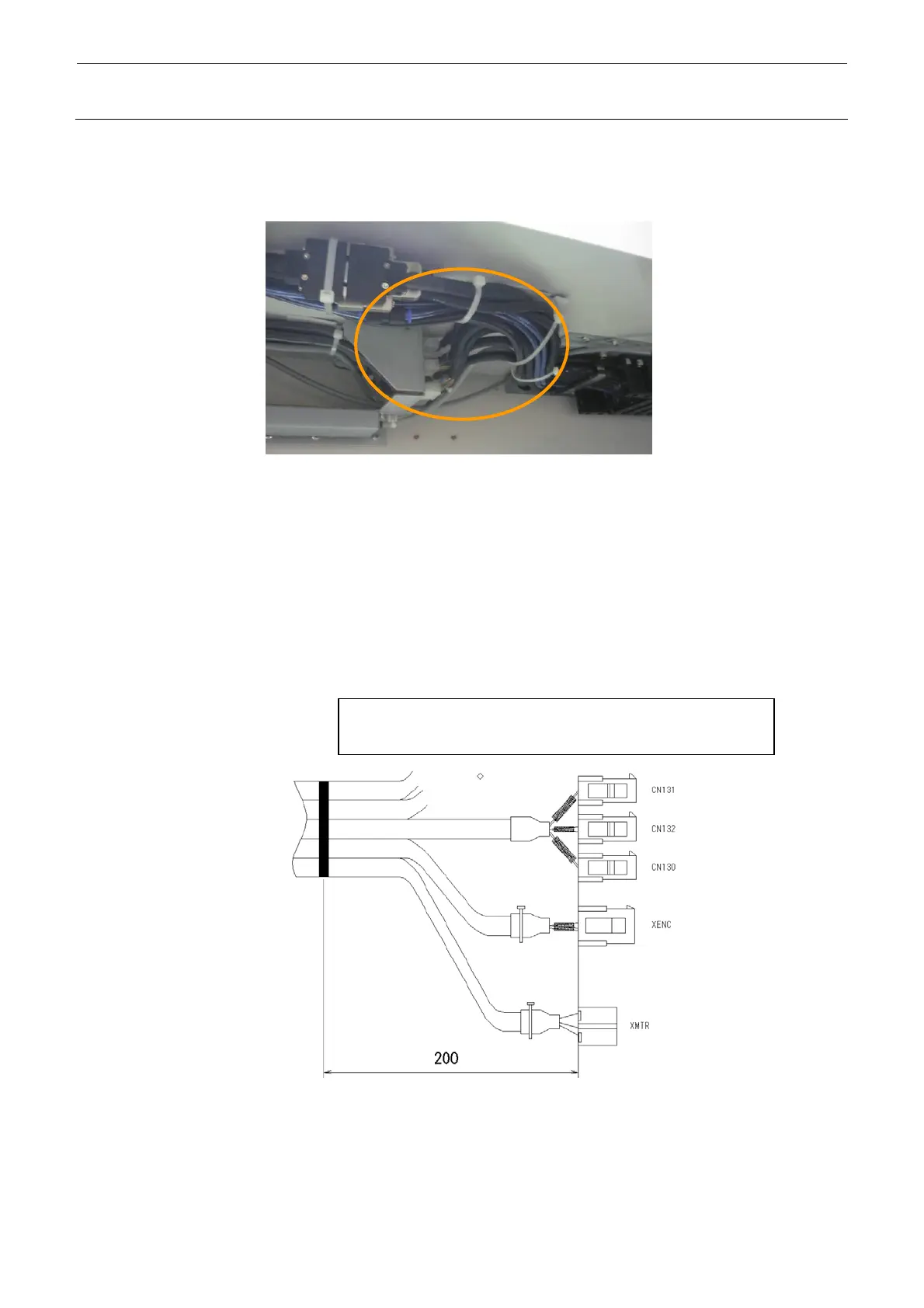

Figure 1-6-4-1 Examples of M and L Board Specifications
2) Detach the cover of the Y cableveyor and remove the cable to be replaced.
1-6-5. Placing Marks on the Y Veyor-Cable
1) Check the marking position of the Y veyor-cable (Y veyor-cable XL).
(Place marks at a position 200mm from the end of the XMTR connector.)
Y veyor-cable
M and L board specifications: Y veyor-cable (40113623)
XL board specifications: Y veyor-cable XL (40092638)
Figure 1-6-5-1
To Next Page
