Rev. 2.0
Maintenance Guide
8-2

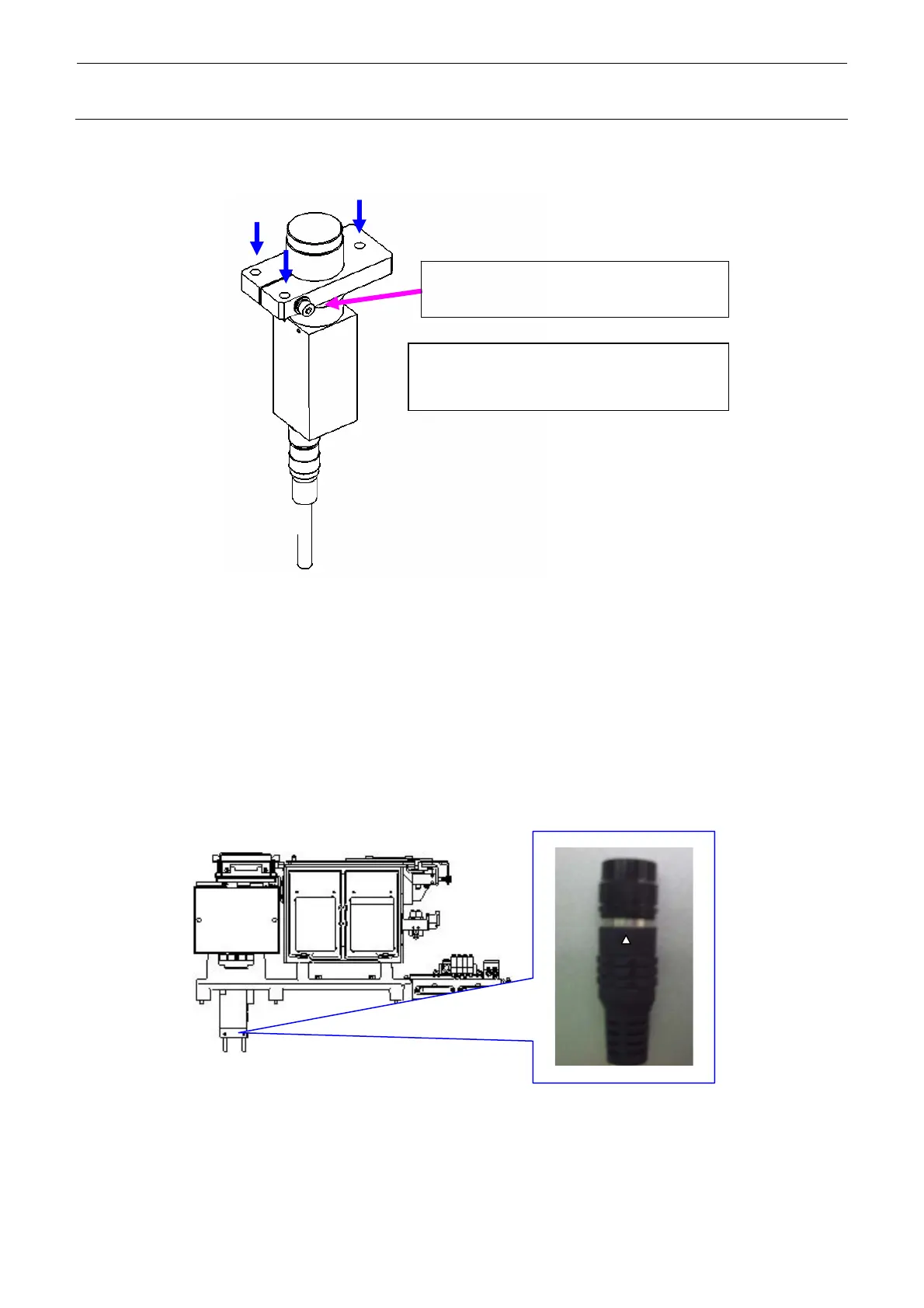

4) When the light unit is detached, the camera can be seen. Remove three M4×20 SEMS cap
bolts (SL6042092TN) to detach the camera.
40106751: S-VCS ST camera assembly
40106752: S-VCS OP camera assembly
Never remove this screw since it has
been adjusted correctly at the factory.
Figure 8-1-2
5) Clean the camera mounting surface with alcohol.
6) In the reverse order of steps described above, return a new camera and light unit to their
original positions.
7) When inserting the camera cable, insert it with the U mark on the connector faced toward the
front.
Figure 8-1-3
To Next Page
