Rev. 2.0
Maintenance Guide
12-2
Light emitting side
Light receiving side
No.
Part No. of sensor
to be used.
Hot marker
Assembly
part name
Part No. of sensor
to be used.
Hot marker
Assembly
part
name
①
40110000
CN412
CN412_ASM
40110001
CN413
CN413_ASM
②
40110002
CN411
CN411_ASM
40110003
CN410
CN410_ASM
③
40110004
CN421
CN421_ASM
40110005
CN420
CN420_ASM
④
40110006
CN422
CN422_ASM
40110007
CN423
CN423_ASM
⑤
40110008
CN415
CN415_ASM
40110009
CN414
CN414_ASM
⑥
40110010
CN425
CN425_ASM
40110011
CN424
CN424_ASM
⑦
40110012
CN416
CN416_ASM
40110013
CN417
CN417_ASM
2)

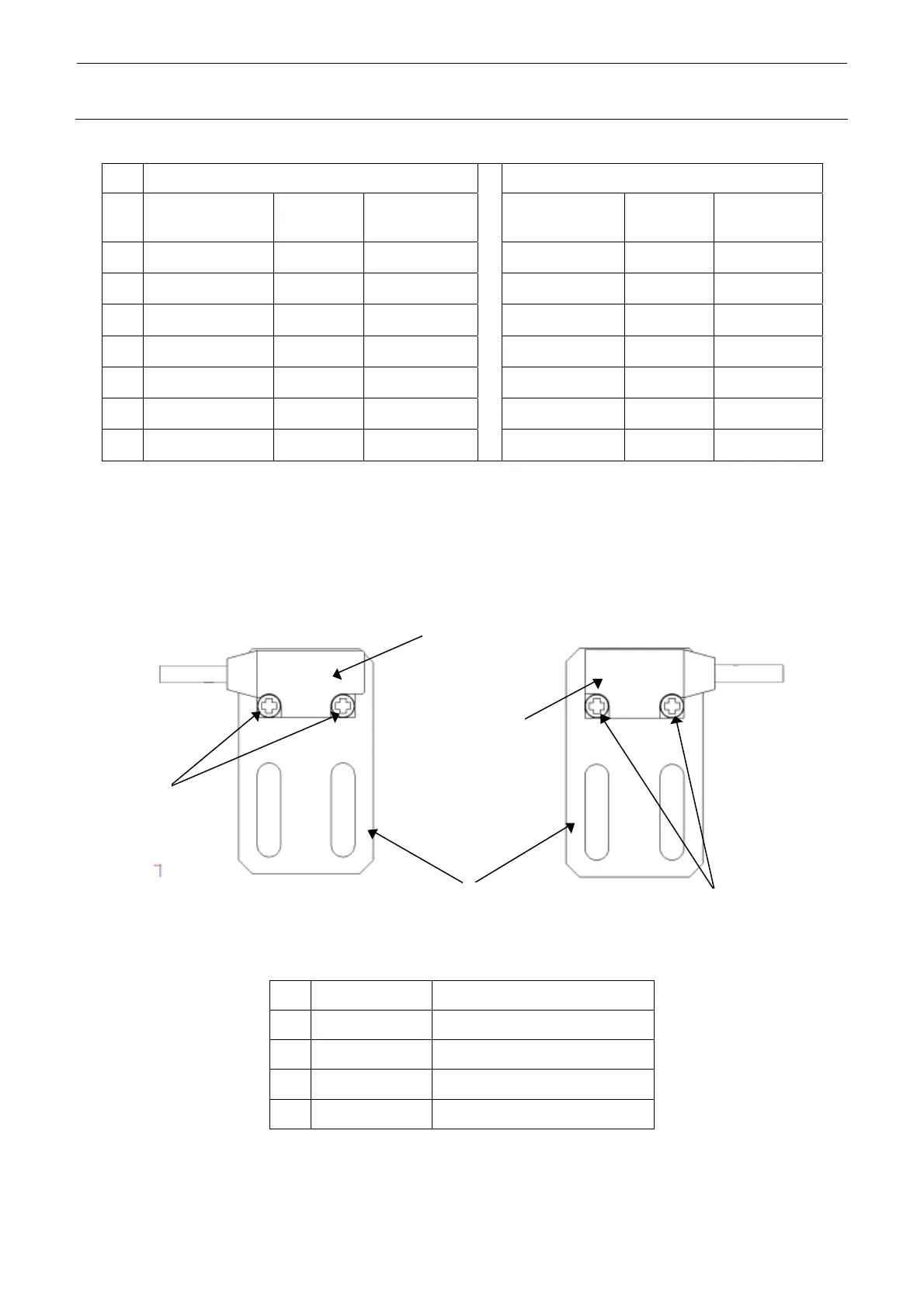

Assemble the replacement sensor as shown in the Figure below.
受光
側
投光
側
Light receiving side
Light emitting side
②
③
④
①
④
Figure 12-1-2
Part No.
Part name
c
40110190 FSD_BR
d
⎯
Light receiving sensor
e
⎯
Light emitting sensor
f
SM4020501SC
SCREW M2 L=5
234
236
