<XL board specifications>

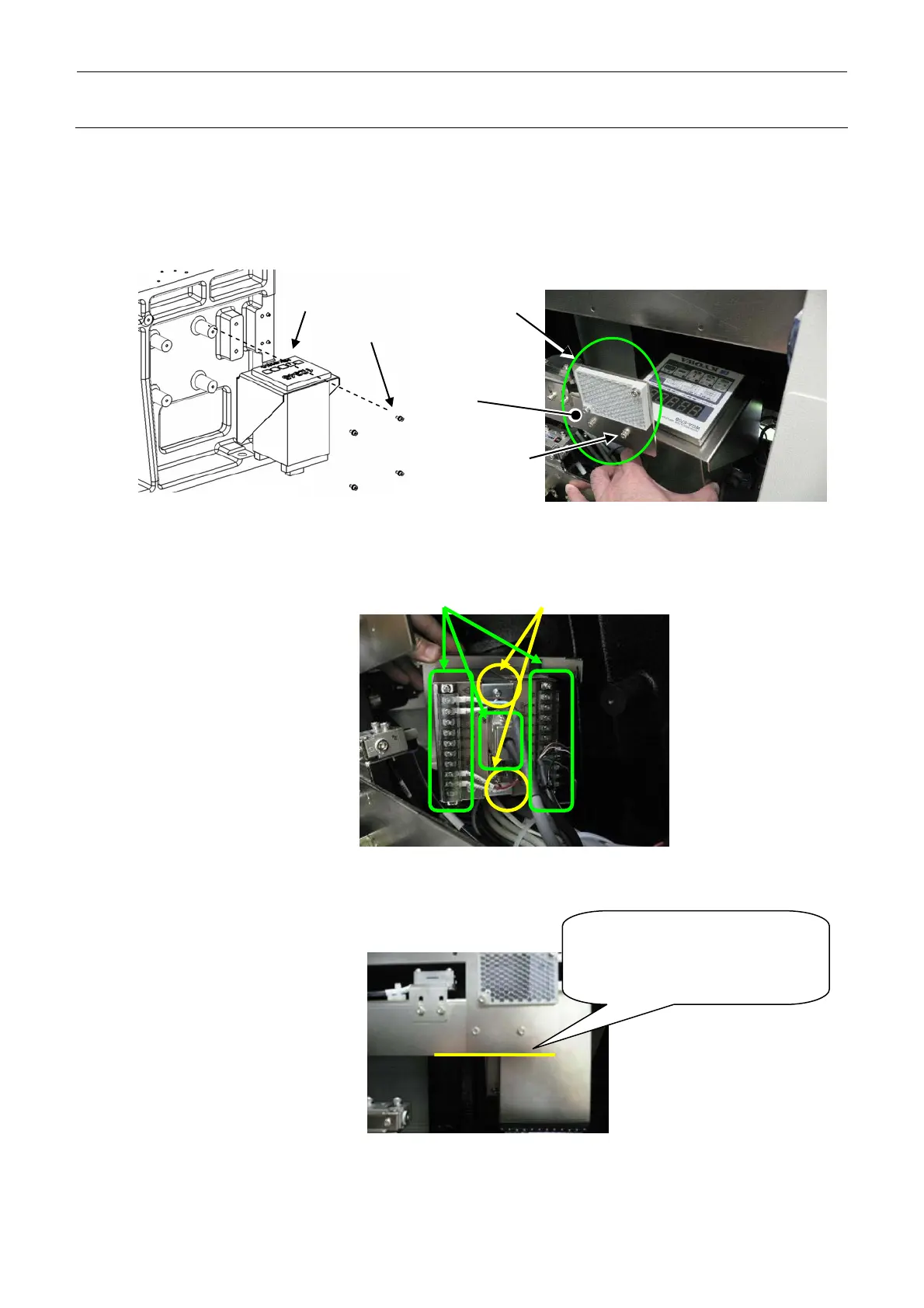

1) When replacing the load cell 1, first remove the screws (SL6031092TN M3 × 10) f to detach
the reflection plate e for the electric feeder incorrect detection sensor so as to get access to
the load cell mounting screws (SL6041092TN M4 × 10) 2, and then remove these screws. (It
is not necessary to detach the feeder float sensor mounting bracket g.)
1
2
e
f
g
2) Disconnect all the cables 6. Remove the screws 7 (2 pcs.) from the rear of the load cell 1
and pull out the load cell amplifier from the bracket.
6
7
3) Reassemble the parts and components in the reverse order of disassembly.
Assemble the components so
that the bottom of the reflection
plate e is flush with the bottom
of the bracket g.
