Rev. 2.0
Maintenance Guide
1-31
<XL board specifications> X_PLASTIC_RAIL_XL (Part No.: 40098059)
1) Remove the hexagon socket head cap bolt (M4×10) to detach the X_PLASTIC_RAIL_XL
from the HEAD_PLASTIC_RAIL_BR and X_PLASTIC_RAIL_SUPPORT_XL.
2) Remove the M5 nut and washer assembled hexagon socket head cap bolt (M5×14) to
detach the M5 flat washer, FC_SUPPORT, and FC_RUBBER.
3) Remove the hexagon socket head cap bolt (M5×10) to detach the FC_SUPPORT_X and
FC_RUBBER.
4) Remove the arm of the X-axis cableveyor, take out the cables, and replace the cableveyor.
5) Reassemble the components in the reverse order of disassembly. At this time, pay special
attention so that the cables inside the cableveyor are not entangled
.
Additionally, push the cables inside the X-cableveyor by hand to check that they are flexible.

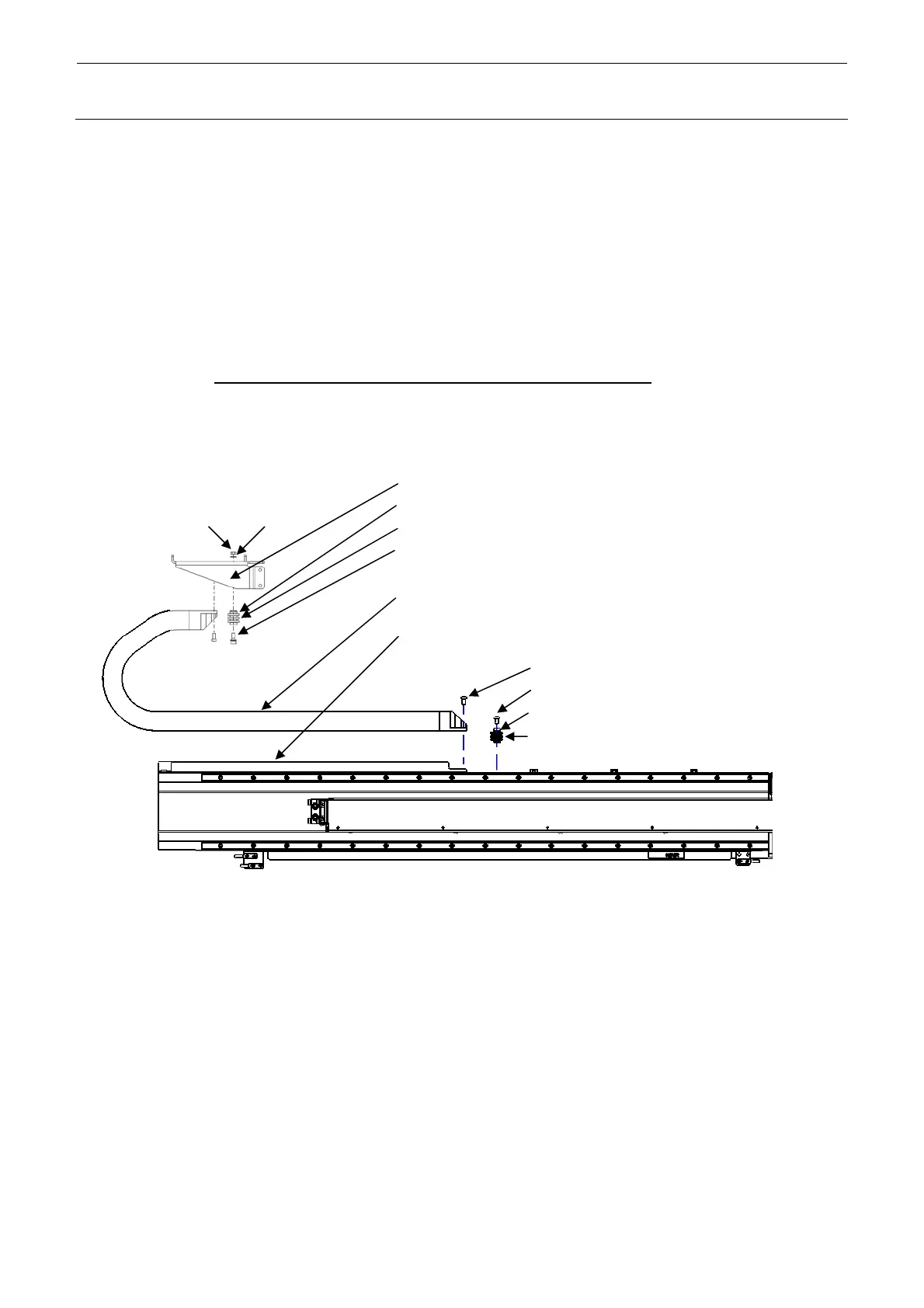

Figure 1-5-1-2 X-Axis Cableveyor (XL Board Specifications)
Hexagon socket head cap bolt (M4 × 10)
X_PLASTIC_RAIL_XL (40098059)
X_PLASTIC_RAIL_3010_XL (40114084 (for KE-3010))
Washer assembled hexagon socket head cap bolt (M5 × 14)
FC_RUBBER (L153E321000)
FC_SUPPORT (L153E221000)
FC_SUPPORT_X (40093858)
FC_RUBBER (L153E321000)
Hexagon socket head cap bolt (M5 × 10)
X_PLASTIC_RAIL_SUPPORT_XL (40098058)
HEAD_PLASTIC_RAIL_BR (40071578)
M5 nut
M5 flat washer
