<XL board specifications> Y_PLASTIC_RAIL_XL (Part No.: 40098060)
1) Remove the hexagon socket head cap bolt (M4×10) to detach the Y_PLASTIC_RAIL_XL
from the Y_PLASTIC_RAIL_BR_XL and Y_PLA_RAIL_SUPPORT_XL.
2) Remove the round screw (M6×10) to detach the FC_SUPPORT_Y and FC_RUBBER_Y.
3) Remove the arm of the Y-axis cableveyor, take out the cables, and replace the cableveyor.
4) Reassemble the components in the reverse order of disassembly. At this time, pay special
attention
so that the cables inside the cableveyor are not entangled.
Additionally, move the Y-axis to the foremost position and push the cables inside the
Y-cableveyor by hand to check that they are flexible.
Y_PLASTIC_RAIL_XL (40098060)
A
Hexagon socket head
cap bolt (M4 × 10)
FC_RUBBER_Y
(40098052)
Round screw (M6 × 10)
FC_SUPPORT_Y
(40098051)
Part A
Y_PLASTIC_RAIL_BR_XL
(40098061)
Y_PLA_RAIL_SUPPORT_XL
(40098069)

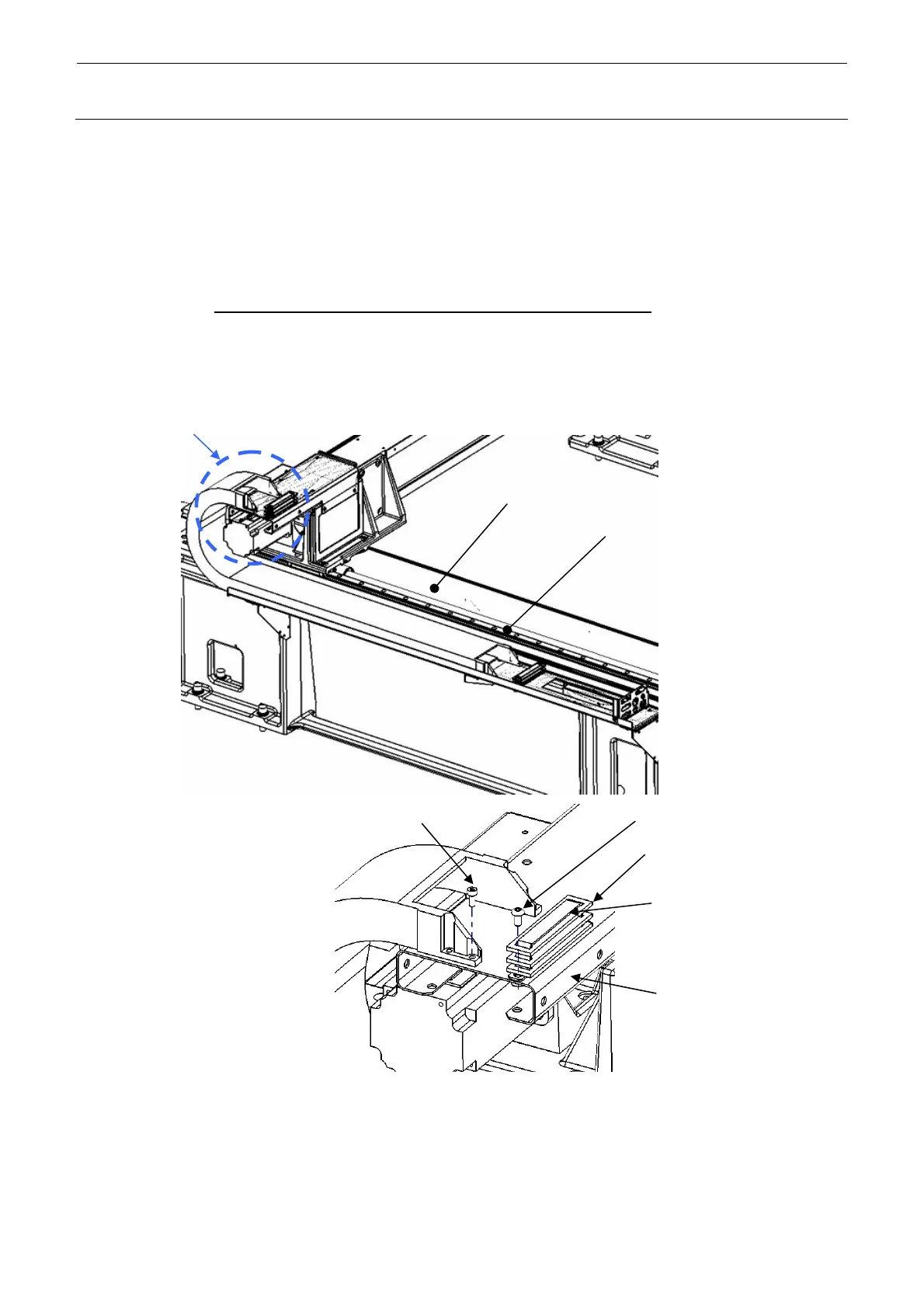

Figure 1-5-2-2 Y-Axis Cableveyor (XL Board Specifications)
