Rev. 2.0
Maintenance Guide
1-57

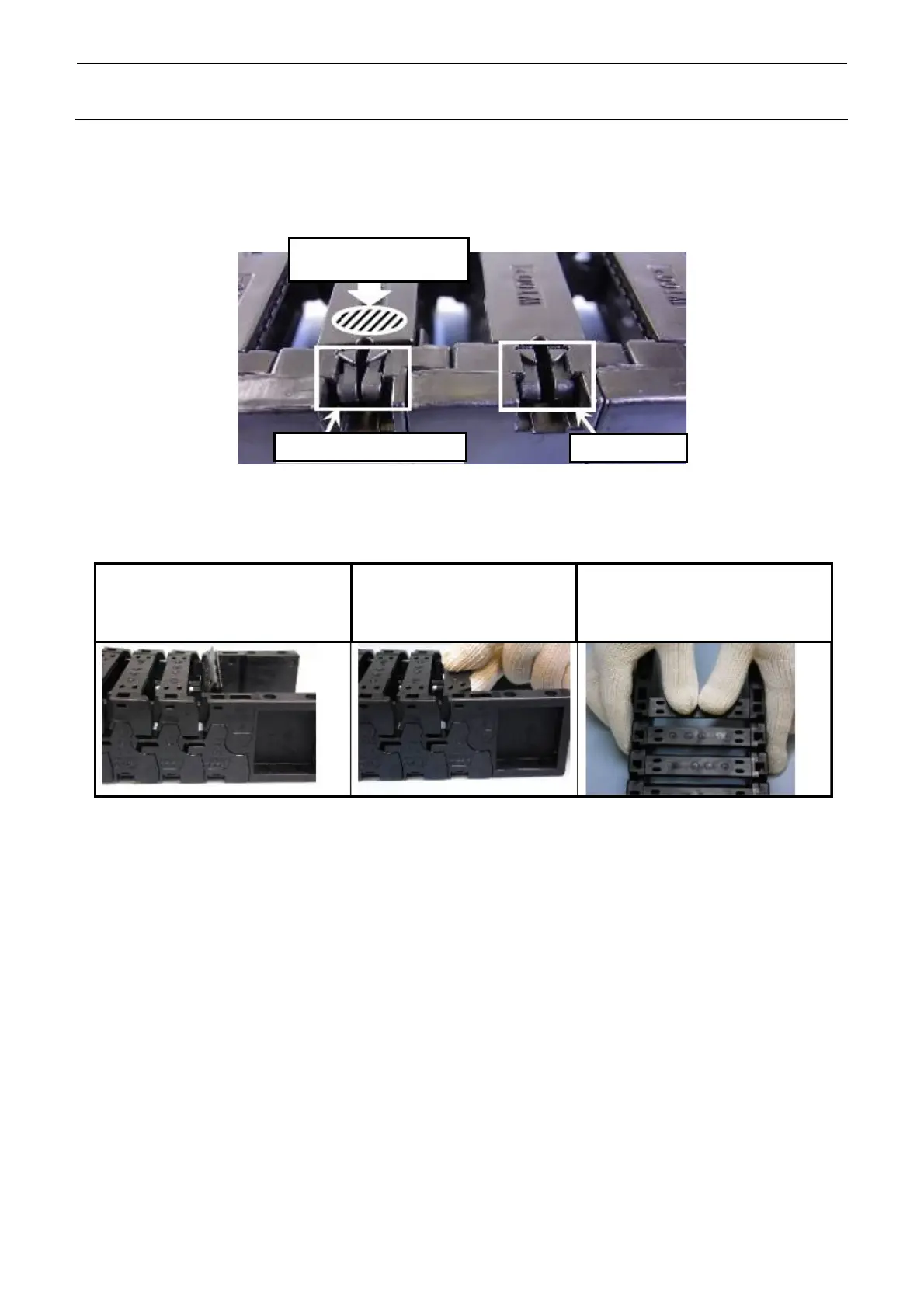

∗ If the arm is not mounted correctly, it becomes as shown in the Photo below. Be sure to make the inspection before
starting the operation.
∗ If the arm is not mounted correctly, tap the portion indicated by { in the Photo below several times with a plastic
hammer. After checking that the arm is mounted correctly, start the operation.
Lightly tap with plastic
hammer.
Incorrect mountin
status
Correct status
Mounting the lock stay
1) With the lock stay inclined 45° or
more, adjust the projection of the
link to the dent on the lock stay in
the horizontal direction.
2) Hold the center part of the
lock stay and turn it.
3) Push the portions about 30 mm
away from the both ends of the
lock stay with both hands to
mount the lock stay.
To Next Page
