Maintenance Guide
1-6
1-6. Checking assembly position
Once the system becomes ready for powering ON, confirm that the picking pad of shuttle and the
picking pad of X head are positioned on the same axis.
Boot the system in test mode, and after initialization, confirmation can be made by means ofH.P
Offsetof 19.XYZ ADJ(see Section 10-19).
If the picking pad is displaced, adjustment is required.

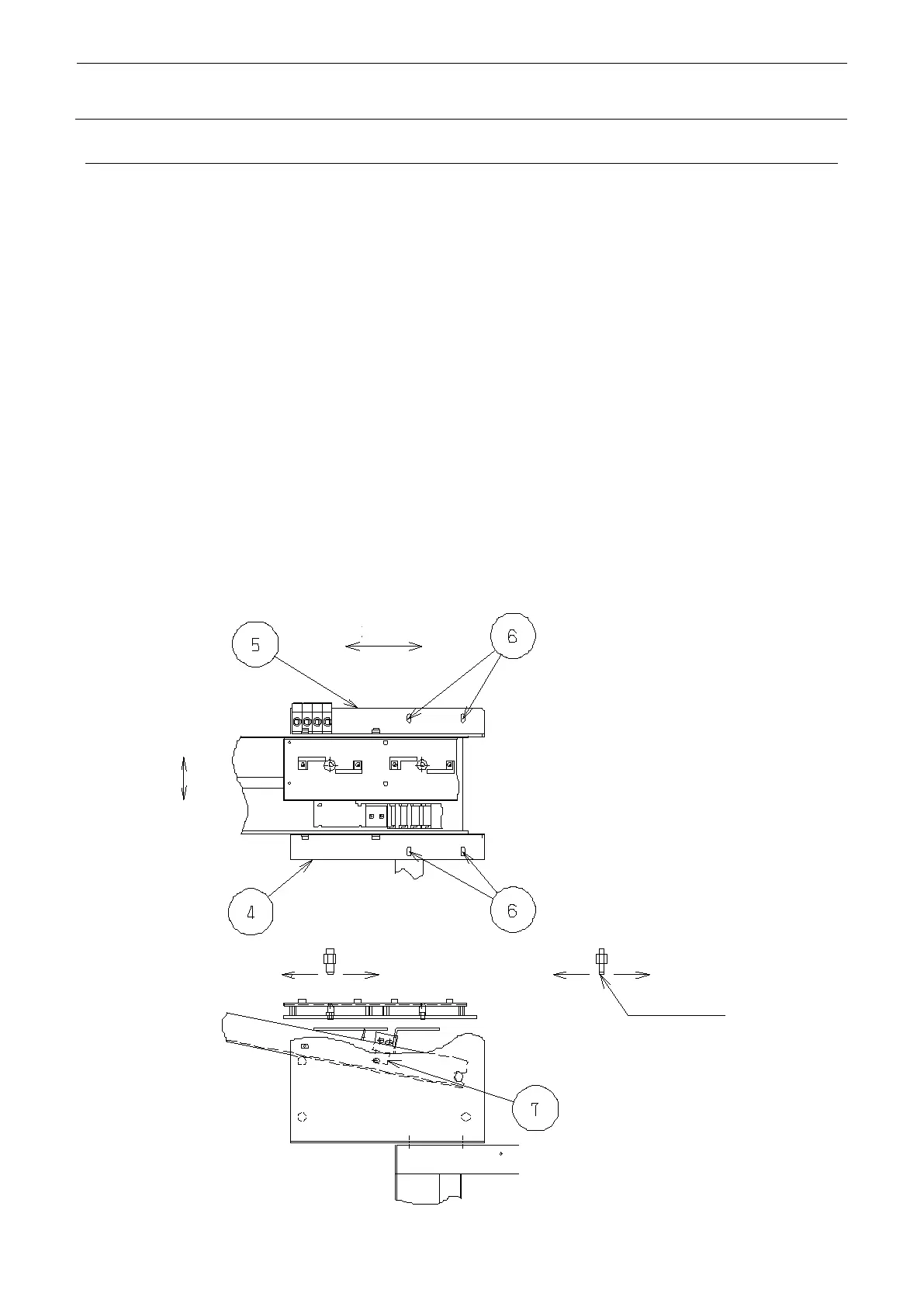

< Displacement in Y-direction >
Loosen the mounting screws of S joint base A and S joint base B , and adjust the position.
< Displacement in X-direction >
Use H.P Offsetin 19. XYZ ADJof test mode for adjustment.
Move X head with the arrow key, lower the head with the HEAD key, and make confirmation.
If the value of H.P Offsethas been changed, then change the value of Tray Refas well.
If displacement has been made in the a-direction using H.P Offset, displace Tray Ref in
a’-direction by the same degree.
If displacement has been made in b-direction using H.P Offset, displace Tray Ref in
b’-direction by the same degree.
If adjustment cannot be made by means ofH.P Offset, use S dog PL for adjustment because
the stop position of shuttle can be changed if S dog PL is moved.
方向
方向
a’
b’
基準位置
X-direction
Y-direction
Tray reference position
