4-8. Replacement and adjustment of Y-axis origin, minus limit and plus limit sensor
Adjust the width of conveyor rails to the minimum, then detach the Y cover, and replace the
sensor.
When the sensor replacement is finished, make confirmation as described below only for origin
sensor.
Execute “7. Y Holder” after initialization in test mode, and then confirm that the holder section
smoothly enters in the notch of the tray base.

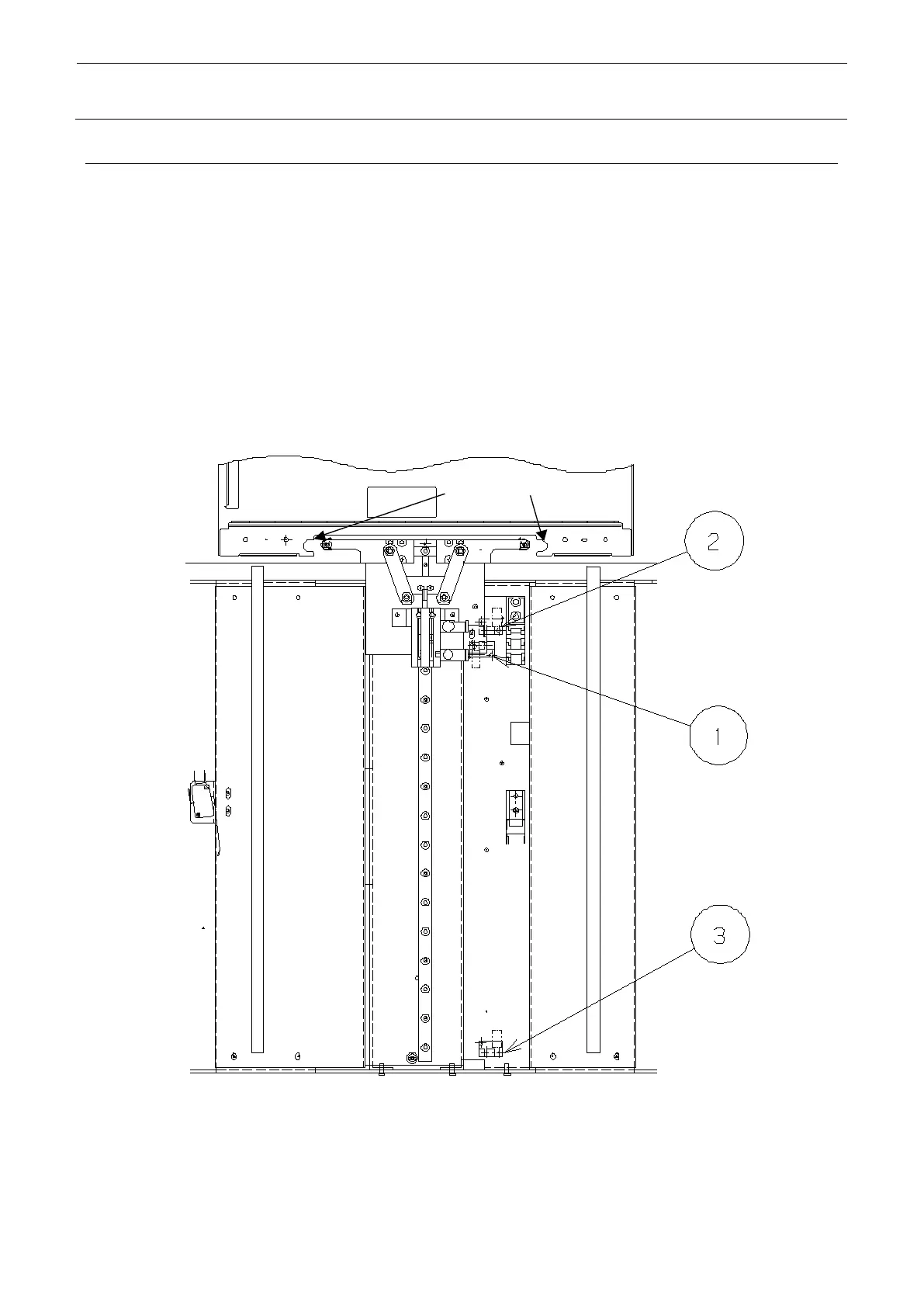

Y-axis origin sensor (part No.: HD00057000A)
Y minus limit detection (part No.: 40045713)
Y plus limit detection (part No.: 40045713)
4-8
