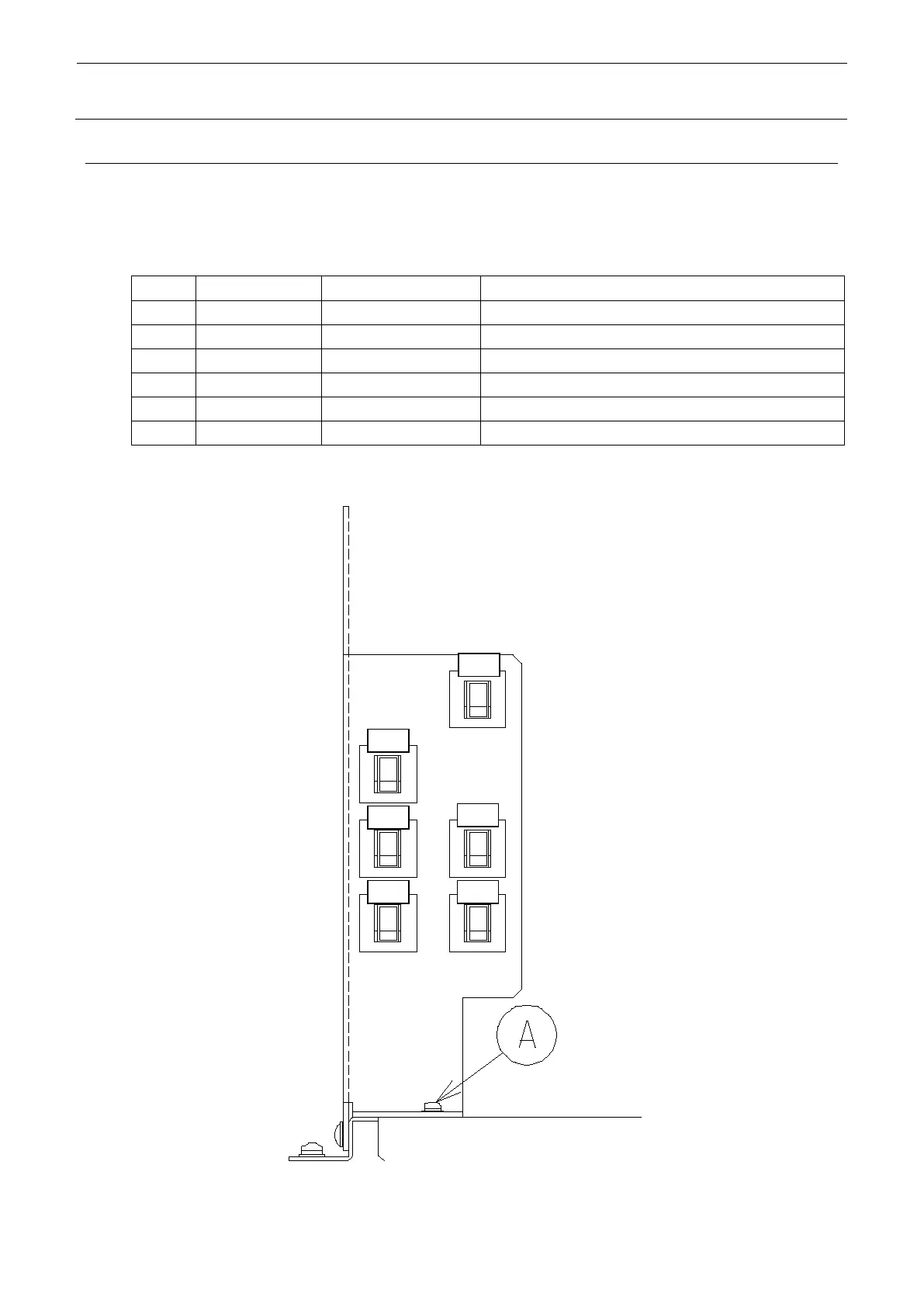

Maintenance
Guide
3-4
3-
3.
R
eplacement of circuit pr
otector
Remove the
screw
at
“A”
position, and the
circuit
protector can be pulled out
toward
you together
with
the bracket
.
Replace
with the part of the same
rating
in
the table below
.
Name
R
ating
Part No.
Description
CP
1
3A
HA00524000
0
Main power supply
CP2
10A
HA00524000C
Servo driver
CP4
5A
HA00524000A
X-
axis pulse driver
CP5
5A
HA00524000A
Y-
axis pulse
driver
CP6
5A
HA00524000
A
Shuttle axis pulse
driver
CP7
3A
HA00524000
0
Transfer motor
CP1
CP7
CP6
CP5
CP4
CP2
19
21
