JUKI TR6SNR User Manual

Maintenance Guide
7-1
7
．
Replacement of Pneumatic Component

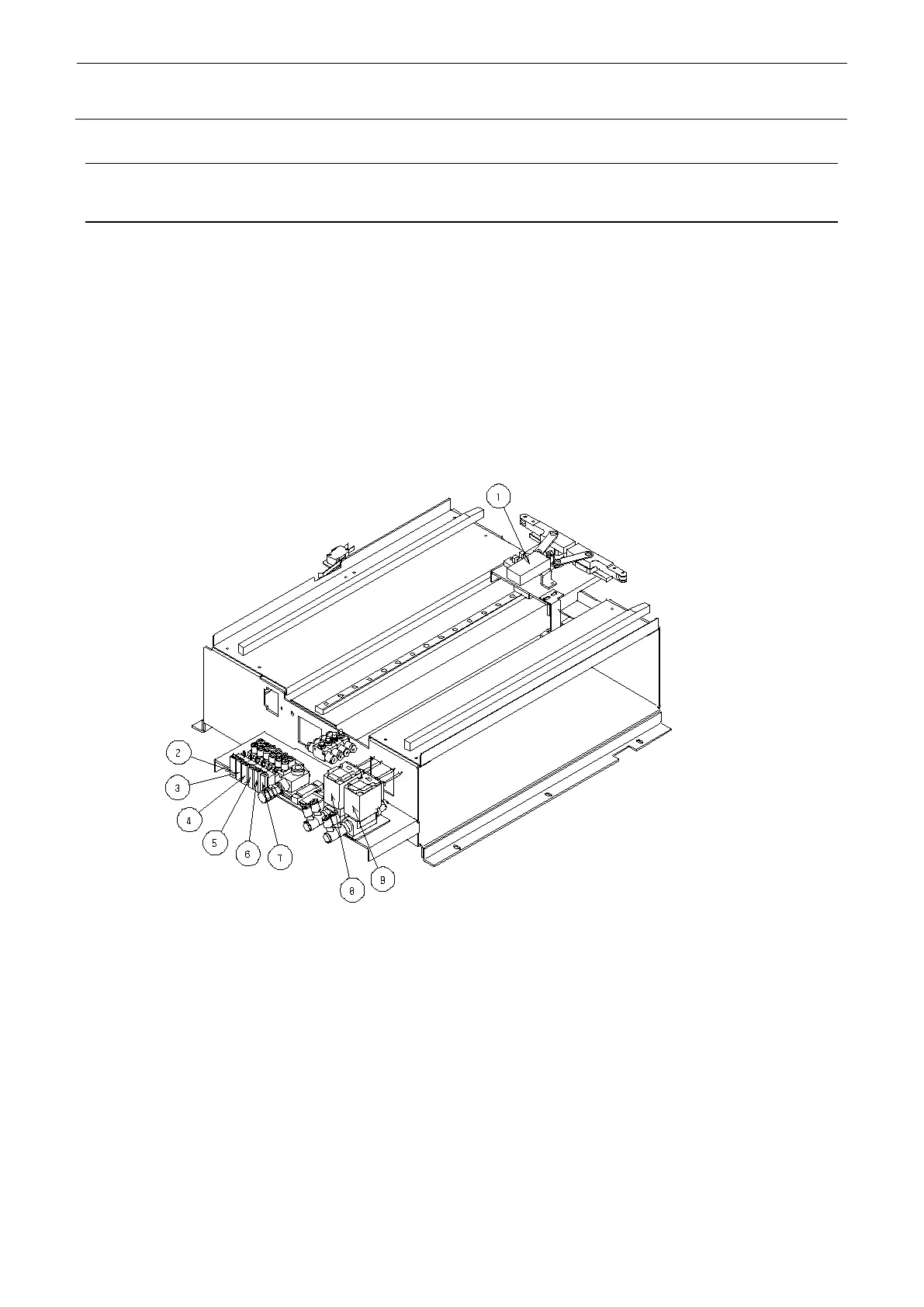

7-1. Layout diagram of pneumatic components in Y unit section
 Air cylinder Y holder (part No.: PA1001524A0)
 Solenoid valve BAGL (part No.: PV150209300)
 Solenoid valve BAGR (part No.: PV150209300)
 Solenoid valve PADL (part No.: PV150209300)
 Solenoid valve PADR (part No.: PV150209300)
 Solenoid valve Y holder (part No.: PV150209300)
 Solenoid valve shutter (part No.: PV150209300)
 Solenoid valve Y holder (part No.: HM001780010) (Optional slow 2 mode)
 Solenoid valve shutter (part No.: HM001780010) (Optional slow 2 mode)
