Maintenance
Guide
4-
23.
Replacem
ent and adjustment of transfer sensor

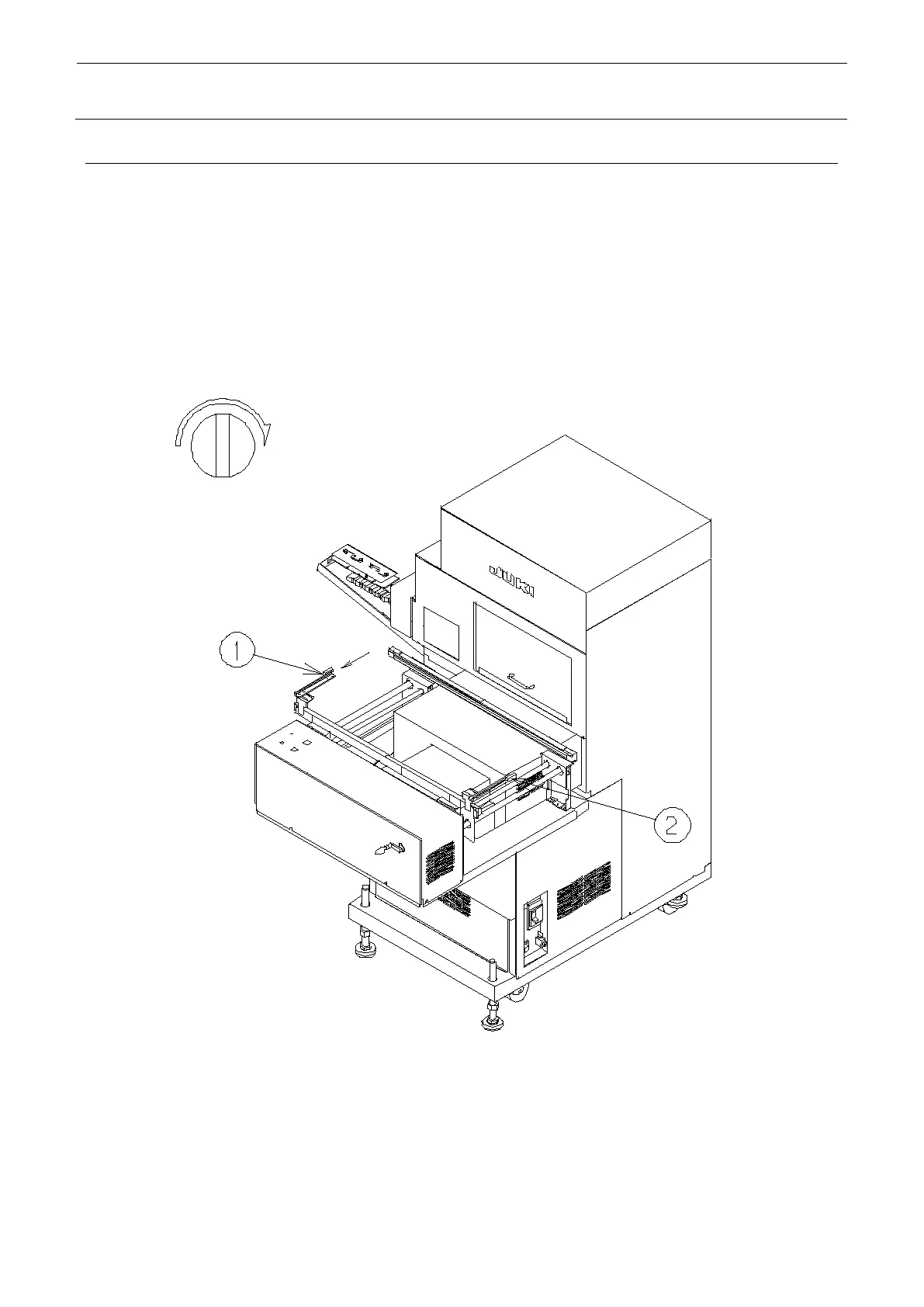

Replace the sensor, and make adjustment of sensitivity control knob.
Set the sensitivity control knob to 1/2.
Confirm that LED keeps unlit if no PWB is present but keeps lighting if a PWB is present in the
above condition.
CNV L sensor ASM (part No.: 40045190)
CNV R sensor ASM (part No.: 40045192)
S
ensitivity
control knob
Sensitivity control knob
MIN
MAX
4-
23
59
61
