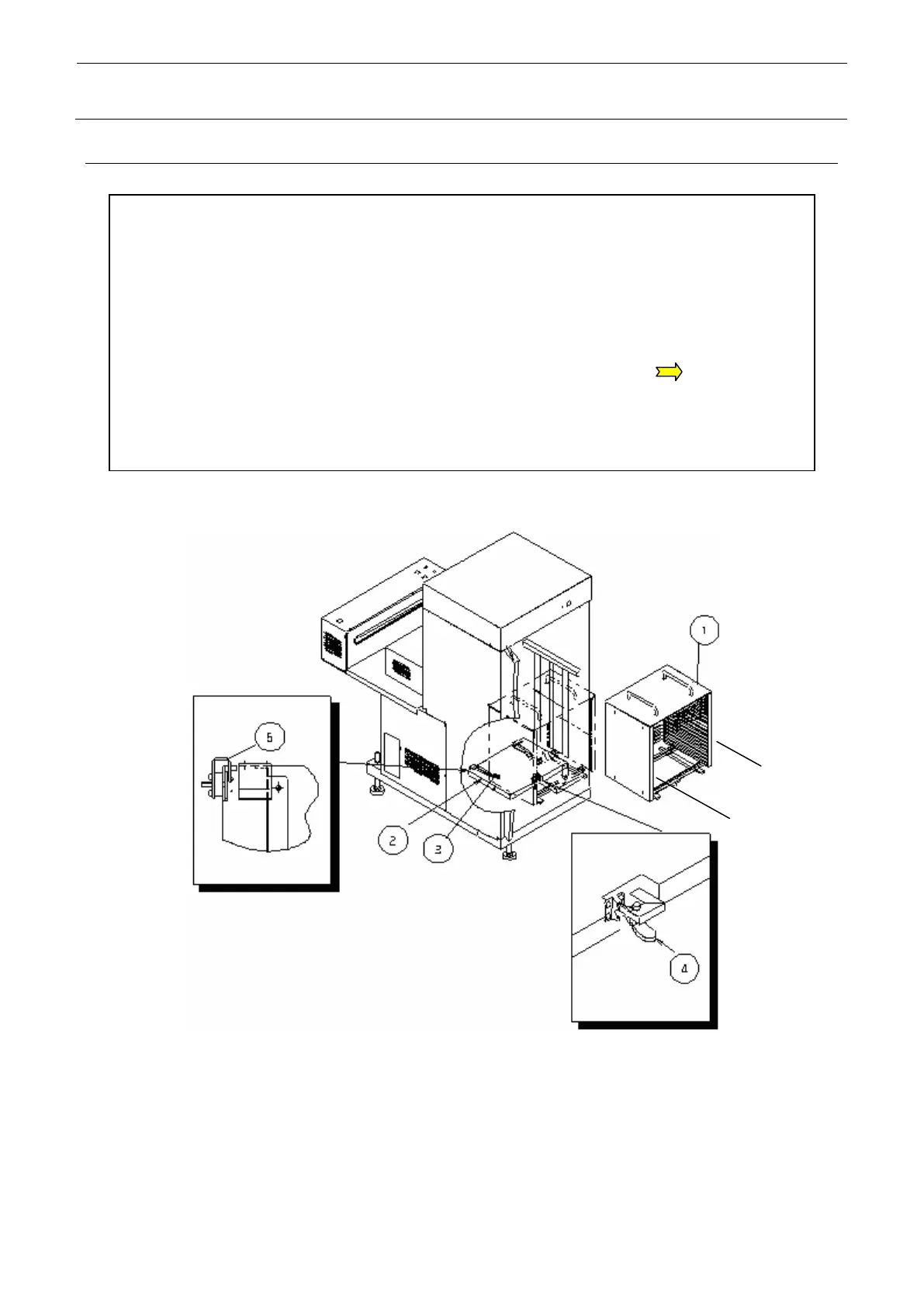

1-8. Mounting tray stacker
Open the door and release the lock lever
Place the tray stacker on the stacker base and push it all the way in along the stacker
guide .
Push the parts A and B of the tray stacker to make sure that the tray stacker has been
put all the way in, and then lock the lock lever .
Close the door.
∗ Note: When mounting the tray stacker with the air not supplied, check beforehand
that the shutter hook is closed in the direction indicated by
.
If the tray stacker is forcibly mounted in the open status, this may cause the
shutter hook to break.
