4-27. Replacement and Adjustment of the IS unit antenna (IS: Option)
Replacement of the antenna

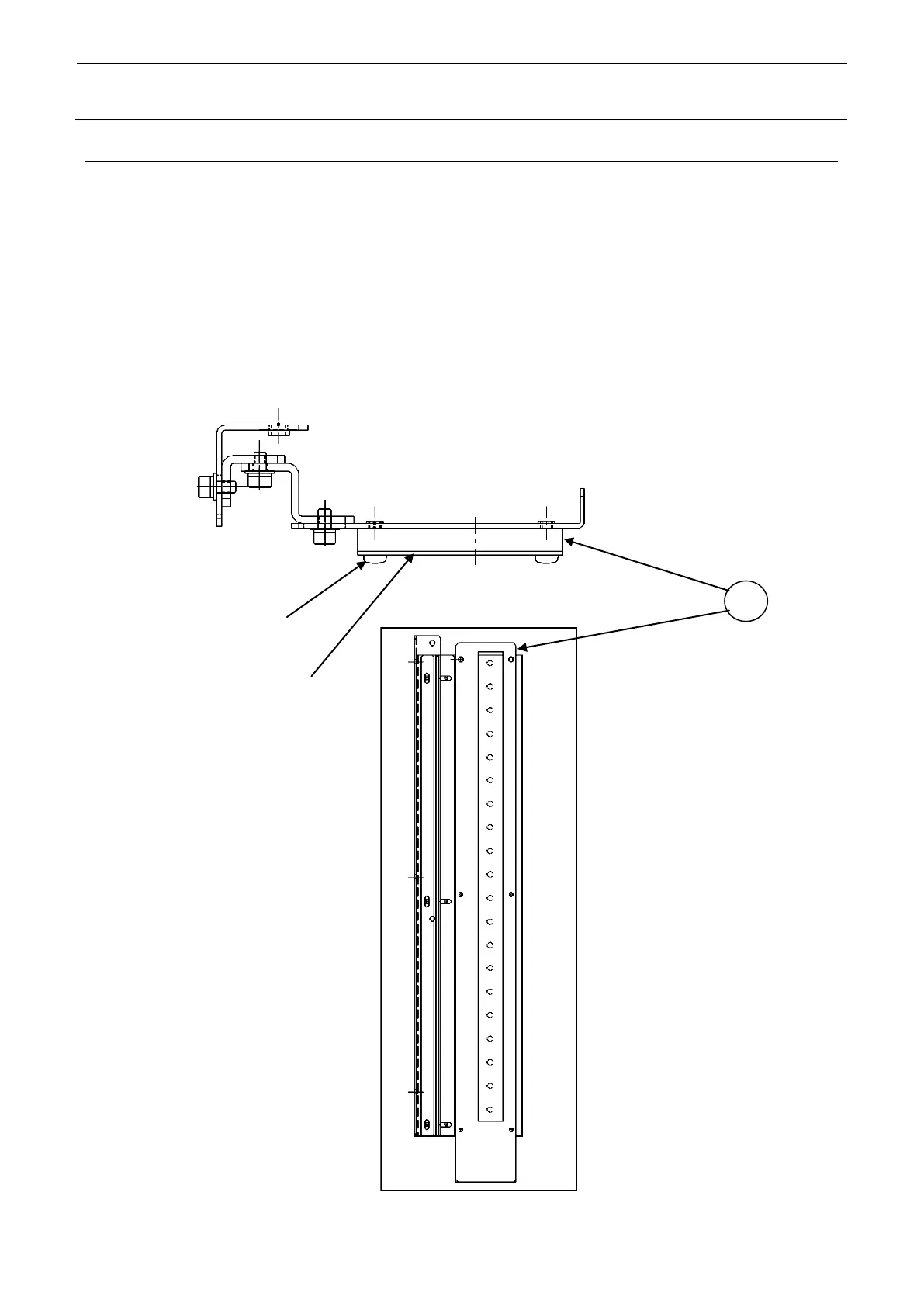

The antenna is installed in the upper side of the CD unit with M3 pan-head screws (in 6 positions)
together with the shield bracket. At replacement of the antenna, install it so that the sensor
detecting surface (with a mark) of the antenna may face to the stacker side.
Apply LOCKTITE 242 onto the pan-head screws.
① Antenna (part No.:40073666 ANTENNA ARRAY 14MM PITCH / 20 POSITION）
4-27
