6-9

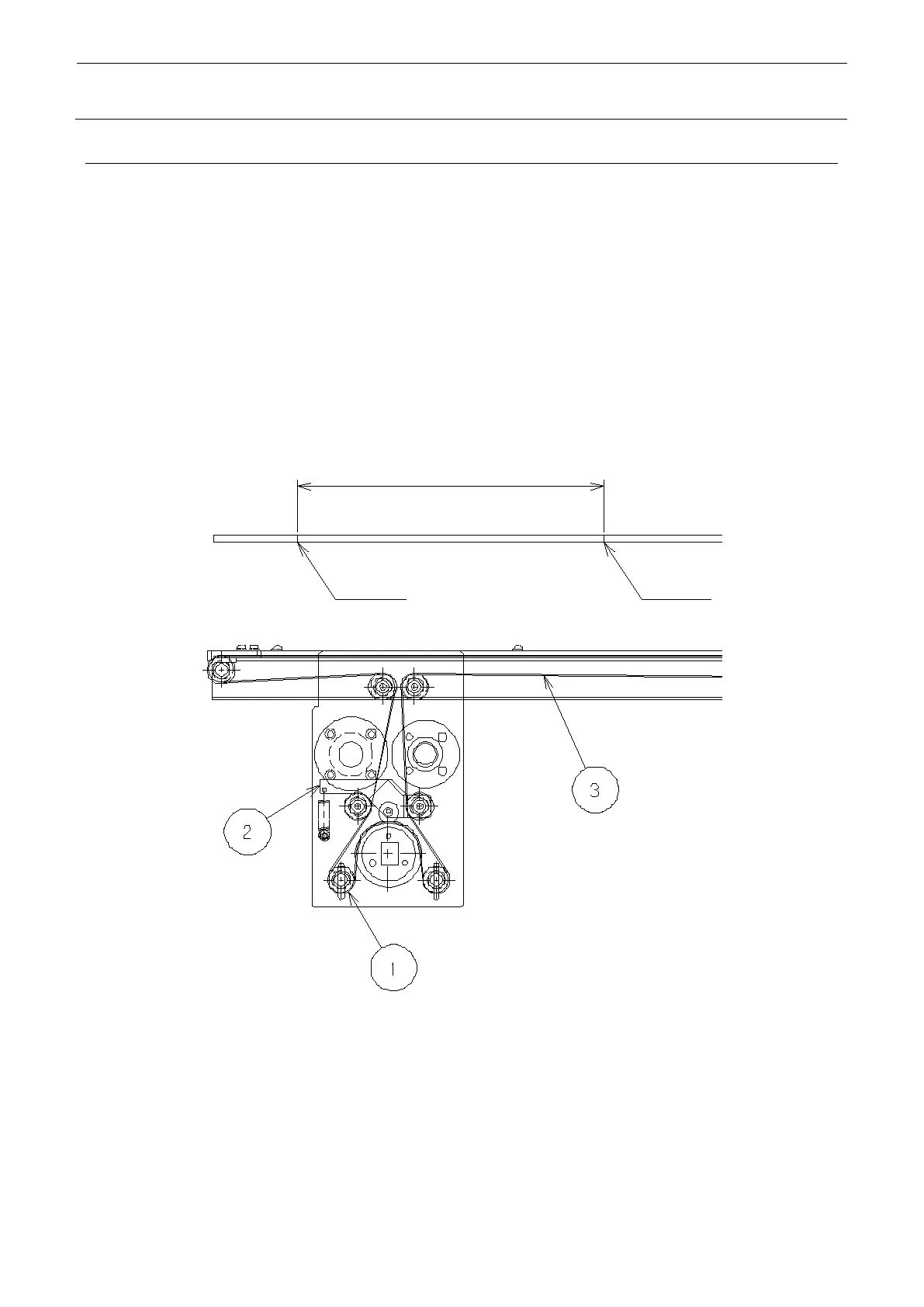

6-9. Replacement and adjustment of transfer belt
Loosen the transfer pulley .
Replace the transfer belt while somewhat raising the pinch roller BR .
While keeping the new transfer free of tension, give a mark at the position of 200 mm with a
permanent marker.
Place a new transfer belt, and execute tension adjustment by means of the transfer pulley .
Make adjustment so that the mark will come to the position of 201 to 202 mm.
C belt 6S (part No.: E2223723000) (TR6SNX, TR6SXLX）
C belt 6D (part No.: E3111723000) (TR6SNV)
