Keithley 3700A Series Reference Manual

Section 11: TSP command reference Series 3700A System Switch/Multimeter Reference Manual
11-200 3700AS-901-01 Rev. D/June 2018

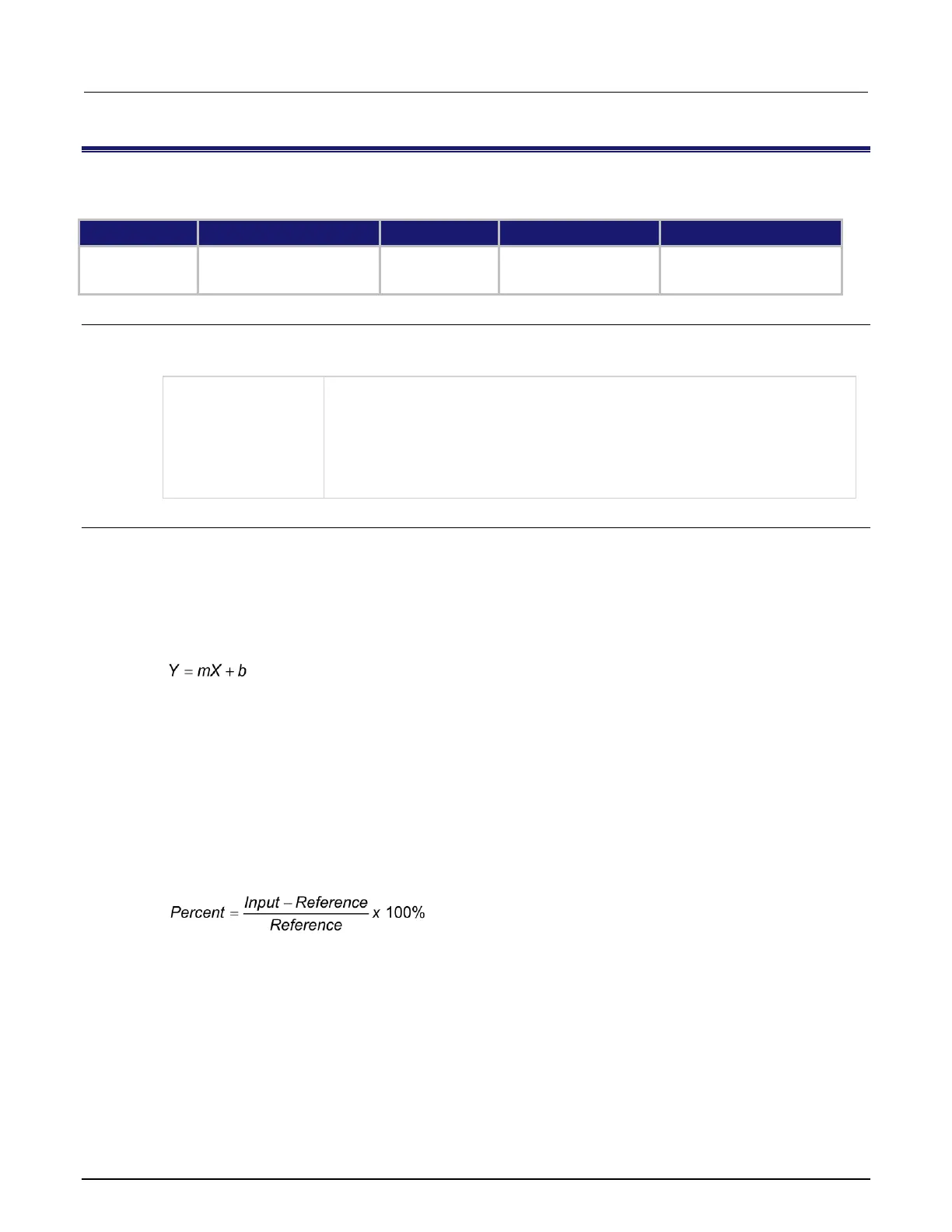

dmm.math.format
This attribute specifies which math operation is performed on measurements when math operations are enabled.
Type
TSP-Link accessible
Affected by
Where saved
Default value
Attribute (RW)
Yes
Reset
DMM reset
Recall setup
Create configuration script
Save setup
2 (dmm.MATH_PERCENT)
Usage
state = dmm.math.format
dmm.math.format = state
state
Math operation to be performed on measurements:
▪ dmm.MATH_NONE or 0
▪ dmm.MATH_MXB or 1
▪ dmm.MATH_PERCENT or 2
▪ dmm.MATH_RECIPROCAL or 3
Details
This is not available for "nofunction". If this command is queried when "nofunction" is
selected, nil is returned. If it is written when "nofunction" is selected, an error is returned.
If you set this attribute to dmm.MATH_NONE, math operation is disabled, even if math operation
(dmm.math.enable) is enabled.
Use a setting of dmm.MATH_MXB to have
where:
• Y is the result
• X is the normal measurement
• m is the user-entered constant for scale factor (dmm.math.mxb.mfactor)
• b is the user-entered constant for offset (dmm.math.mxb.bfactor)
If you are using relative offset measurement control (dmm.rel.enable), the relative offset reading is
used for X.
Use a setting of dmm.MATH_PERCENT to have:
where:
• Percent is the result
• Input is the normal measurement (if using dmm.rel.enable, it will be the relative offset value)
• Reference is user entered constant (dmm.math.percent)
Use a setting of dmm.MATH_RECIPROCAL for 1/X operation, where X is normal or the measurement
value with relative offset applied.
The math operation is performed before any of the enabled limit testing.
