Kohler Command PRO CH440 Service Manual

11.8
Section 11
Reassembly
Timing Marks
Timing Marks
3. Rotate the cranksha to TDC so the timing mark
(dimple) on the smaller crankgear is in the 4
o’clock position. Install the camsha into the
crankcase, aligning the timing marks on the two
gears. See Figure 11-29.
Figure 11-30. Internal Details.
3. Install the closure plate to the crankcase. Carefully
seat the ends of the camsha and balance sha
into their mating bearings. Rotate the cranksha
slightly to help engage the governor gear teeth.
4. Install the hex fl ange screws securing the closure
plate to the crankcase. Torque hex fl ange screws
to 24 N·m (212 in. lb.). See Figure 11-31 or 11-32
for the torque sequence.
6
6
2
2
4
4
1
1
5
5
3
3
Figure 11-31. CH270 Closure Plate Torque
Sequence.

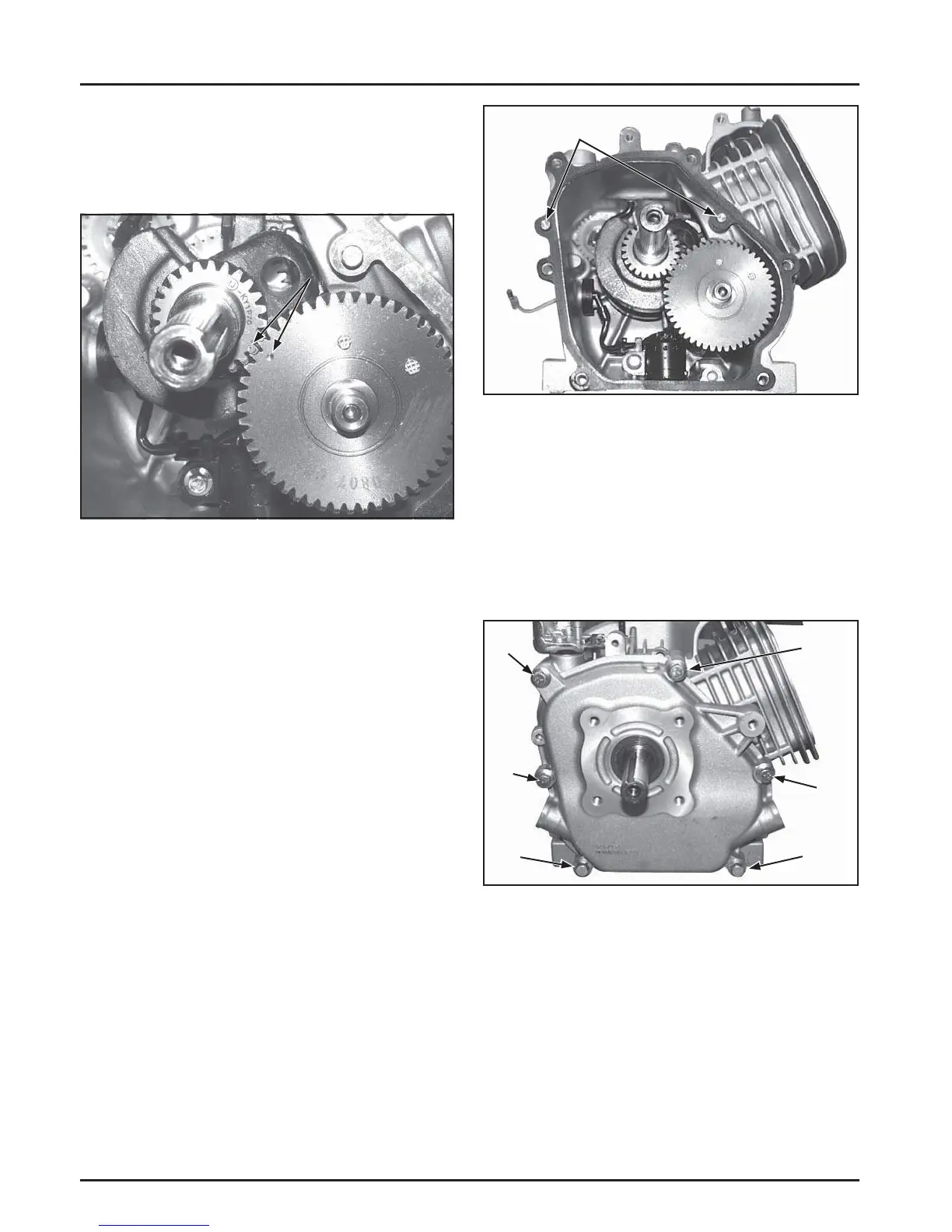

Figure 11-29. Aligning Crankshaft and Camshaft
Timing Marks.
4. Install the original shims on the cranksha and
camsha .
Install Closure Plate
1. Check to make sure the sealing surfaces of the
crankcase and closure plate are clean and free of
nicks/burrs.
2. Install the two dowel pins into the locations
shown in the crankcase. Install the new closure
plate gasket (dry) onto the dowel pins.
NOTE: Make sure the governor lever is against the
cup on the governor gear assembly.
Completed assembly, before closure plate is
installed, should look like Figure 11-30.
Dowel Pins
Dowel Pins
