9.9
Section 9
Disassembly
9

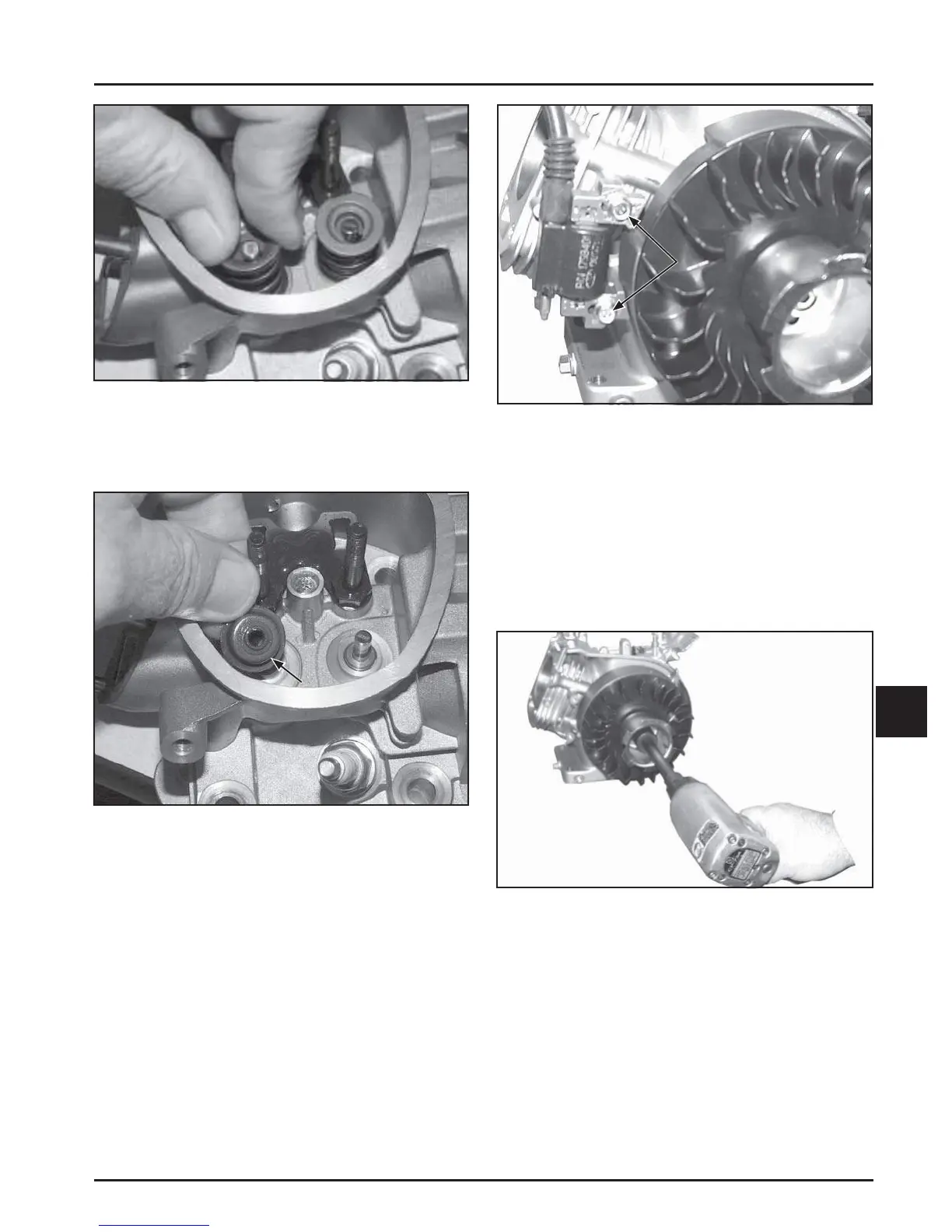

Figure 9-34. Valve Keeper Removal.
2. Remove and replace the valve stem seals
whenever the cylinder head is serviced or
disassembled. See Figure 9-35.
Valve
Seal
Figure 9-35. Removing Valve Stem Seal.
Remove Ignition Module
1. Remove the two hex fl ange screws securing the
ignition module to the crankcase. Remove the
module. See Figure 9-36.
Hex Screws
Figure 9-36. Remove Ignition Module Screws.
Remove Flywheel
NOTE: Whenever possible, an impact wrench should
be used to loosen the fl ywheel retaining nut.
A fl ywheel strap wrench may be used to hold
the fl ywheel when loosening or tightening
the fl ywheel retaining nut.
1. Remove the fl ywheel retaining nut. See Figures
9-37 and 9-38.
Figure 9-37. Removing Flywheel Nut Using an
Impact Wrench.
