11.15
Section 11
Reassembly
11

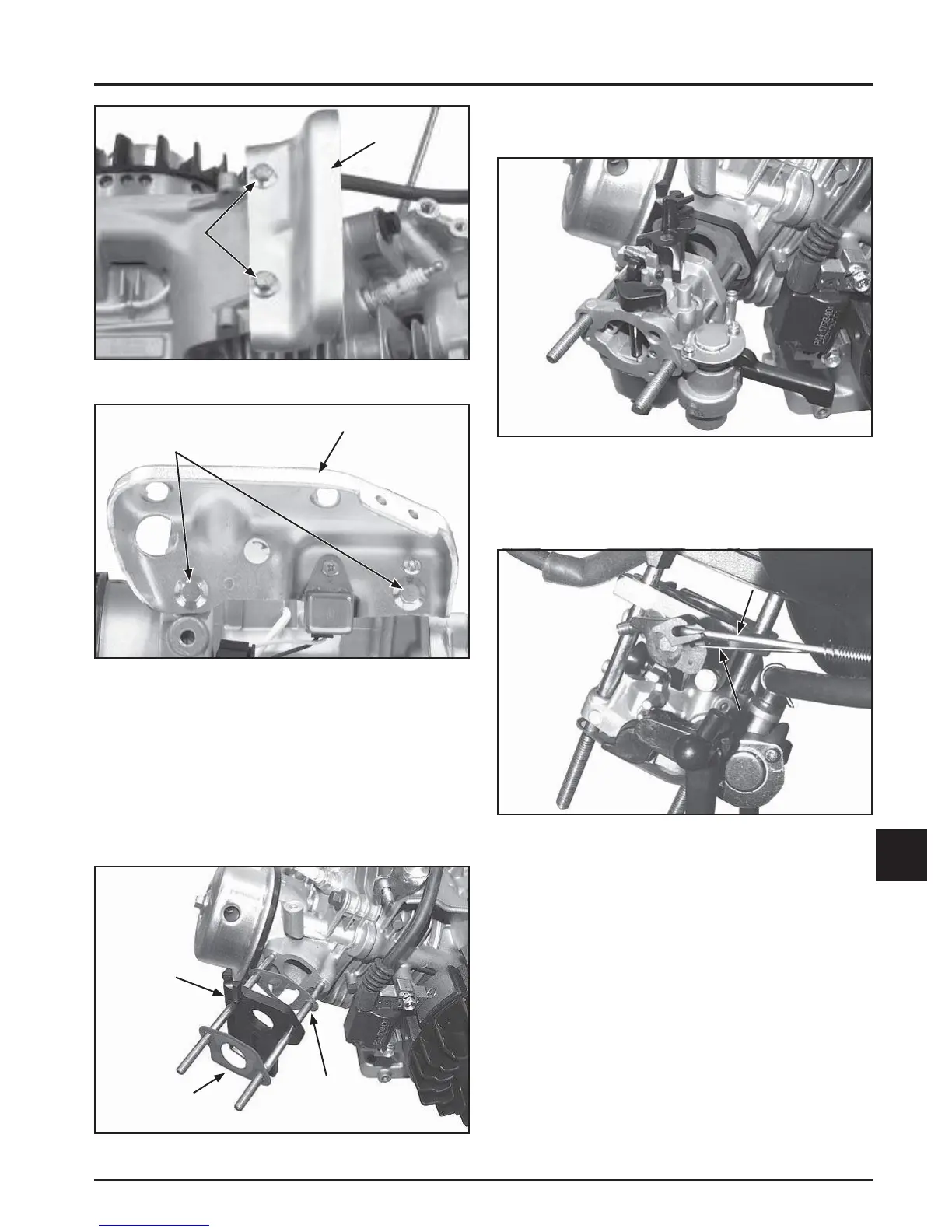

Figure 11-57. Carburetor Spacer and Gaskets.
Insulator to
Cylinder Head
Gasket
Insulator
Carburetor to
Insulator Gasket
Fuel Tank BracketInstall Hex Flange
Screws
Fuel Tank
Bracket
Install Hex
Flange
Screws
Figure 11-55. Install Fuel Tank Bracket.
Figure 11-56. Install Fuel Tank Bracket.
NOTE: The threaded stud and bracket with shut
down switch should not be removed.
Install Carburetor
1. Install a new insulator to cylinder head gasket
onto the carburetor studs, followed by the
insulator and the carburetor to insulator gasket.
See Figure 11-57.
2. Push the carburetor all the way onto the studs.
See Figure 11-58.
Figure 11-58. Install Carburetor.
3. Connect the thro le link and dampening spring
into their respective holes in the thro le lever. See
Figure 11-59.
Throttle Link
Dampening
Spring
Figure 11-59. Install Carburetor Throttle Link.
Install Engine Shields and Air Cleaner
Base
CH270
1. Install the upper shield on the cylinder, engaging
the tab hole on the fuel tank bracket stud. See
Figure 11-60.
To Next Page
