Kohler Command PRO CH440 Service Manual

1.9
Section 1
Safety and General Information
1

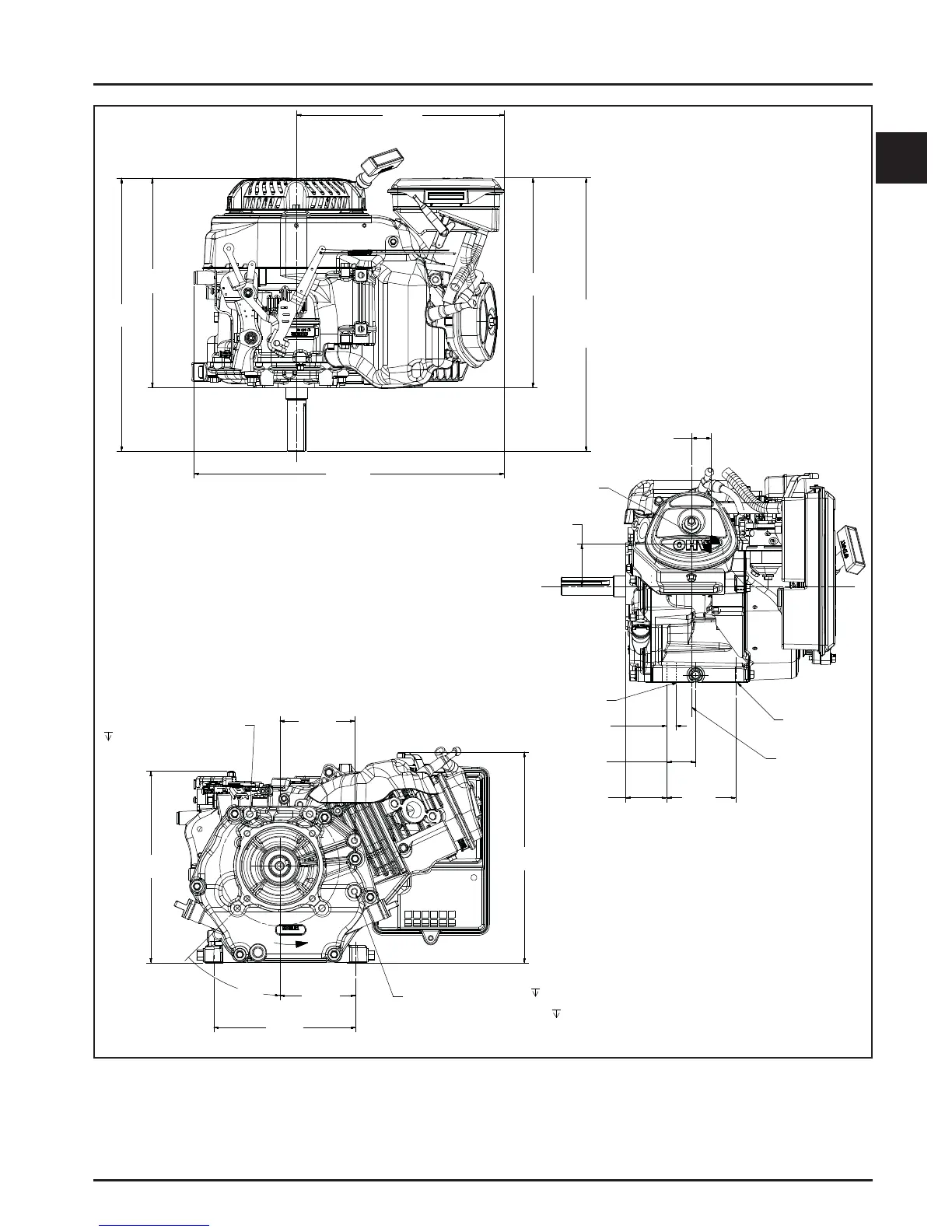

Figure 1-8. Typical Engine Dimensions-CH395 With Low-Profi le Air Cleaner.
Dimensions in millimeters.
Inch equivalents shown in ( ).
57.17
[2.251]
40.50
[1.595]
13.00
[0.512]
2X Ø 11.00 x 24.00 SLOT
[0.433] X [11.02]
58.31
[2.296]
APPROXIMATE
CENTER OF
GRAVITY
27.33
[1.076]
2X Ø 11.25
[0.443]
CYLINDER
C
L
96.00
[3.780]
431.72
[16.997]
379.80
[14.953]
291.28
[11.468]
289.19
[11.385]
289.88
[11.413]
378.40
[14.898]
Ø 1’’STRAIGHT
PTO
264.30
[10.406]
195.50
[7.697]
105.00
[4.134]
4X 45°
4X 3/8-16 UNC 2B INCH
18 MM FULL THREAD
103.00
[4.055]
290.31
[11.430]
METRIC FLANGE:
6X M8 X 1.25-6H TAP 18 MIN.
SAE B FLANGE:
6X 5/16-24 UNF 2B INCH 18 MIN.
