Air Cleaner and Air Intake System

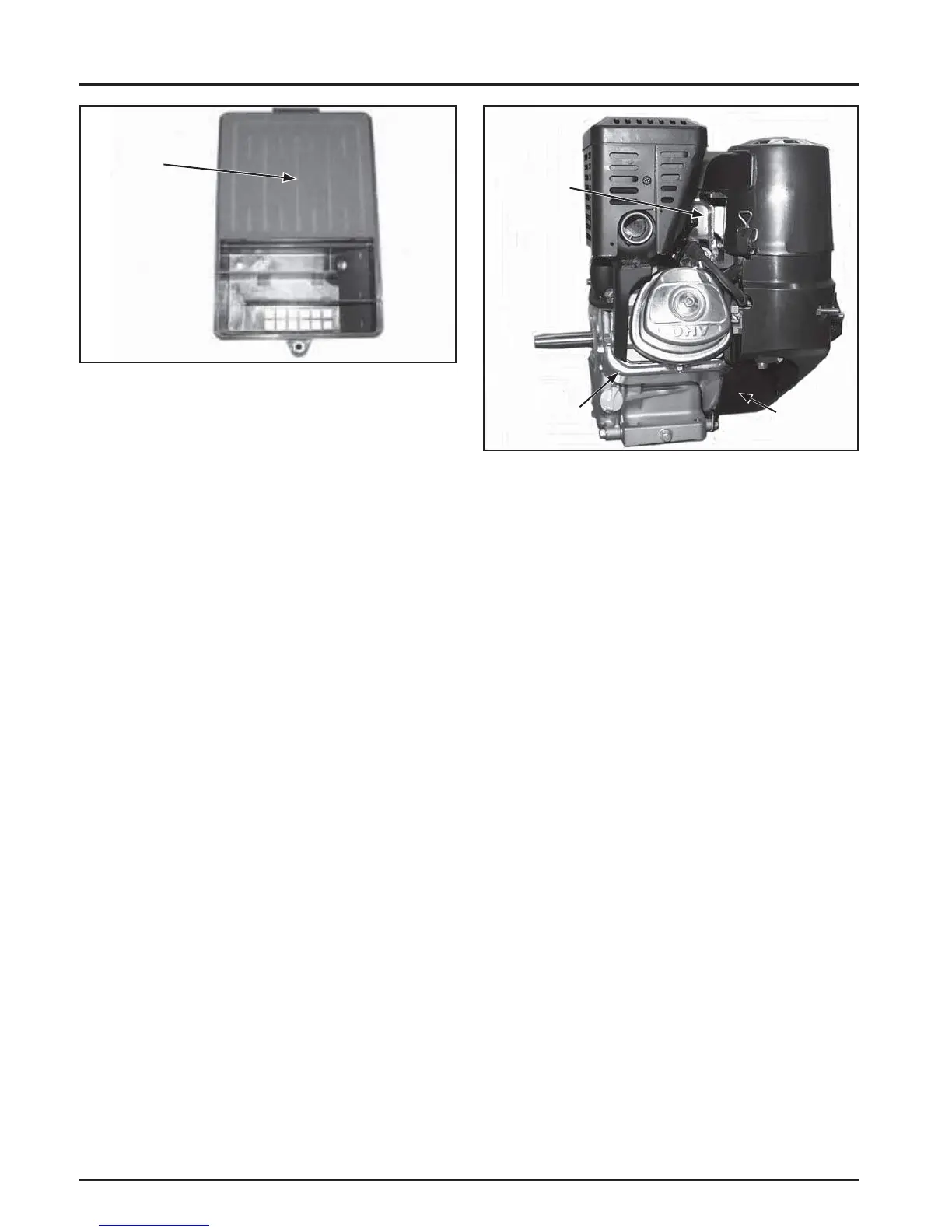

Figure 4-8. Remove Foam Element.
3. Wash the foam element in warm water with
detergent. Rinse the element thoroughly until all
traces of detergent are eliminated. Squeeze out all
excess water (do not wring). Allow the element to
air dry.
4. Lightly oil the precleaner with new engine oil.
Squeeze the precleaner to evenly distribute the oil
and remove any excess.
5. When servicing the foam air cleaner element,
clean and check the air cleaner case and outer
cover for damage, distortion, or an improper
seal. Replace any components which are bent or
damaged.
6. Install the element into the air cleaner base.
7. Reinstall the cover and secure with the screw.
NOTE: Do not operate engine without the air cleaner
element; excessive piston and/or cylinder
wear may result.
Air Intake/Cooling System
To ensure proper cooling, make sure the grass screen,
cooling fan fi ns, and external surfaces of the engine
are kept clean at all times.
Every 100 hours of operation (more o en under
extremely dusty, dirty conditions), remove the blower
housing and other cooling shrouds. Clean the cooling
fi ns and external surfaces as necessary. Make sure the
cooling shrouds are reinstalled. See Figure 4-9.
Lower
Shroud
Upper
Shroud
Blower
Housing
Figure 4-9. Engine Shrouds.
Remove
Foam
Element
