Kohler Command PRO CH440 Service Manual

1.8
Section 1
Safety and General Information

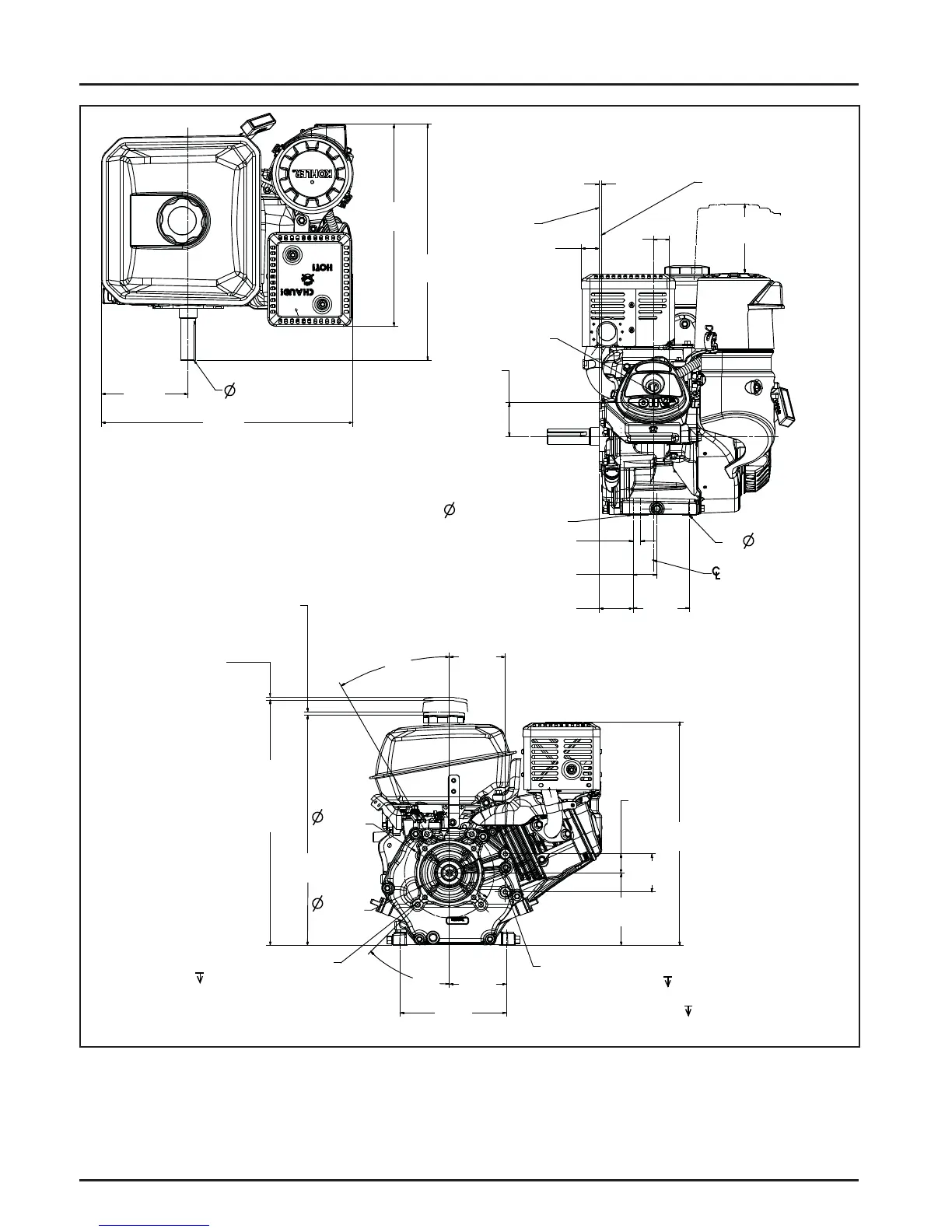

Figure 1-7. Typical Engine Dimensions-CH395.
147.11
[5.792]
427.53
[16.832]
1 IN. STRAIGHT
PTO
402.84
[15.860]
344.57
[13.566]
6.00
[0.236]
6.00
[0.236]
GAS CAP
REMOVAL
U.S.
50-STATE
GAS CAP
REMOVAL
451.76
[17.79]
WITH U.S.
50-STATE
GAS CAP
165.10
[6.500]
127.00
[5.000]
4X 3/8-16 UNC 2B INCH
18 MM FULL THREAD
4X 45º
105.00
[4.134]
195.50
[7.697]
METRIC FLANGE:
6X M8 X 1.25-6H TAP 18 MIN.
SAE B FLANGE:
6X 5/16-24 UNF 2B INCH 18 MIN.
411.63
[16.206]
35.00
[1.378]
133.50
[5.256]
70.00
[2.756]
103.00
[4.055]
2X 30º
424.00
[16.693]
57.52
[2.265]
40.50
[1.594]
13.00
[0.512]
CYLINDER
2X 11.25
[0.443]
96.00
[3.780]
117.67
[4.633]
AIR
CLEANER
COVER
REMOVAL
27.33
[1.076]
SECONDARY
MOUNTING FACE
3.75
[0.148]
PRIMARY
MOUNTING
FACE
CENTER
OF
GRAVITY
30.20
[1.189]
58.31
[2.296]
2X 11.00 X 24.00 SLOT
[0.433] X [0.945]
Dimensions in millimeters.
Inch equivalents shown in ( ).
