WaveSurfer DSO
WS-OM-E Rev B 123
Acquisition Status
For each general category of scope operation, you can view a summary of your setups. These
dialogs are accessed from the menu bar drop-down menus. The categories are as follows:
• Vertical -- select Channels Status . . . from the drop-down menu
• Timebase -- select Acquisition Status . . . from the drop-down menu
• Trigger -- select Acquisition Status . . . from the drop-down menu
• Math -- select Math Status . . . Zoom Status . . . or Memory Status from the drop-down
menu
In addition to these dialogs, summaries are also provided for XY setups, memory (M1-M4)
setups, and time stamps for sequence mode sampling.

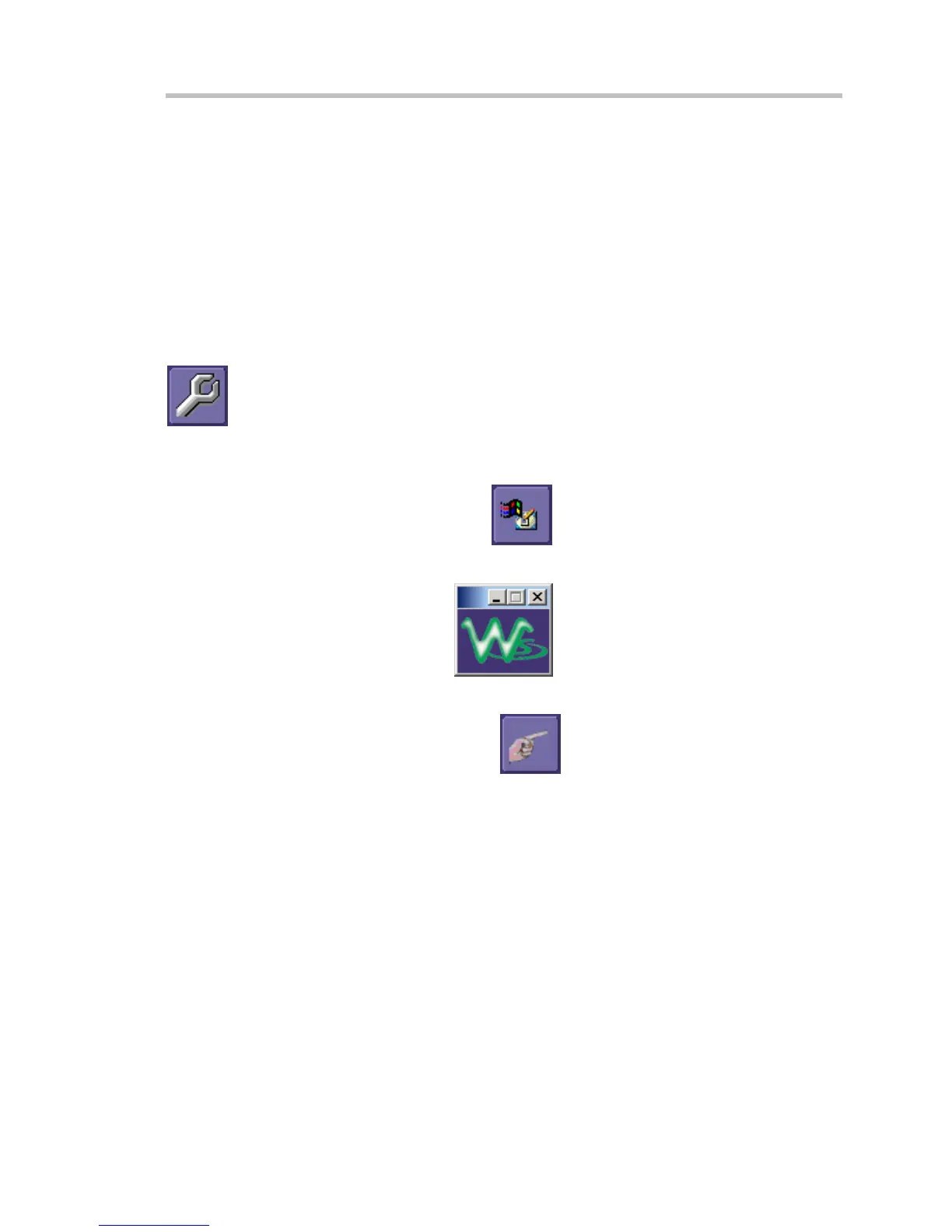

Service
This button provides access to service dialogs, which are for the sole use of LeCroy
service personnel. A security code is required to gain access.
Show Windows Desktop
Touching the Show Windows Desktop button in the main "Utilities" dialog minimizes
the instrument application to reveal the underlying desktop. To maximize the application, touch
the shortcut icon:
Touch Screen Calibration
Touching the Touch-Screen Calibration button starts the calibration procedure. During
the procedure, you will be prompted to touch the center of a small cross in 5 key locations on the
touch screen. Because sufficient accuracy cannot be achieved using your finger, use a stylus
instead for this procedure. The calibration has a ten-second timeout in case no cross is touched.
To avoid parallax errors, be sure to place your line of sight directly in front of each cross before
touching it.
§ § §
