LeCroy WAVESURFER User Manual

WaveSurfer DSO
WS-OM-E Rev B 93
To Set Up Measure Gate
1. In the menu bar, touch Measure Setup...
2. Touch inside the Start data entry field and enter a value, using the front panel A
DJUST
knob or pop-up numeric keypad. Or, you can simply touch the leftmost grid line and drag
the gate post to the right.
3. Touch inside the Stop data entry field and enter a value, using the front panel A
DJUST
knob or pop-up numeric keypad. Or, you can simply touch the rightmost grid line and
drag the gate post to the left.

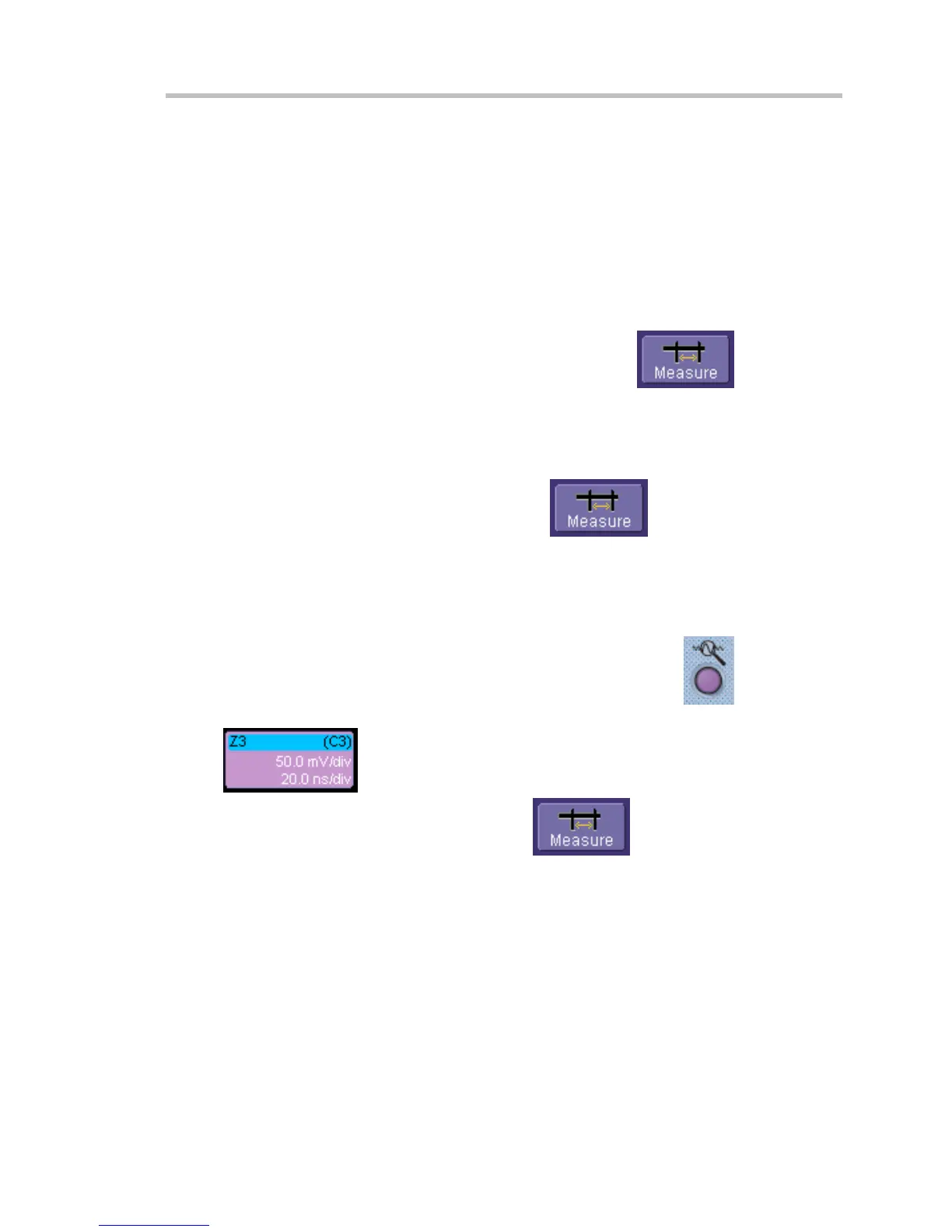

To Select a Parameter
From a Vertical Setup Dialog
1. In the "Cx Vertical Adjust" dialog, touch the Measure button
.
2. Select a parameter from the pop-up menu. The parameter is assigned to the next
"available" parameter, or the last one if all are used.
3. Select another “Px” location and parameter, or touch Close.
From a Math Setup Dialog
1. In the "Math" dialog, touch the Measure button
.
2. Select a parameter from the pop-up menu. The parameter is assigned to the next
"available" parameter, or the last one if all are used.
3. Select another “Px” location and parameter, or touch Close.
From a Zoom Setup Dialog
1. Create a zoom trace by pushing the front panel QuickZoom button
.
2. Touch the descriptor label for the zoom trace you want to measure, for example
. This will open the setup dialog for that zoom trace.
3. In the "Zx" dialog, touch the Measure button
.
4. Select a parameter from the pop-up menu. The parameter is assigned to the next
available Px location, or the last one if all are used.
