WaveSurfer DSO
WS-OM-E Rev B 115
Actions
You can decide the actions to occur upon your waveforms' passing or failing, by selecting one or
all of the following:
• stop
• audible alarm
• print image of display
• emit pulse
• save waveform

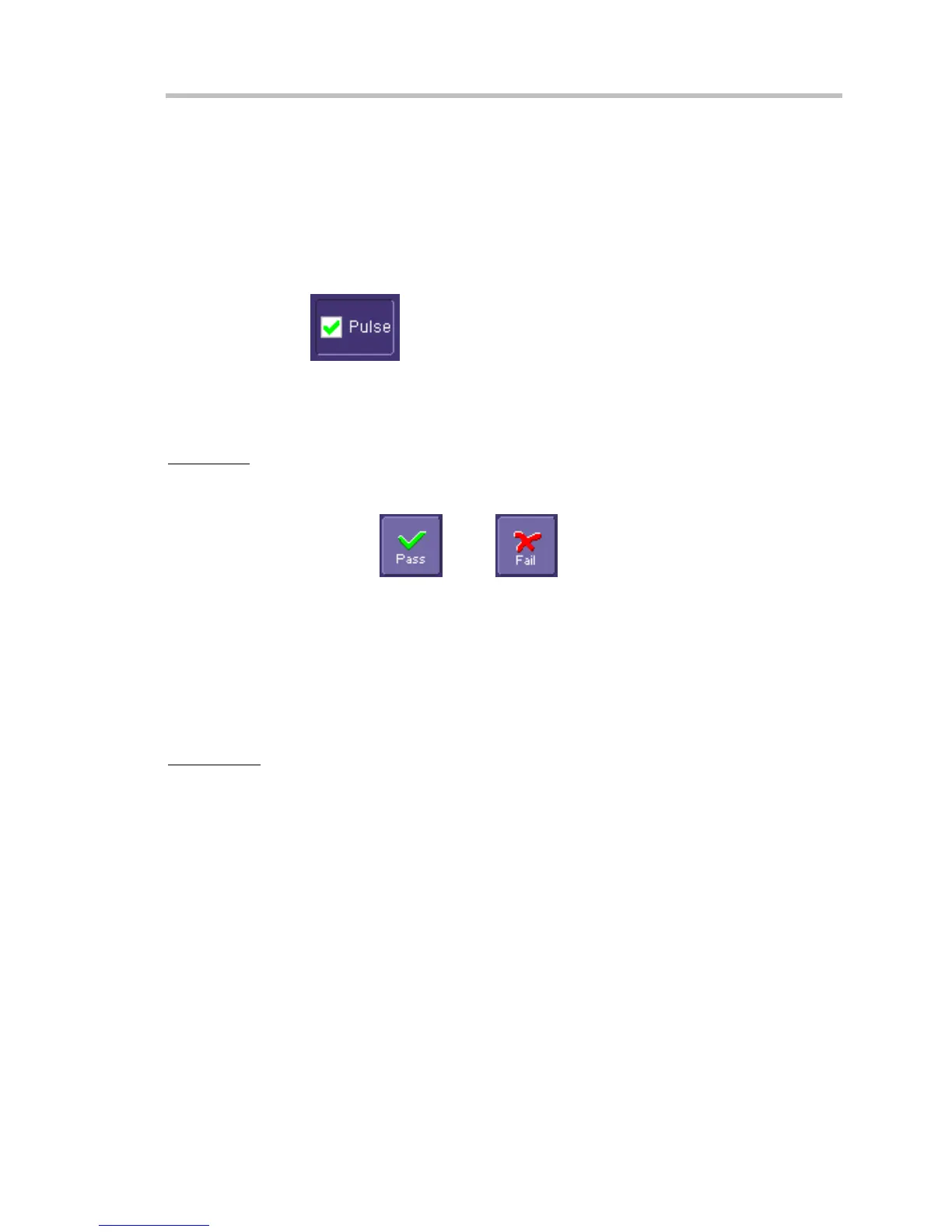

The selection Pulse
causes a pulse to be output through the Aux Out connector at
the front of the scope. This pulse can be used to trigger another scope. You can set the amplitude
and width of the pulse as described in Auxiliary Output Signals.
Setting Up Pass/Fail Testing
Initial Setup
1. Touch Analysis in the menu bar, then Pass/Fail Setup... in the drop-down menu.
2. Touch the Actions tab.
3. Touch either the Pass
or Fail button to set the actions to occur upon
your waveform's passing or failing the test.
4. Touch the actions you want to occur: stop test, sound alarm, print result, emit pulse, or
save the waveform. If you want to have the results printed and your scope is not
equipped with a printer, be sure that it is connected to a local or network printer. See
Printing.
5. If you want to save your waveform automatically, touch the Save Setup. This will take
you out of the current dialog and will open the "Save Waveform" dialog. See Saving and
Recalling Waveforms.
Mask Testing
1. Touch Analysis in the menu bar, then Pass/Fail Setup... in the drop-down menu.
2. Touch inside the Source1 field and select a source from the pop-up menu.
3. From the "Test" mini-dialog, make a selection in the Test is True when group of buttons:
