WaveSurfer DSO
WS-OM-E Rev B 77

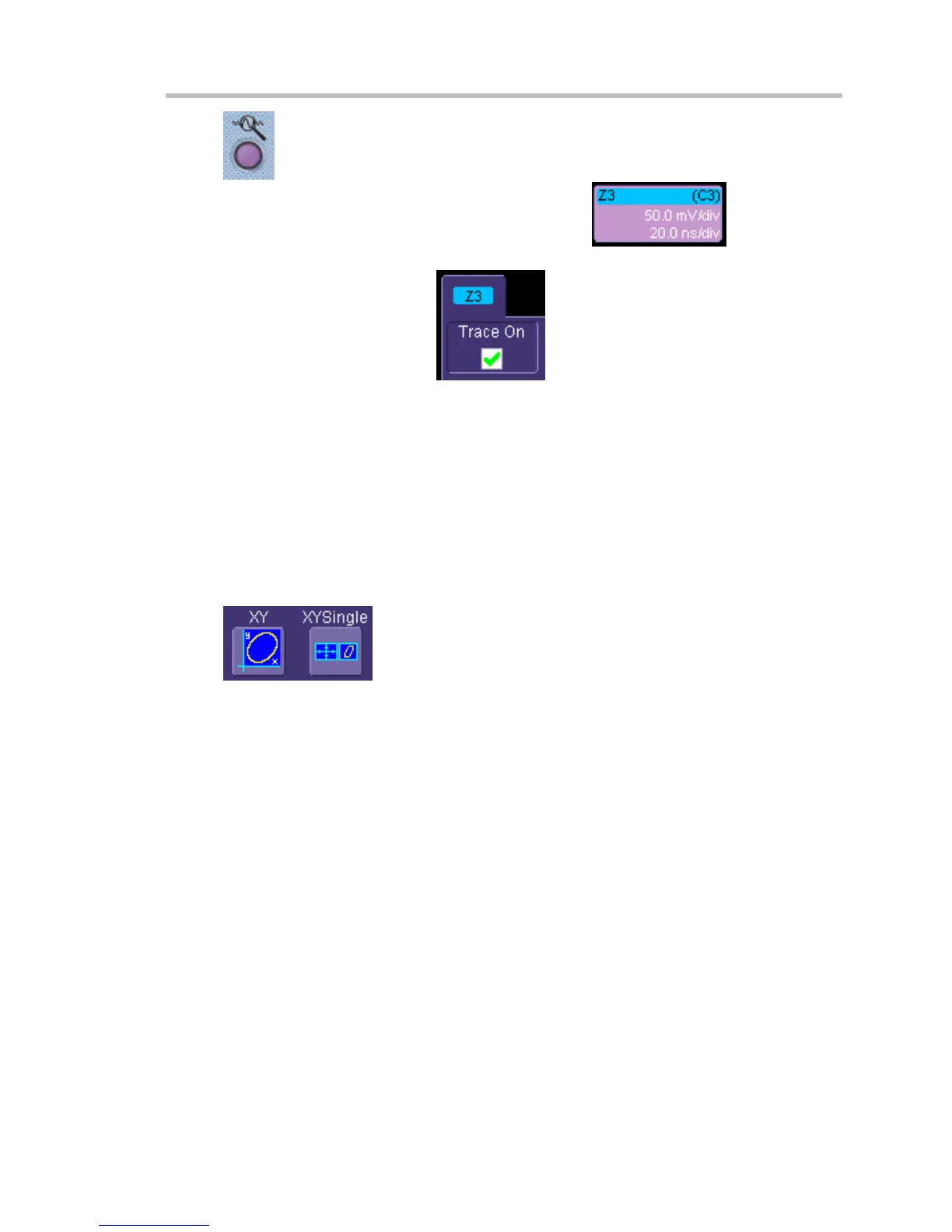

2. To turn off zooms selectively, touch the Zx trace label
for the zoom
you want to turn off. The zoom setup dialog opens.
3. Touch the Trace On checkbox
to delete the check mark and disable the
zoom trace.
XY Display
Use XY displays to measure the phase shift between otherwise identical signals. You can display
either voltage on both axes or frequency on both axes. The traces must have the same X-axis.
The shape of the resulting pattern reveals information about phase difference and frequency
ratio.
To Set Up XY Displays
1. In the menu bar, touch Display; then touch Display Setup... in the drop-down menu.
2. Choose an XY display by touching one of the XY display mode buttons
. You have the choice of showing the two waveforms on just the XY
grid, or you can also show the input waveforms on a single.
3. Touch inside the Input X and Input Y fields and select your input sources from the pop-
up menus. The inputs can be any combination of channels, math functions, and memory
locations:
