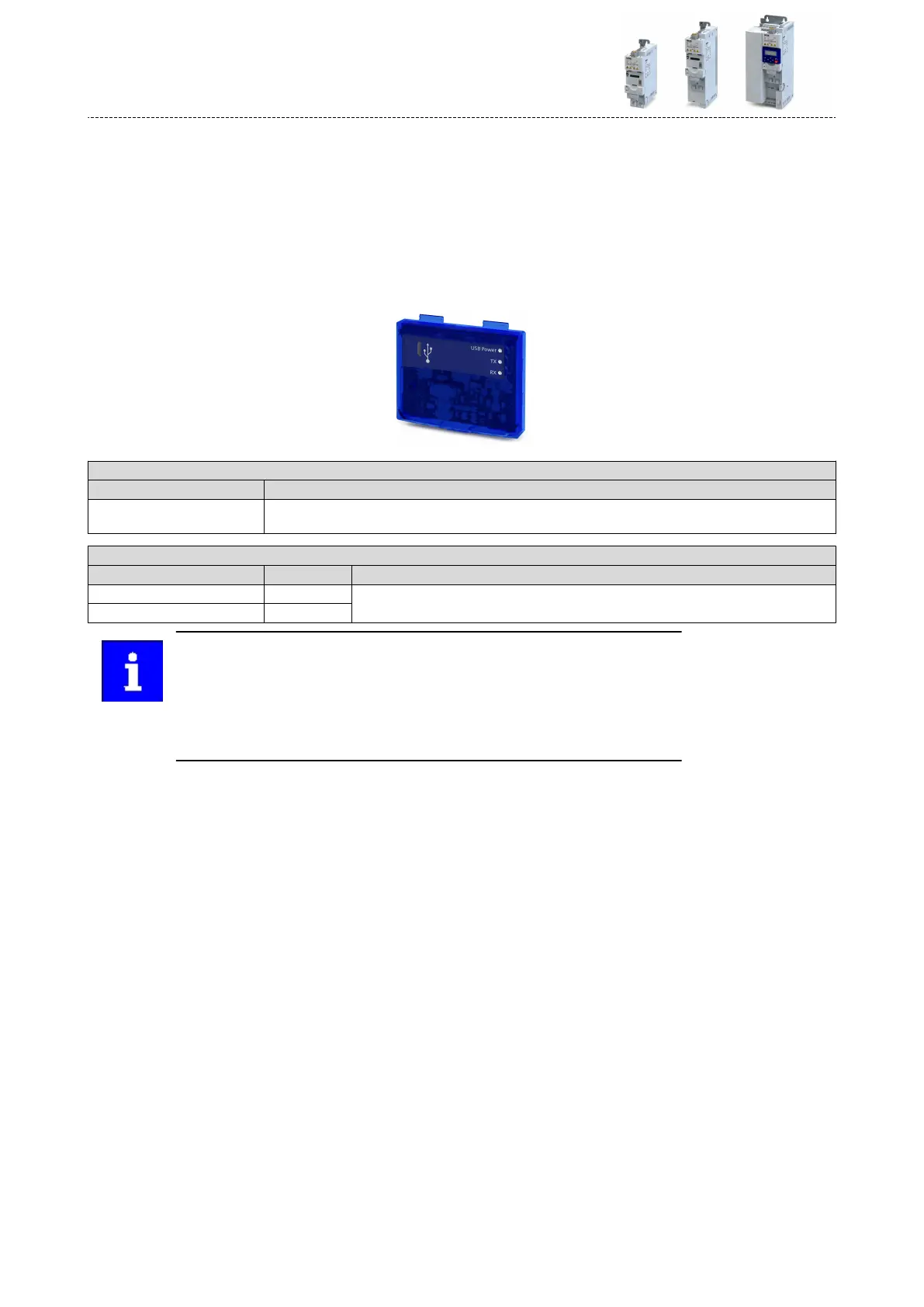

Lenze i550 Series Project Planning Manual

USB module
Interface to the PC
The USB 2.0‑connecng cable is used to connect the inverter with a PC with the "EASY
Starter" Lenze Engineering Tool. The "EASY Starter" serves to congure the inverter via graphi-
cal interfaces. They create diagnoscs with trend funcons or monitor parameter values.
Parameterising without supplying the inverter with voltage: If you connect the inverter
directly to the PC without a hub, the USB interface of the PC is sucient for the voltage supply
in many cases.
USB module
Order code Type
I5MADU0000000S
Parameter seng without voltage supply of the inverter is possible.
USB 2.0 connecng cable required
Connecng cable
Order code Length Type
EWL0085/S 3 m
USB 2.0‑connecng cable (A-plug to micro B-plug)
EWL0086/S 5 m
Inverters with network opon EtherCAT, PROFINET or EtherNET/IP must be sup-
plied with an addional voltage for seng parameters if a connecon cable lon-
ger than 3 m is used.
Please observe the following for USB modules labelled as "PRE-SERIES": Inver-
ters with network opon EtherCAT, PROFINET or EtherNET/IP must always be
supplied with an addional voltage for seng parameters.
Accessories
Operaon and diagnoscs
USB module
240

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
