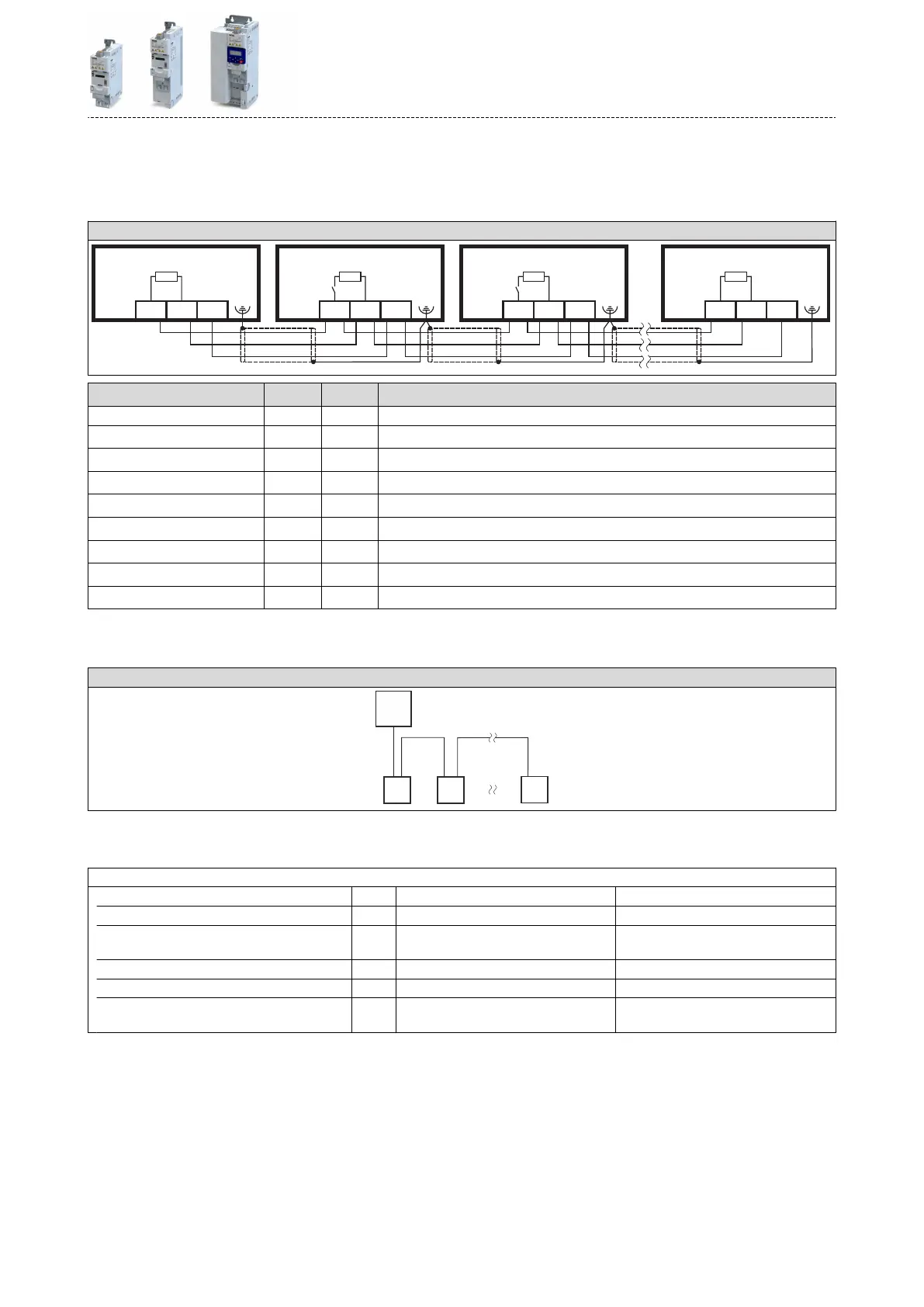

Lenze i550 Series Project Planning Manual

Networks
CANopen
Typical topologies
Line
A1 A2 A3 An
X216 X216 X216 X216
120 120 120 120
CGCGCGCG CLCLCLCL CHCHCHCH
R R R R
Terminal descripon CANopen
Connecon X216
Connecon type pluggable double spring terminal
Max. cable cross-secon mm² 2.5
Max. cable cross-secon AWG 12
Stripping length mm 10
Stripping length inch 0.39
Tightening torque Nm -
Tightening torque lb-in -
Required tool 0.4 x 2.5
EtherCAT
Typical topologies
Line
IN OUT
M
R
SDn
SD2
SD1
IN OUT IN
M Master
SD Slave Device
Bus-related informaon
Name EtherCAT
Communicaon medium Ethernet 100 Mbps, full duplex
Used for... Connecon of the inverter to an EtherCAT
network
Connecon system RJ45
Status display 2 LEDs
Connecon designaon In: X246
Out: X247
Informaon on electrical installaon
Networks
EtherCAT
63

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
