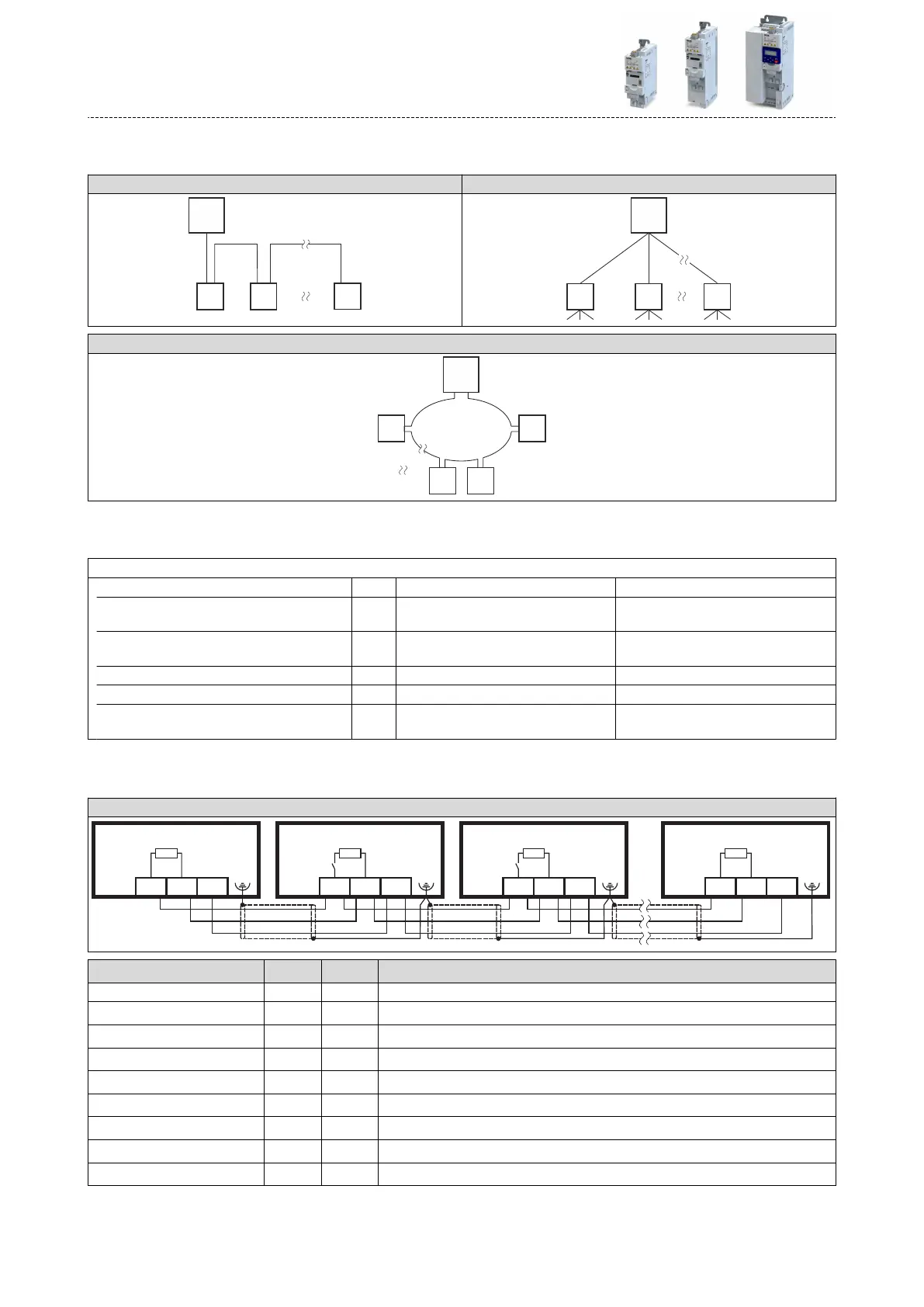

Lenze i550 Series Project Planning Manual

EtherNet/IP
Typical topologies
Line Tree
S
R
An
A2A1
S
SWn
SW2
SW1
Ring
S
An
A2
A1
A3
DLR
S Scanner SW Switch
A Adapter
Bus-related informaon
Name EtherNet/IP
Communicaon medium Ethernet 10 Mbps, 100 Mbps, half duplex,
full duplex
Used for... Connecon of the inverter to an Ether-
Net/IP network
Connecon system RJ45
Status display 2 LEDs
Connecon designaon In: X266
Out: X267
Modbus RTU
Typical topologies
Line
A1 A2 A3 An
X216 X216 X216 X216
120 120 120 120
COM COM COM COM
TB TB TB TB
TA TA TA TA
Terminal descripon Modbus RTU
Connecon X216
Connecon type pluggable double spring terminal
Max. cable cross-secon mm² 2.5
Max. cable cross-secon AWG 12
Stripping length mm 10
Stripping length inch 0.39
Tightening torque Nm -
Tightening torque lb-in -
Required tool 0.4 x 2.5
Informaon on electrical installaon
Networks
Modbus RTU
64

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
