Lenze i550 Series Project Planning Manual

PROFINET

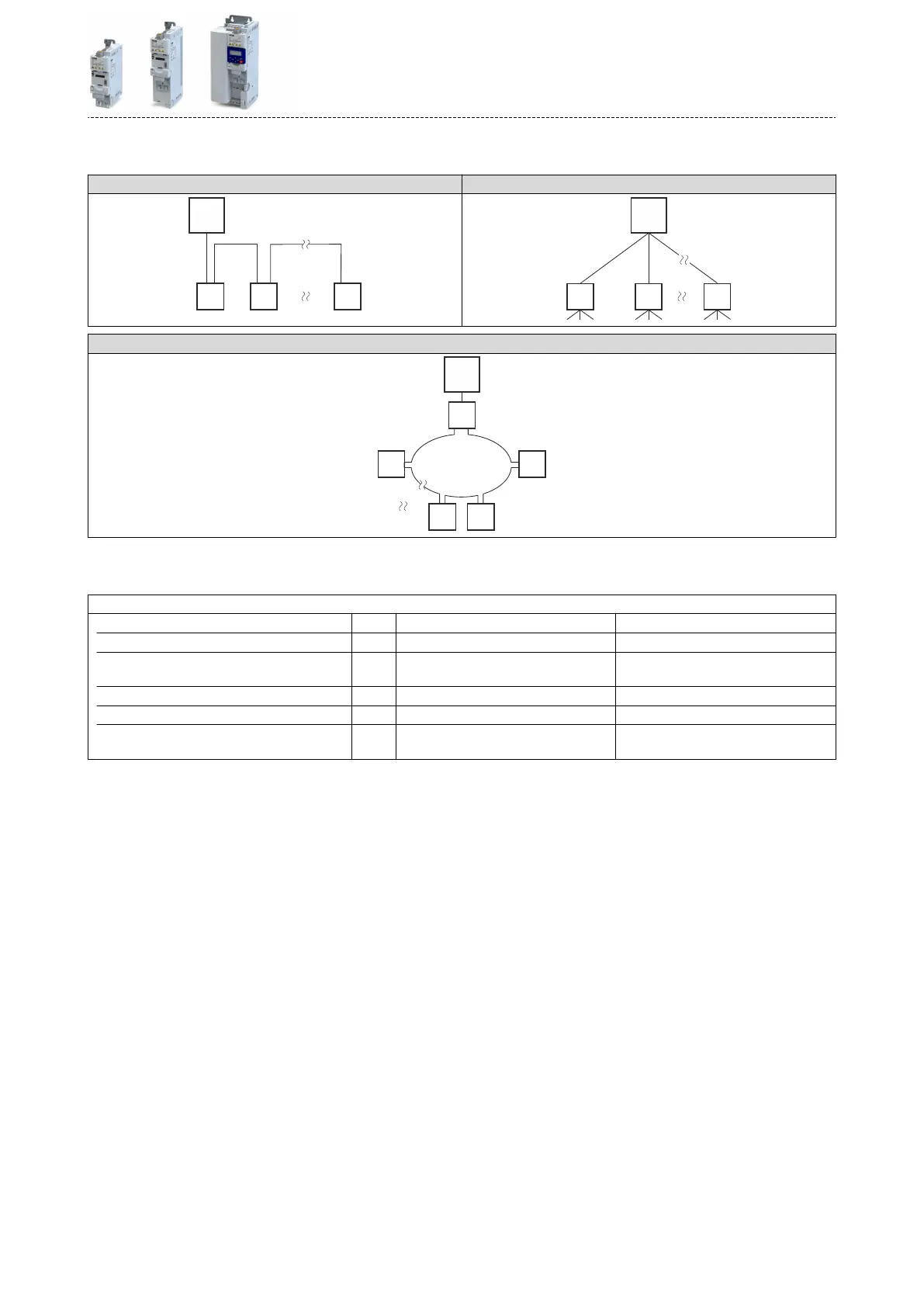

Typical topologies
Line Tree
C
R
Dn
D2D1
C
SWn
SW2
SW1
Ring
C
Dn
D2
D1
D3
R
SW
C IO controller SW Switch SCALANCE (MRP capable)
D IO device R Redundant domain
Bus-related informaon
Name PROFINET RT
Communicaon medium Ethernet 100 Mbps, full duplex
Used for... Connecon of the inverter to a PROFINET
network
Connecon system RJ45
Status display 2 LEDs
Connecon designaon In: X256
Out: X257
Informaon on electrical installaon
Networks
PROFINET
67

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
