Lenze L-force 8400 BaseLine D User Manual

Firmware 03.00 - DMS EN 5.0 - 07/2009 L 117
8400 BaseLine D | Software Manual
I/O terminals
Digital inputs
6.2.3 System block "LS_DigitalInput"
The system block LS_DigitalInput displays the digital inputs in the function block editor.
A total of four digital inputs DigIn1 ... DigIn4 can be parameterised. For each of the
processing functions, the terminal function can be inverted with C114
The status can be
queried via code C443
at the input and output of the processing function.
Output
DIS code | data type
Value/meaning
bCInh
C443/1 /2 | BOOL
Controller enable
Note:
In addition, there is a direct and non-configurable connection to the output stages
of the frequency inverter.
bIn1
C443/1 /2 | BOOL
...
Digital input DI1
bln4
C443/1 /2 | BOOL
Digital input DI4

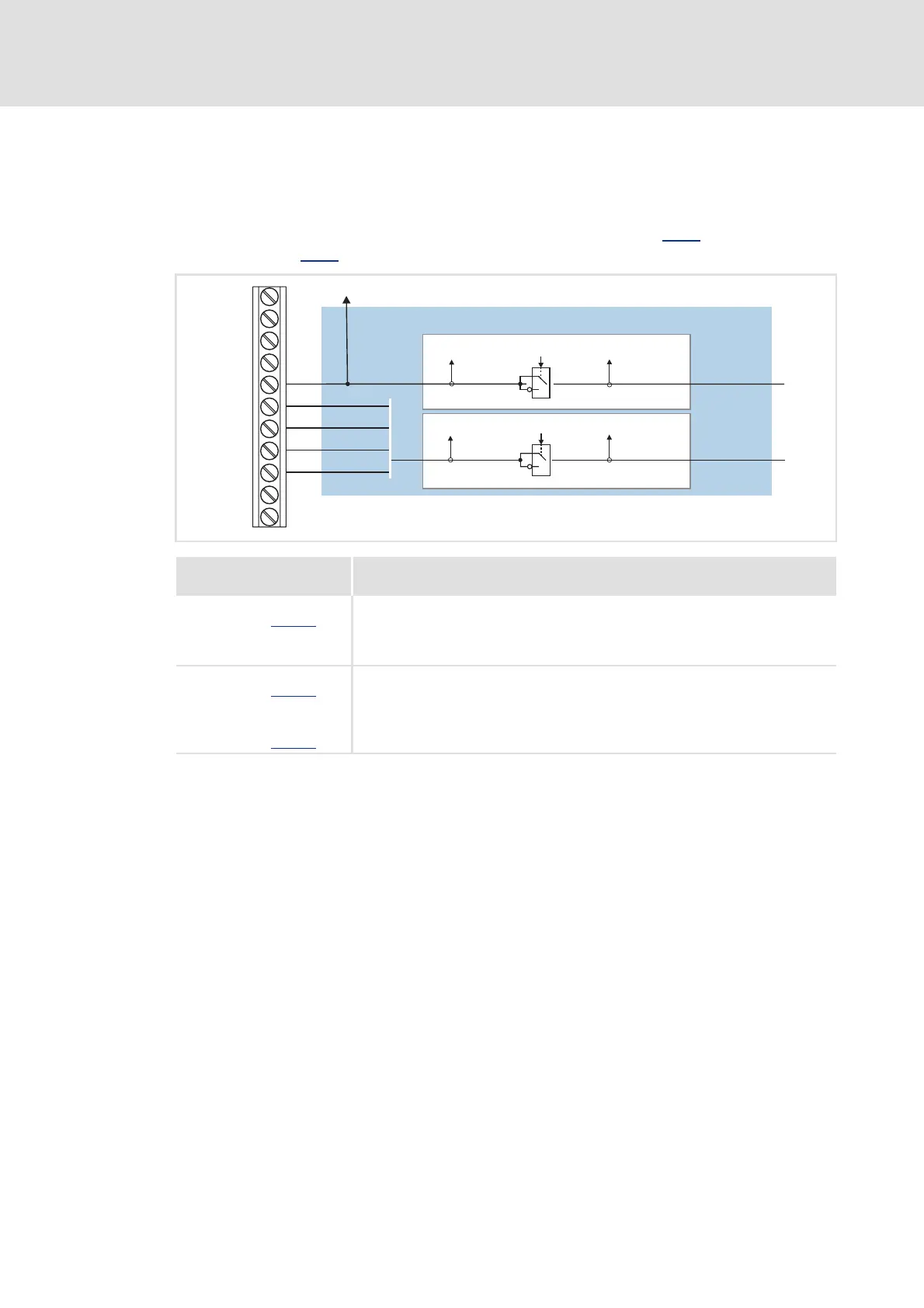

LS_DigitalInput
GND
A1U
AR
12I
RFR
DI1
DI2
DI3
DI4
24E
DO1
X4
bCInh
bIn1 ... bIn4
Bit 0 ... 3
Bit 1
Bit 0 ... 3
Bit 1
C443/2
C114
0
1
C443/1
C443/1
C443/2
C114
0
1
