8400 BaseLine D | Software Manual
Error management
Error messages of the operating system
7.5 Error messages of the operating system
This chapter describes all error messages of the controller operating system and possible
causes & remedies.
 Tip!
The error messages are also saved in the logbook in chronological order. Logbook
( 124)
7.5.1 Error number

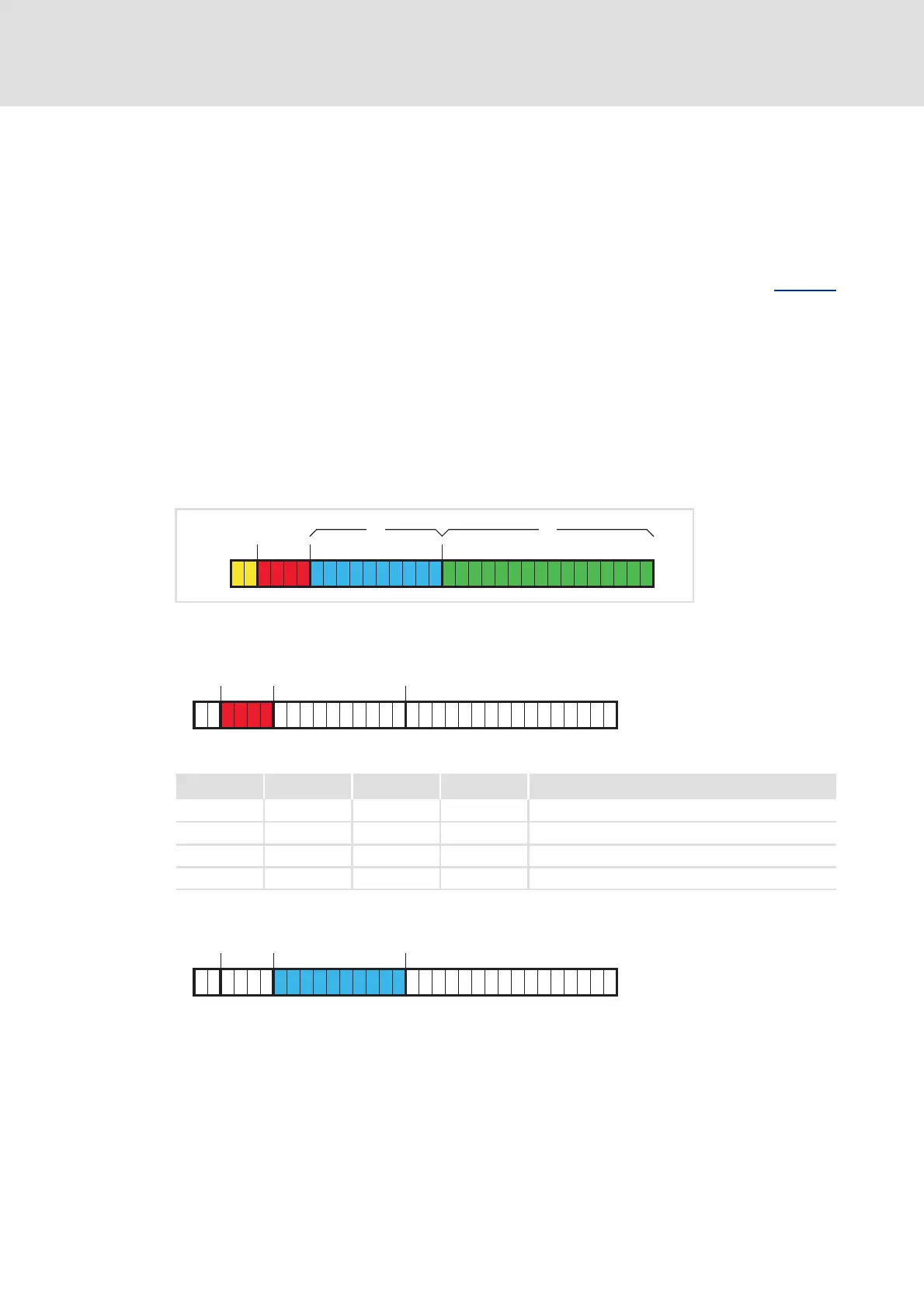

7.5.1.1 Structure of the error number (bit coding)
If an error occurs in the controller, the logbook saves a 32-bit value in the error format
which contains the following information:
[7-6] Structure of the error number
7.5.1.2 Error type
The error type is dynamically assigned by the operating system.
7.5.1.3 Error subject area
The subject area indicates the internal "function unit" of the controller in which the error
occurred.
 Reserved
 Error type
 Error subject area
 Error ID
210 3
Bit
162526
31
015
29
30
Bit 29 Bit 28 Bit 27 Bit 26 Meaning
0 0 0 0 0: No response
0 0 0 1 1: Pulse inhibit fault
00102: Trouble
0 1 0 0 4: Warning locked
Bit
162526
31
015
29
30
Bit
162526
31
015
29
30
