8400 BaseLine D | Software Manual
Product description
Internal Keypad
18 L Firmware 03.00 - DMS EN 5.0 - 07/2009
2.4 Internal Keypad

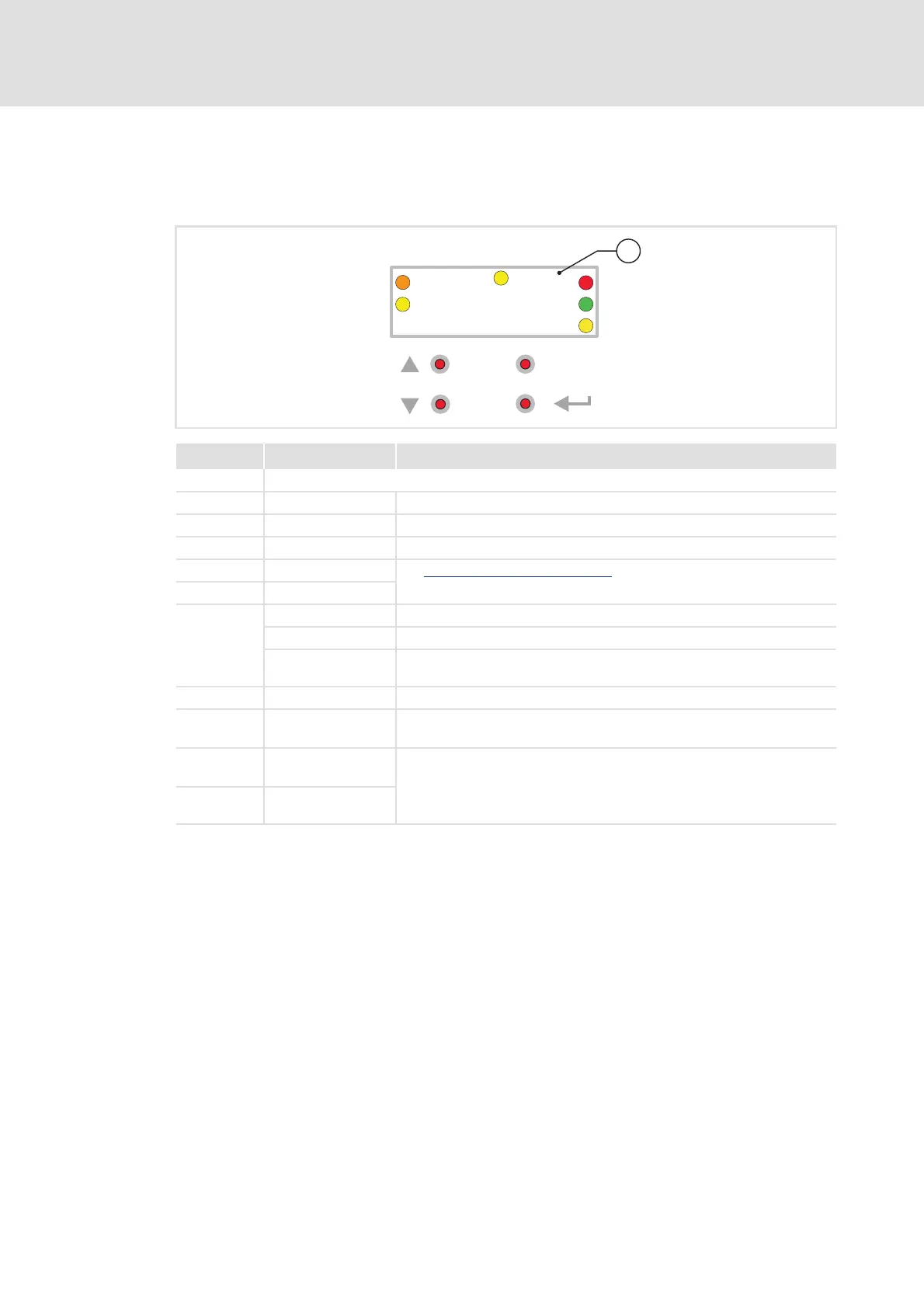

Display elements and control panel
Symbol Information Meaning
c 4-character display with LEDs (A ... F)
A orange Set current/torque limit is reached
B yellow Minus sign for identifying the negative numbers with more than 3 digits.
C yellow User-LED, can be configured via C621/42
D red See Signalling of the LEDs "D" and "E"
( 24)
E green
F yellow Direction of rotation, CCW rotation
Off Rotational direction CW
blinking Commanded direction does not (yet) equal the actual direction - for example
during reversing
ESC Escape key back
↵
Enter key Short: Next / confirmation
3 seconds: Save all parameters
Navigation key,
upwards
Short:
Navigation in the menu level and parameter level and parameter editing
Long (> 2 seconds):
Fast scrolling function
Navigation key,
downwards
8888
B
ESC
C
D
E
F
A
1
