8400 BaseLine D | Software Manual
Commissioning
Commissioning of the drive application with the »Engineer«
32 L Firmware 03.00 - DMS EN 5.0 - 07/2009
3.4 Commissioning of the drive application with the »Engineer«
The focus here is to commission a simple system constellation with a few components (see
the illustration below). During the step-by-step instructions, you will get more information
which is suitable for commissioning higher requirements.

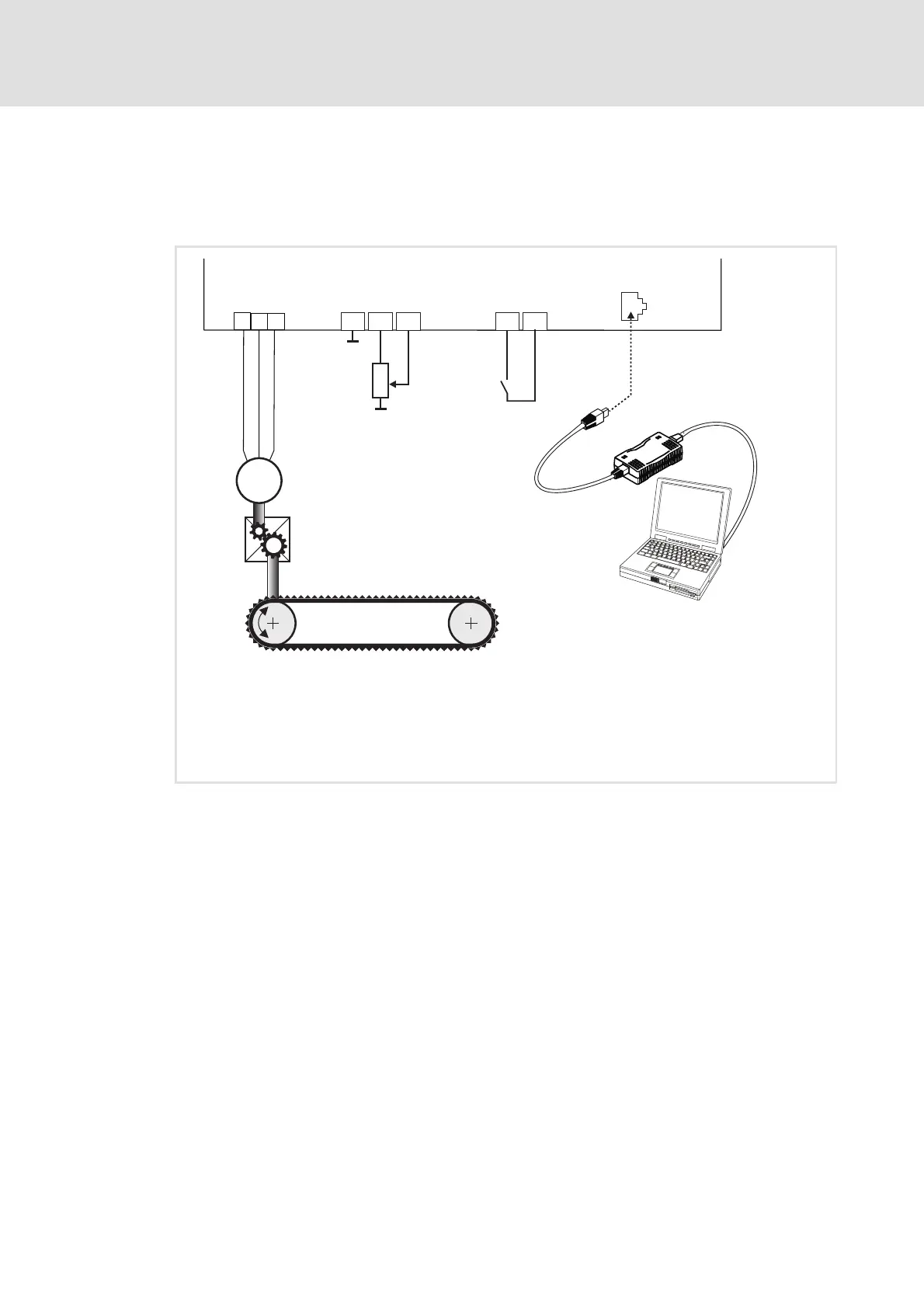

[3-4] Block diagram for wiring the commissioning example for the drive application
 Tip!
Execute the following subchapters step by step.
• Control terminals at plug connector X4:
–GND, ground potential for analog and digital signals
–AR, reference voltage (10 V) for analog signals
–A1U, input 1 for analog signals (slider of the setpoint potentiometer R)
–RFR, controller enable (CINH)
• Parameter setting and diagnostic terminal X6:
–Communication between PC and controller
V
U
W
X4
X6
RFR 12I
A1U
ARGND
M
3~
i
RFR
8400 BaseLine
X61
X6
R
X4
