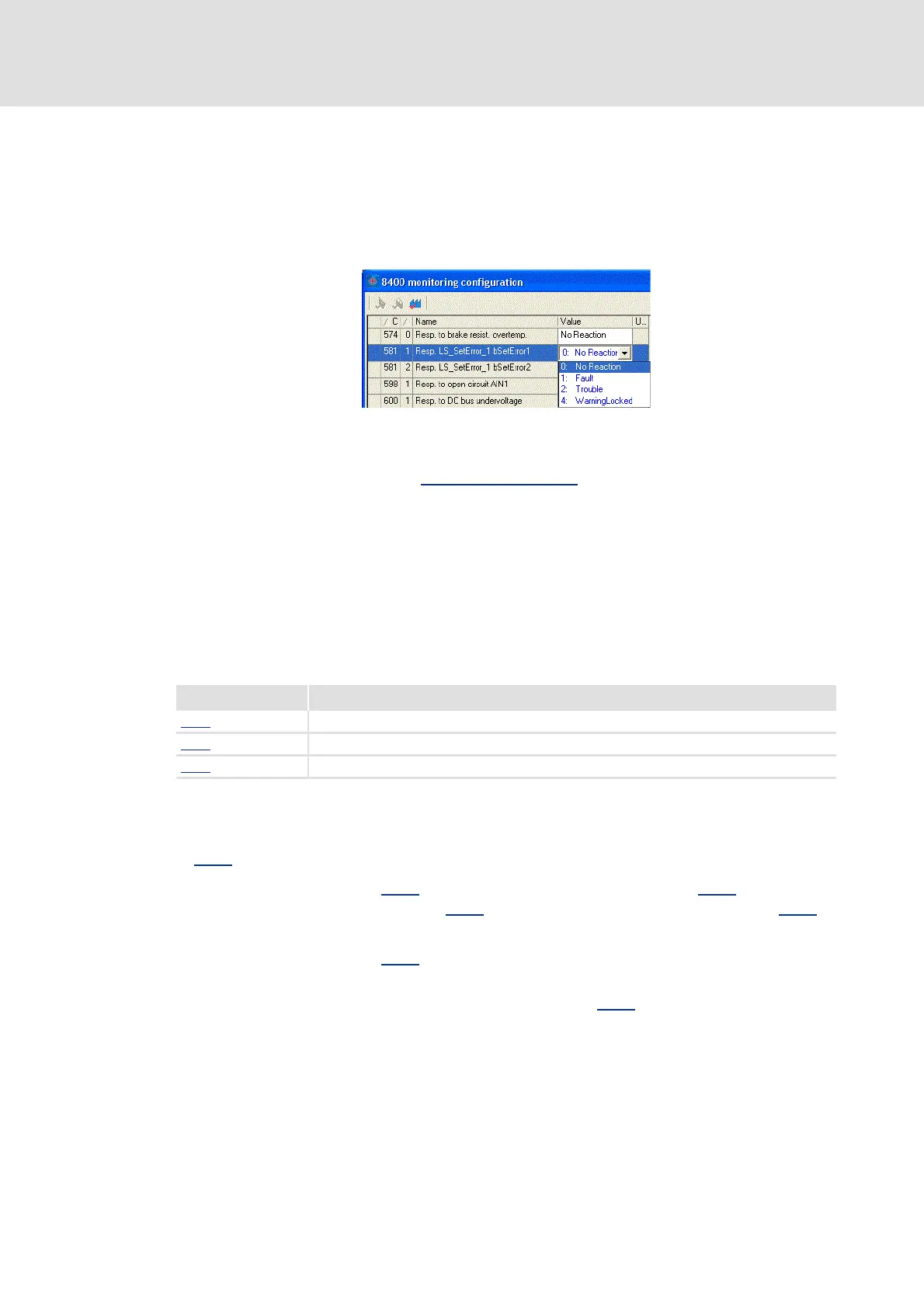

8400 BaseLine D | Software Manual
Error management
Monitoring
128 L Firmware 03.00 - DMS EN 5.0 - 07/2009
7.4.1 Setting the error response
When a monitoring function responds, the response set for this monitoring function
(troubleQSP, warning, fault, etc.) will be activated.
For many monitoring functions the response can be individually parameterised via
parameters.
Tip!
The table in chapter "Short overview (A-Z)
" contains the error messages for
which the response can be set
( 132) .
Warning thresholds
Some of the monitoring functions are activated if a defined warning threshold (e.g.
temperature) has been exceeded.
The corresponding preset threshold values can be changed via the following
parameters:
7.4.2 Monitoring of the device utilisation
In C064
, the device utilisation (i x t) over the last 180 seconds is displayed in [%].
If the value displayed in C064
exceeds the warning threshold set in C123, the error
message "Device utilisation Ixt > C123
" is output and the error response set in C604
occurs (default setting: "Warning").
If the value displayed in C064
exceeds 100 %, the error message "device utilisation Ixt
> 100 %" is output and the error response "fault" occurs.
– The error can only be reset if the value displayed in C064
is < 95 % again.
Parameter INFO
C120
Motor overload protection (I²xt)
C123
Device util. warning threshold
C174
Undervoltage (LU) threshold
