8400 BaseLine D | Software Manual
Commissioning
Commissioning of the drive application with the »Engineer«
36 L Firmware 03.00 - DMS EN 5.0 - 07/2009

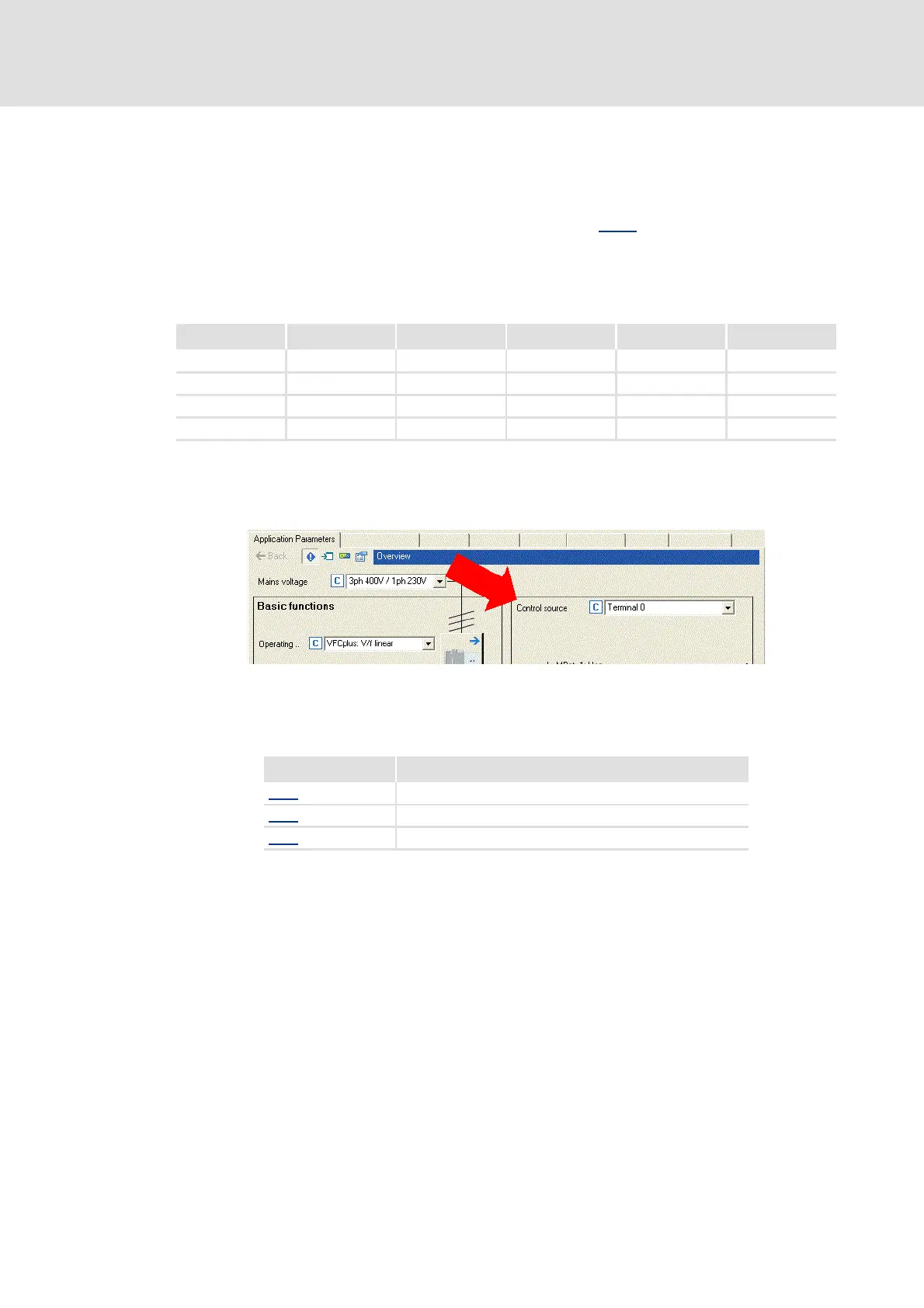

3.4.5 Select control source
In this section, the origin of the signal source of the main setpoint is set. The selection of
the signal source defines how the set technology application is to be controlled. On the
"Application parameter" tab, for instance, (or with code C007
) the main setpoint can be
defined as constant value via a digital input (terminal control).
The following options are available:
 Terminal control
 Control via keypad / PC
– Selection 20, keypad
– Selection 21, PC
 In the commissioning example, the control source "Terminals 0" (Lenze setting) is
selected (see arrow above).
Important parameters
Selection Name DI1 DI2 DI3 DI4
10 Terminal 0 JOG 1/3 JOG 2/3 DCB CCW
12 Terminal 2 JOG 1/3 JOG 2/3 QSP CCW
14 Terminal 11 CCW DCB MPotUp MPotDown
16 Terminal 16 JOG 1/3 JOG 2/3 CwQSP CcwQSP
Parameter INFO
C007
Select control mode
C242
Operating mode, selection for PID controller
C806 Use motor potentiometer yes / no
