Firmware 03.00 - DMS EN 5.0 - 07/2009 L 169
8400 BaseLine D | Software Manual
Parameter reference
Structure of the parameter descriptions
10.1.1 Data type
The following data types are available for parameters:
10.1.2 Parameters with read-only access
Parameters for which the "write access" attribute has not been set can only be read and not
be changed by the user.

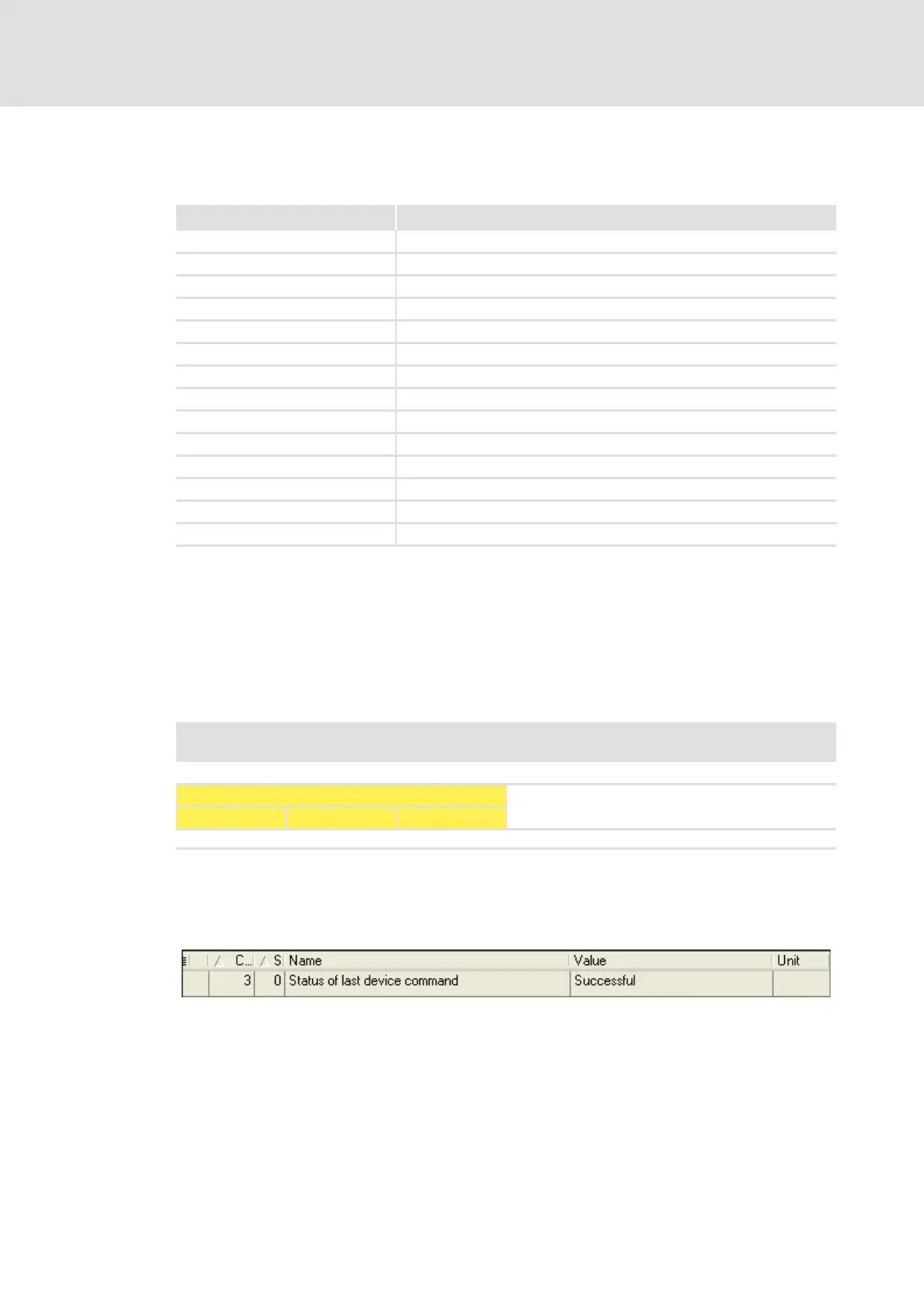

Description structure
Representation in the »Engineer«
The »Engineer« displays these parameters with a grey background or, with an online
connection, with a pale-yellow background:
Data type Meaning
INTEGER_8 8-bit value with sign
INTEGER_16 16-bit value with sign
INTEGER_32 32-bit value with sign
INTEGER_64 64-bit value with sign
UNSIGNED_8 8-bit value without sign
UNSIGNED_16 16-bit value without sign
UNSIGNED_32 32-bit value without sign
UNSIGNED_64 64-bit value without sign
FLOATING_POINT 32-bit floating point number
VISIBLE_STRING String of digits from printable digits
OCTET_STRING String of digits from any digits
BITFIELD_8 8-bit value, bit-coded
BITFIELD_16 16-bit value, bit-coded
BITFIELD_32 32-bit value, bit-coded
Parameter | Name:
Cxxxxx | _____________
Data type: _______
Index: _______
Description
Display range (min. value | unit | max. value)
; Read access Write access CINH PLC STOP No transfer COM MOT Scaling factor: 1
