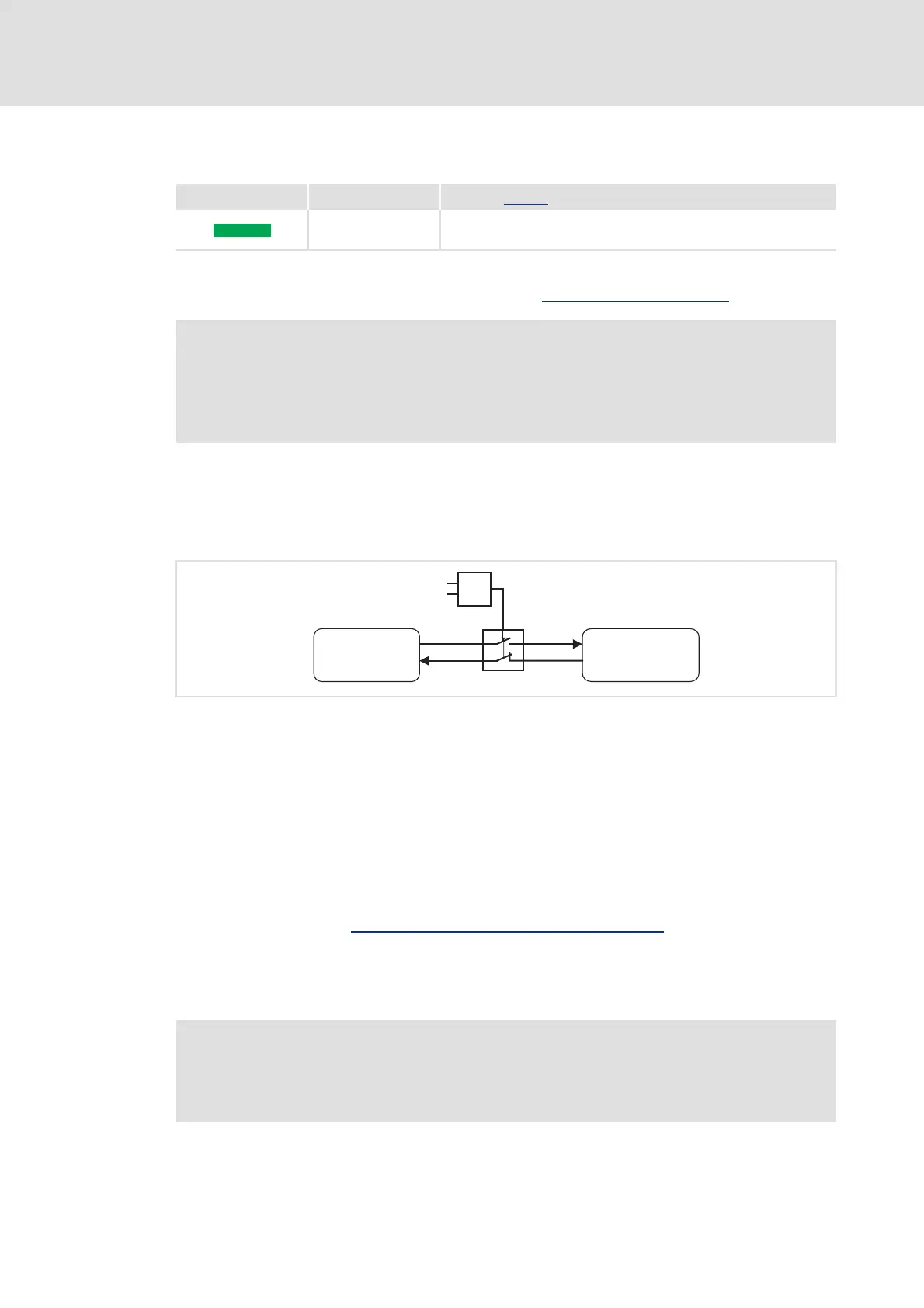

4.1.2 "MotorIdent" status
8400 frequency inverters are provided with a function that automatically identifies the
motor parameters, see the functional description Motor data identification
.
The "MotorIdent" device state can only be reached by the "SwitchON" device state and
jumps back to it after the action is completed.
The following illustration shows under which conditions the state change is possible or
completed:
[4-2] Conditions for the state change of the motor identification
While the motor parameters are being identified,
the application remains active
all system interfaces (IOs, bus systems, etc.) remain active
error monitoring remains active
the inverter is controlled independent of the setpoint sources.
Detailed description: Automatic motor parameter identification
( 90)
4.1.3 "SafeTorqueOff" state
LED DRIVE READY LED DRIVE ERROR Display in C00137
OFF MotorIdent
Stop!
During motor parameter identification, the controller does not respond to
setpoint changes or control processes, (e.g. speed setpoints, QSP, torque
limitations).
ReadyToSwitchON
3
C0002/23 = 1
CINH = 1
MotorIdent
2
&
Danger!
This state is only possible together with a connected safety module and an
existing power section supply.
