12. Appendix MMX8x4-HT series – User's Manual 193

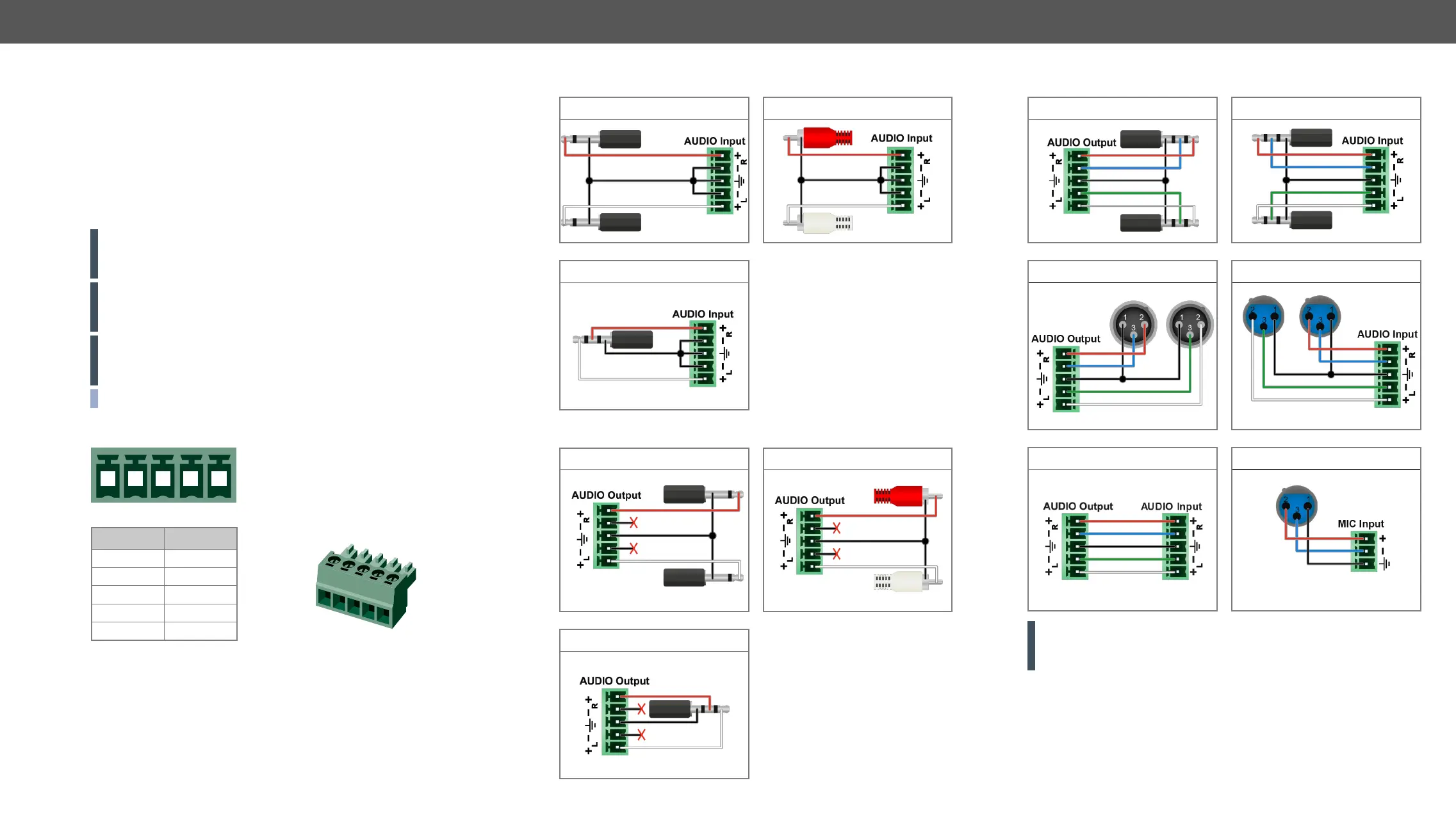

Cable Wiring Guide
Inputs and outputs of audio devices are symmetric or asymmetric.
The main advantage of the symmetric lines is the better protection
against the noise therefore, they are widely used in the professional
audio industry. Symmetric audio is most often referred to as balanced
audio, as opposed to asymmetric, which is referred to as unbalanced
connectors so we would like to help users assembling their own audio
cables. See the most common cases below.
ATTENTION! Symmetric and asymmetric lines can be linked with
passive accessories (e.g. special cables), but in this case half of
the line level is lost.
ATTENTION! There are numerous types of regularly used connector
and cable types to connect audio devices. Please always make sure
ATTENTION! Never join the phase-inverted (negative, cold or -)
poles (either right and left) to the ground or to each other on the
output side, as this can damage the unit.
INFO: Use a galvanic isolation in case of a ground loop.
The Pinout of the 5-pole Phoenix Connector
Pin nr. Signal
1
2
3 Ground
4 Right-
5 Right+
Compatible Plug Type
Phoenix
®
1 2 3 4 5
From Unbalanced Output to Balanced Input
2 x RCA - Phoenix
From Balanced Output to Unbalanced Input
Phoenix - 2 x RCA
From Balanced Output to Balanced Input
Phoenix - Phoenix
ATTENTION! Always check the correct wiring of the microphone
cable! Never apply phantom power with unbalanced cable, because
it can cause a damage!
Microphone cable should be shielded with 2x0.22mm conductor, max.
50m long.
