Advanced Analog Input Channel
This settings refers to the advanced analog audio signal.
1
3t
e
q
w
r

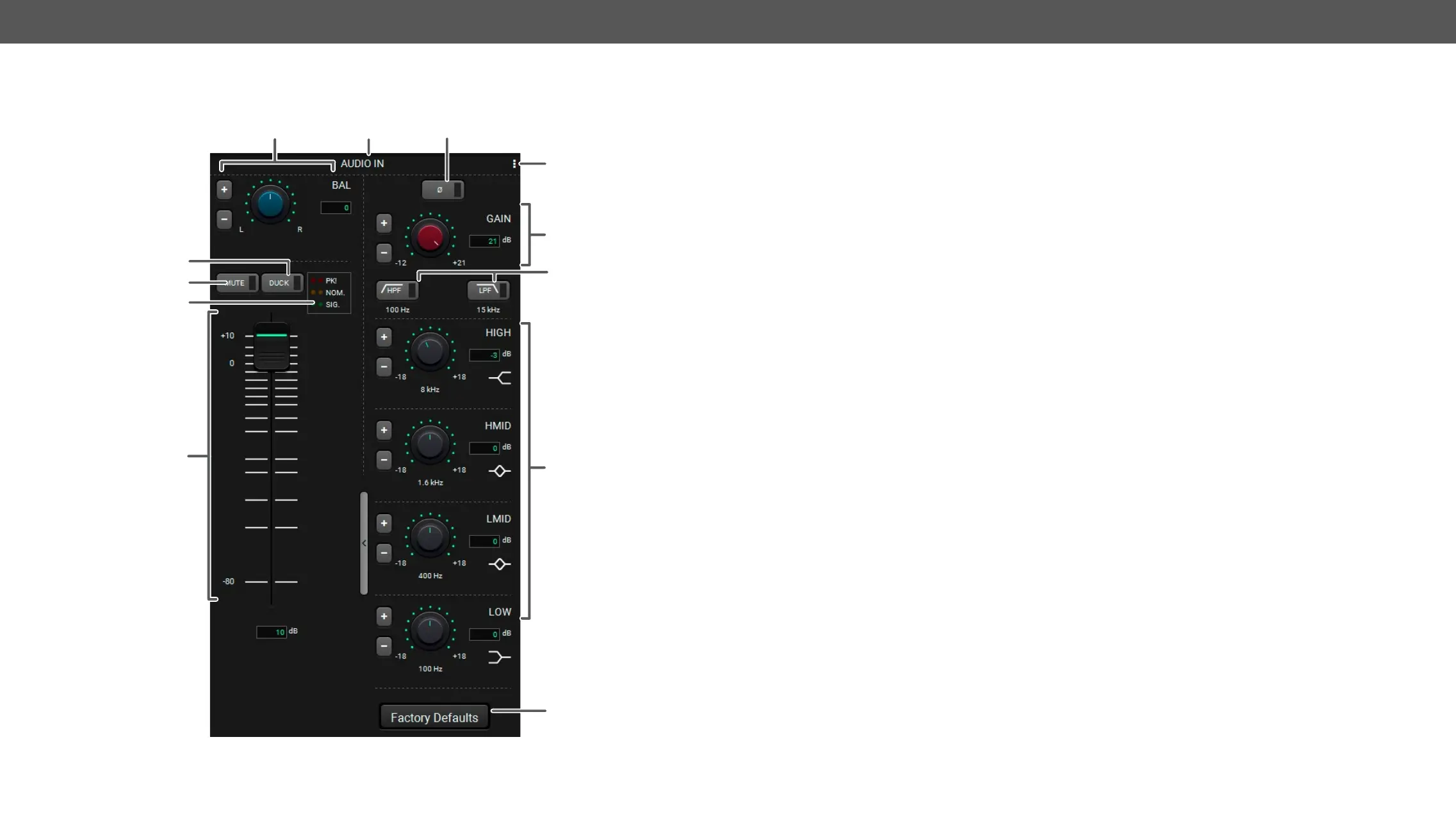

Legend of Embedded or Advanced Input Channel
#analogaudio#balancevolume#advancedaudio
1
Channel name Displays the channel name. All the settings below belongs to the channel.
2
Digital audio
selector menu
Drop-down menu for selecting the digital audio channel. For more details see
Digital Audio Selector Menu section.
3
Phase invert button It inverts the phase of the input signal.
4
Preset button Clicking on this button opens a Channel Preset window where the channel
presets can be saved, loaded or deleted. For more details see Channel Presets
section.
5
Gain section GAIN setting is for increase (or decrease) the input signal level, expressed in dB.
For more information see Gain Settings.
6
Sampling frequency
display
It shows the sampling frequency of digital audio.
7
button
button to toggle turn it on and off.
button to toggle turn it on and off.
8
HIGH, HMID, LMID,
LOW
section.
9
Factory defaults
restore button
Restore the factory default settings on the microphone channel. For more
details see Factory Default Settings.
q
Input volume fader Sets the volume of the input audio signal between -80dB and +10dB. It also
w
Signal indicator
chart
See more details in Panorama or Balance Settings section.
e
r
Duck button This is a voice activation feature, allowing the volume of the voice of a person
speaking into the microphone to be automatically focused, and the volume of
the rest of the sounds to be lowered as soon as the presenter starts speaking.
t
Balance section Balance can be set in this section. For more details, see Panorama or Balance
Settings.
